NVG 126-NP4 - Transfer Case



Transfer Case Encoder Motor

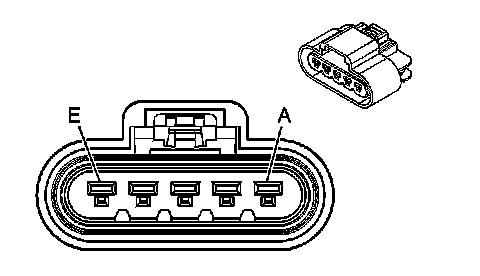

Transfer Case Encoder Motor:

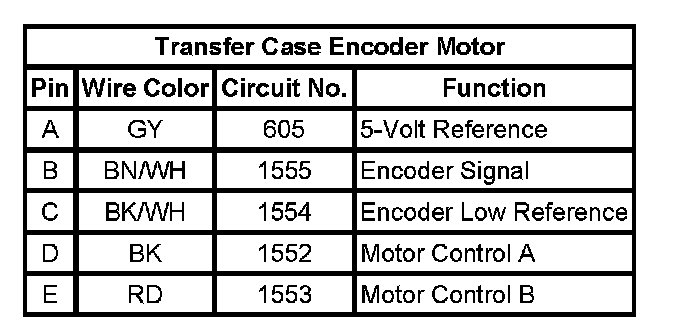

Transfer Case Encoder Motor:
