Instrument Panel Views
Instrument Panel Views

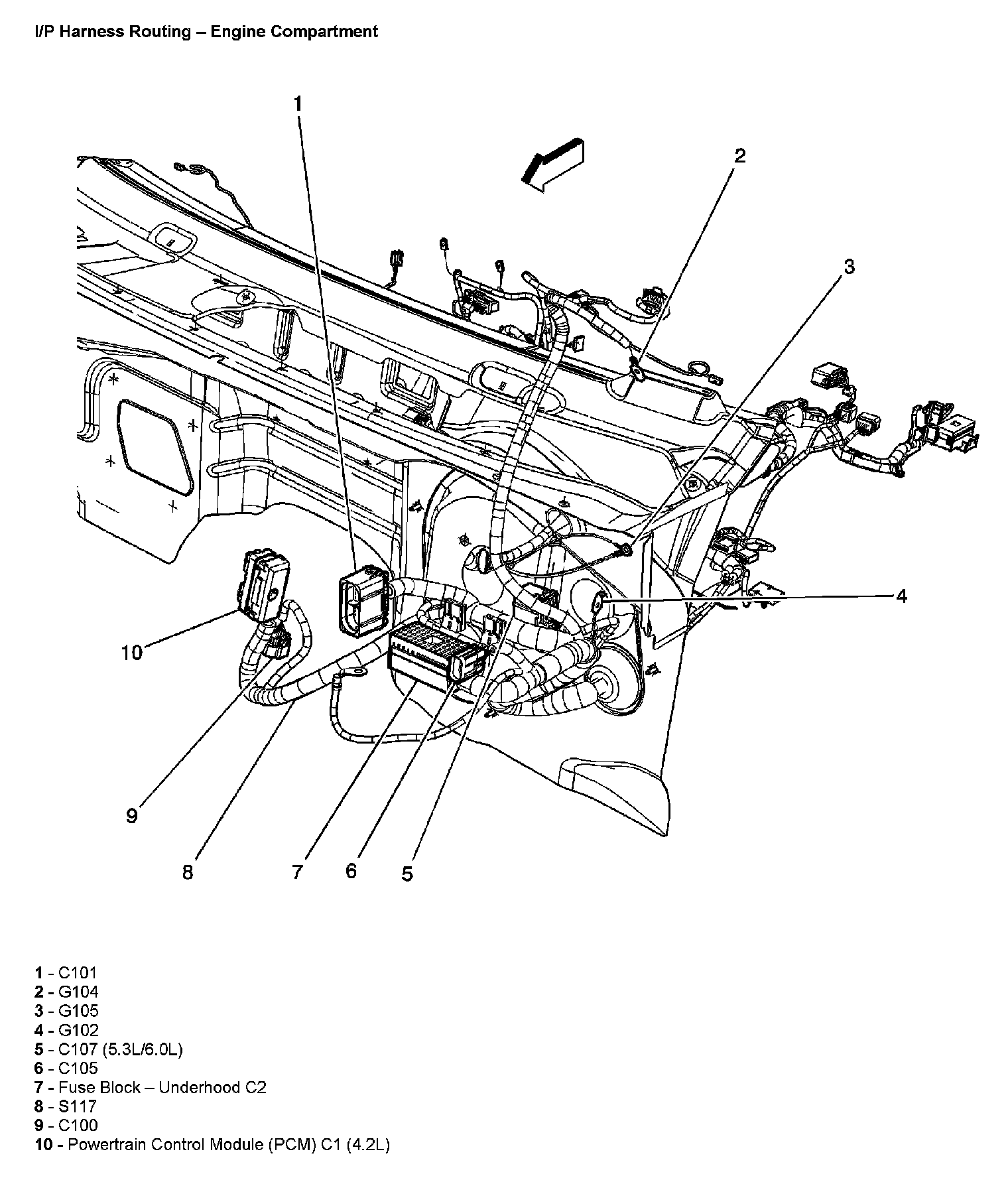

I/P Harness Routing - Engine Compartment:
I/P Harness Routing - Rear Of The I/P:
I/P Harness Routing - Front Of The I/P:
