Parking Brake Warning Switch: Locations

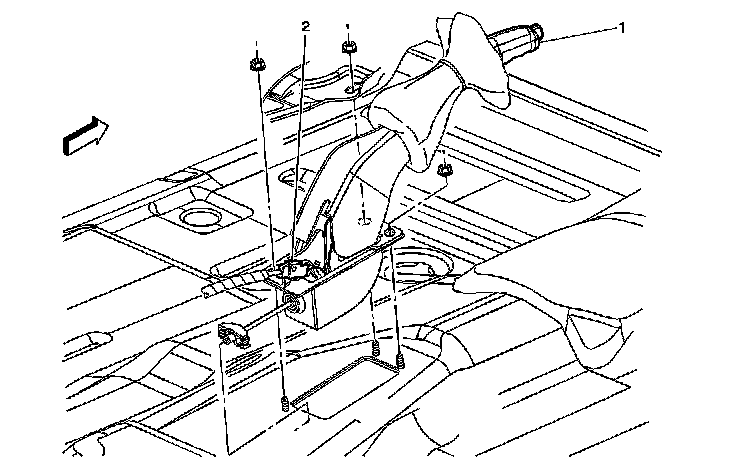

Hydraulic Brake Component Views
Park Brake Switch:
1
- Park Brake Lever Assembly
2
- Park Brake Switch
