Power and Ground Distribution
>>
Locations
>>
Ground Views
>>
G107
G107

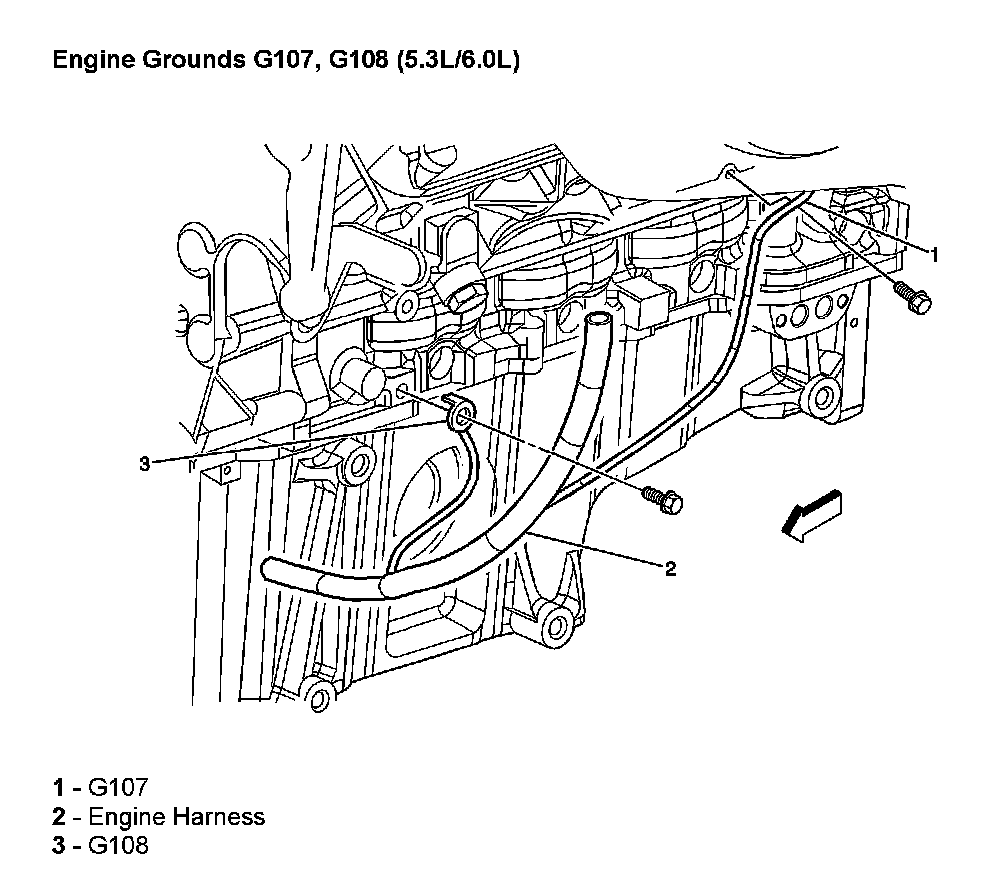

Engine Grounds G107, G108 (5.3L/6.0L):
