DTC 021
DTC 021
Circuit Description
The automatic level control sensor monitors the compressor relay coil control circuity for a short to ground.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC 021 Compressor Relay Circuit Short to Ground
Conditions for Running the DTC
The ignition is ON.
Conditions for Setting the DTC
This DTC is set when the automatic level control sensor detects the compressor relay coil control circuit is shorted to ground.
Action Taken When the DTC Sets
* The automatic level control sensor disables the compressor.
* The automatic level control sensor disables inflator functions.
* Lowering functions shall continue.
Conditions for Clearing the DTC
* The conditions that caused the DTC to set have been removed.
* The ignition has transitioned from OFF to ON.
Diagnostic Aids
* Compressor motor will run continuously.
* When this occurs, DTC 023 will be set.
Test Description

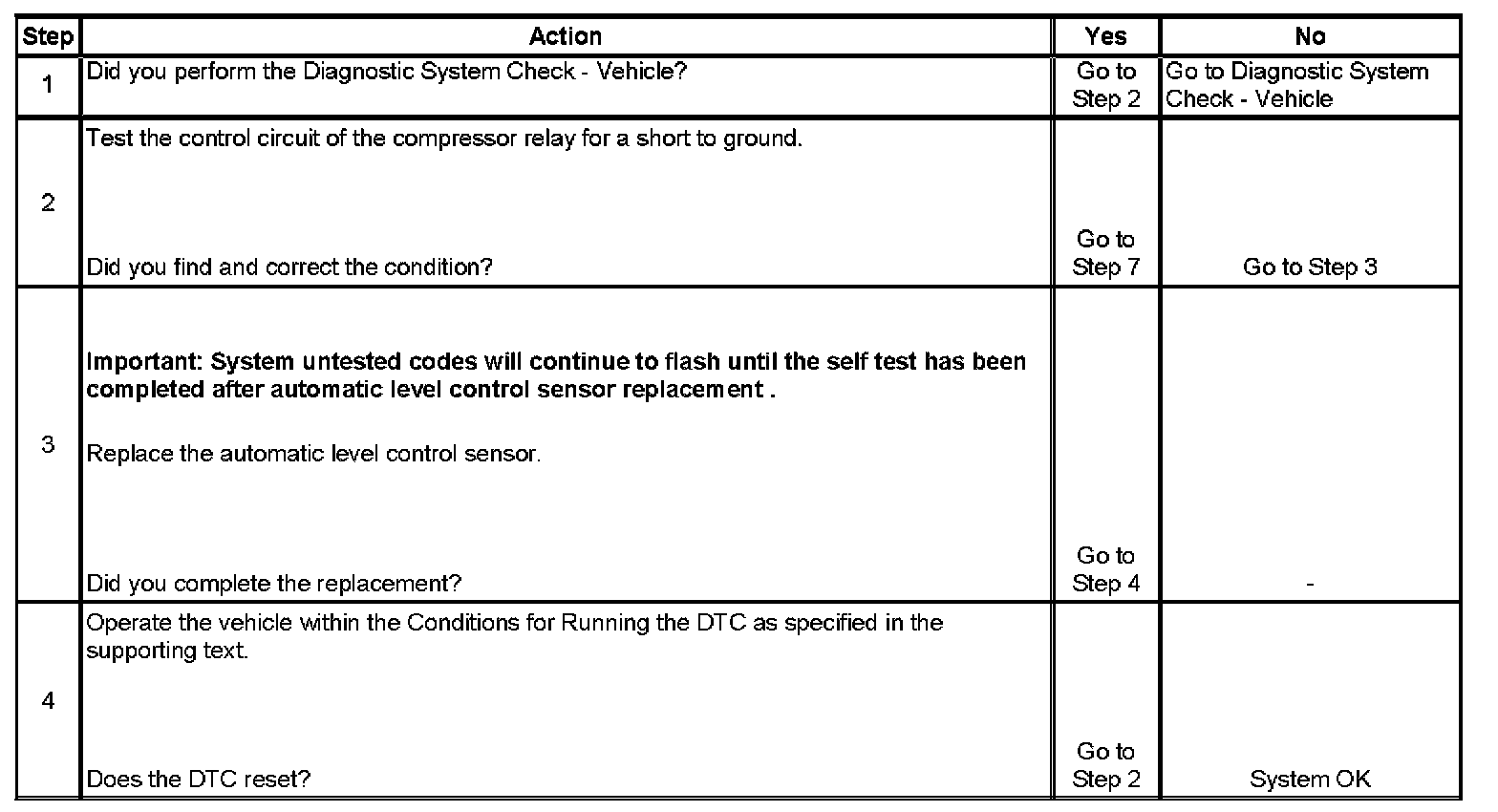

The numbers below refer to the step numbers on the diagnostic table.
2. This step tests for short to ground in compressor relay control circuit.
3. This step verifies that the automatic level control sensor is self tested after replacement.
