DTC 065

DTC 065

Circuit Description

The inflatable restraint passenger presence system (PPS) uses a silicone filled sensor pad located underneath the passenger seat foam cushion and is connected by a hose clamp to a pressure sensor. The weight of the occupant sitting in the front passenger seat is measured as a pressure change within the bladder by the pressure sensor. The pressure sensor is a 3-wire sensor consisting of a power, ground, and signal circuit. The PPS continually monitors itself and if a fault in this circuit occurs, DTC 065 will set. When the PPS detects this DTC within the PPS, it will notify the customer of the enable/disable status by turning ON the OFF indicator on the PASSENGER AIR BAG ON/OFF indicators. Then the PPS will communicate to the sensing and diagnostic module (SDM) through a non-class 2 communications circuit that a PPS fault is present. The SDM will then turn the AIR BAG indicator ON, and set DTC B0092 indicating a problem within the PPS and will suppress the deployment of the instrument panel (I/P) module.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC 065 PPS Sensor Circuit Out of Range

Conditions for Running the DTC

Ignition 1 voltage is within the normal operating voltage range.

Conditions for Setting the DTC

* The PPS detects the voltage at the PPS sensor signal is less than 0.05 volt or greater than 4.5 volts for 500 milliseconds.
* The PPS detects the voltage at the PPS sensor 5-volt reference is less than 4.5 volts or greater than 9.1 volts for 500 milliseconds.
* The PPS detects the amperage at the PPS sensor low reference is 25 ma or greater for 500 milliseconds.

Action Taken When the DTC Sets

* The PPS will set a DTC 065, then communicate with the SDM via non-class 2 circuit.
* The SDM will set DTC B0092.
* The SDM disables the I/P module deployment loop.
* The PPS will turn ON the passenger air bag status OFF indicator.
* The SDM commands the AIR BAG indicator ON via class 2 serial data.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.
* You issue a scan tool CLEAR DTCs command.
* A history DTC will clear once 255 malfunction-free ignition cycles have occurred.

Diagnostic Aids

The following can cause an intermittent condition:

* A short between the PPS sensor signal, 5-volt reference, and low reference circuits
* An open or high resistance between the PPS sensor signal, 5-volt reference, and low reference circuits
* Inspect the PPS sensor signal, 5-volt reference, and low reference circuits carefully for cutting and/or chafing.

Thoroughly inspect the wiring and the connectors. An incomplete inspection of the wiring and the connectors may result in a misdiagnosis, causing a part replacement with the reappearance of the malfunction. If an intermittent malfunction exists, refer to Testing for Intermittent Conditions and Poor Connections in Diagnostic Aids. Component Tests and General Diagnostics

Test Description

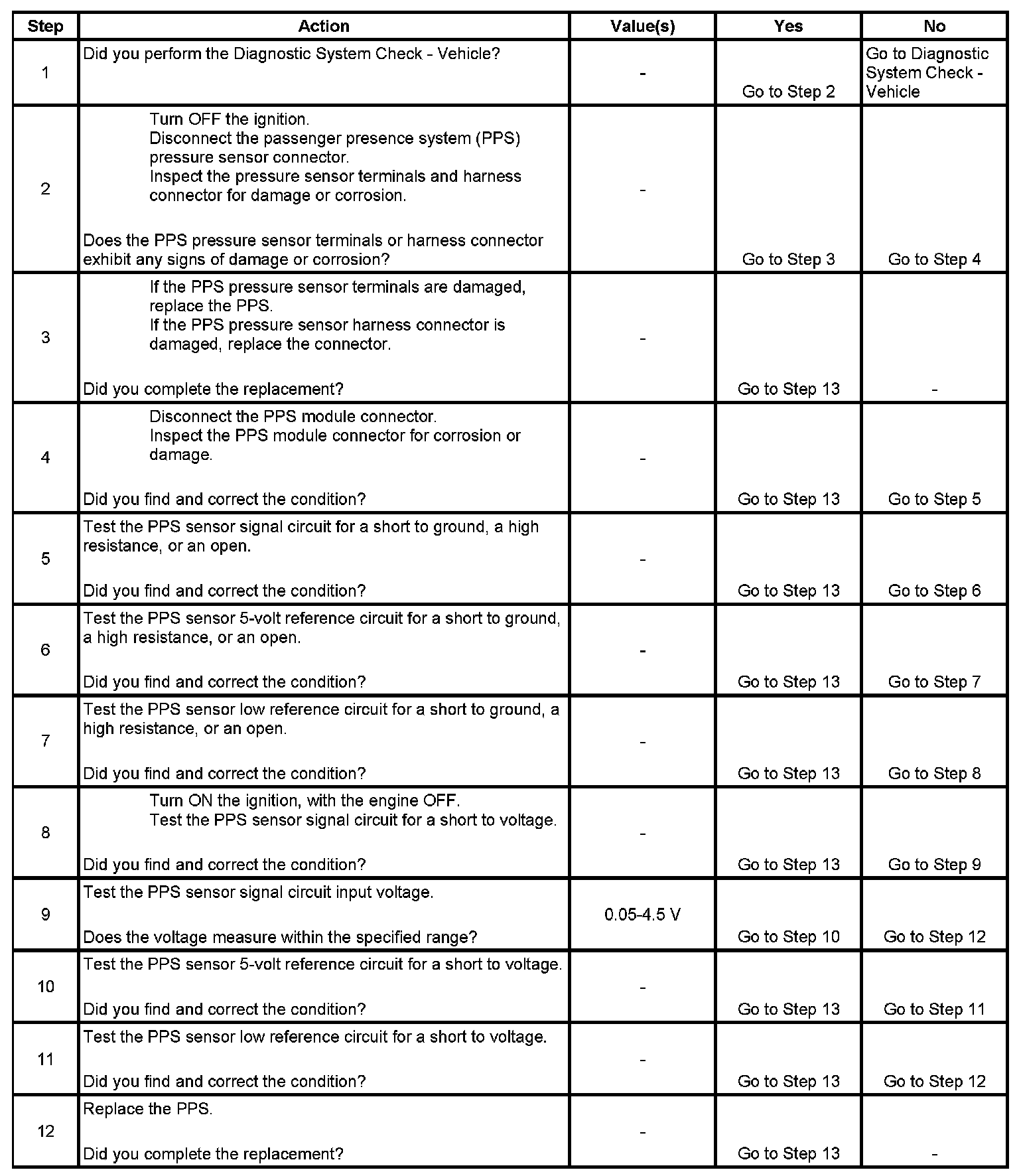

Step 1 - Step 12:

Step 13:

The numbers below refer to the step numbers on the diagnostic table.
2. This step inspects the PPS pressure sensor connector.
5. This step tests for a short to ground, a high resistance, or an open in the PPS sensor signal circuit.
6. This step tests for a short to ground, a high resistance, or an open in the PPS sensor 5-volt reference circuit.
7. This step tests for a short to ground, a high resistance, or an open in the PPS sensor low reference circuit.
8. This step tests for a short to voltage in the PPS sensor signal circuit.
9. This step tests the PPS sensor signal circuit input voltage range.
10 This step tests for a short to voltage in the PPS sensor 5-volt reference circuit.
11. This step tests for a short to voltage in the PPS sensor low reference circuit.
