Chevy Truck
>>
2007
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Door Switch
Door Switch
Lighting Systems Connector End Views

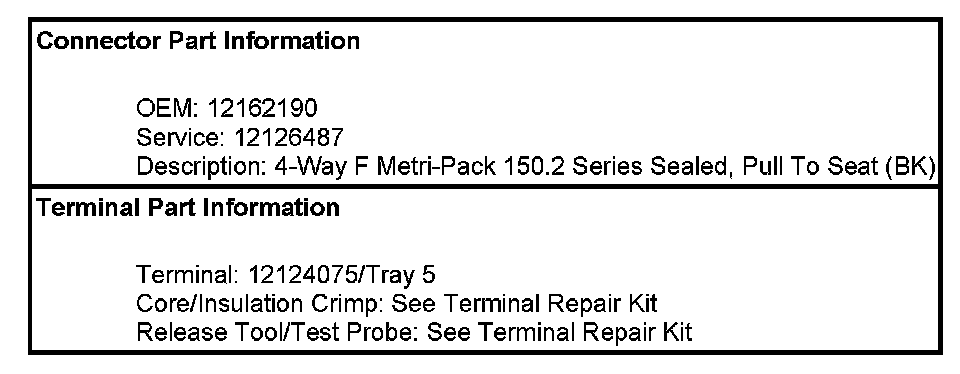

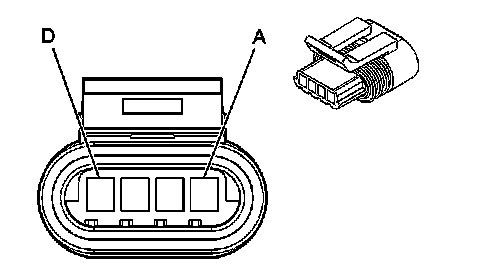

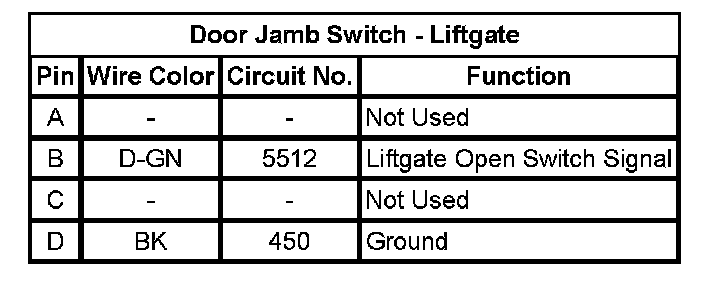

Door Jamb Switch - Liftgate
