Parking Brake Warning Switch: Service and Repair



Park Brake Warning Lamp Switch Replacement

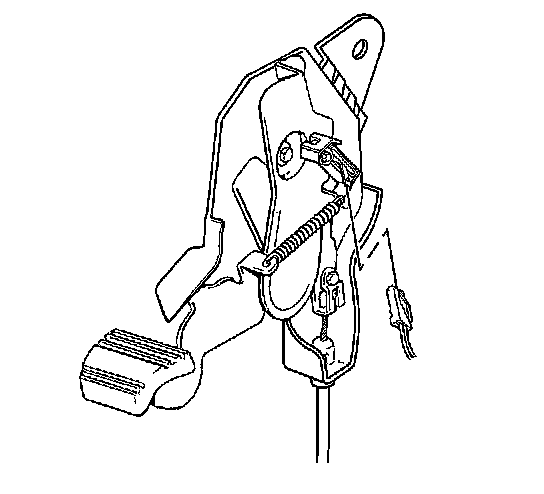

Removal Procedure

1. Remove the left cowl side panel.




2. Remove the park brake indicator switch electrical connector.
3. Remove the park brake indicator switch screw.
4. Remove the parking brake indicator switch.

Installation Procedure

1. Install the park brake indicator switch.

Notice: Refer to Fastener Notice.

2. Install the park brake indicator switch screw.

Tighten the screw to 3 N.m (27 lb in).




3. Install the park brake indicator switch electrical connector.
4. Install the left cowl side panel.
