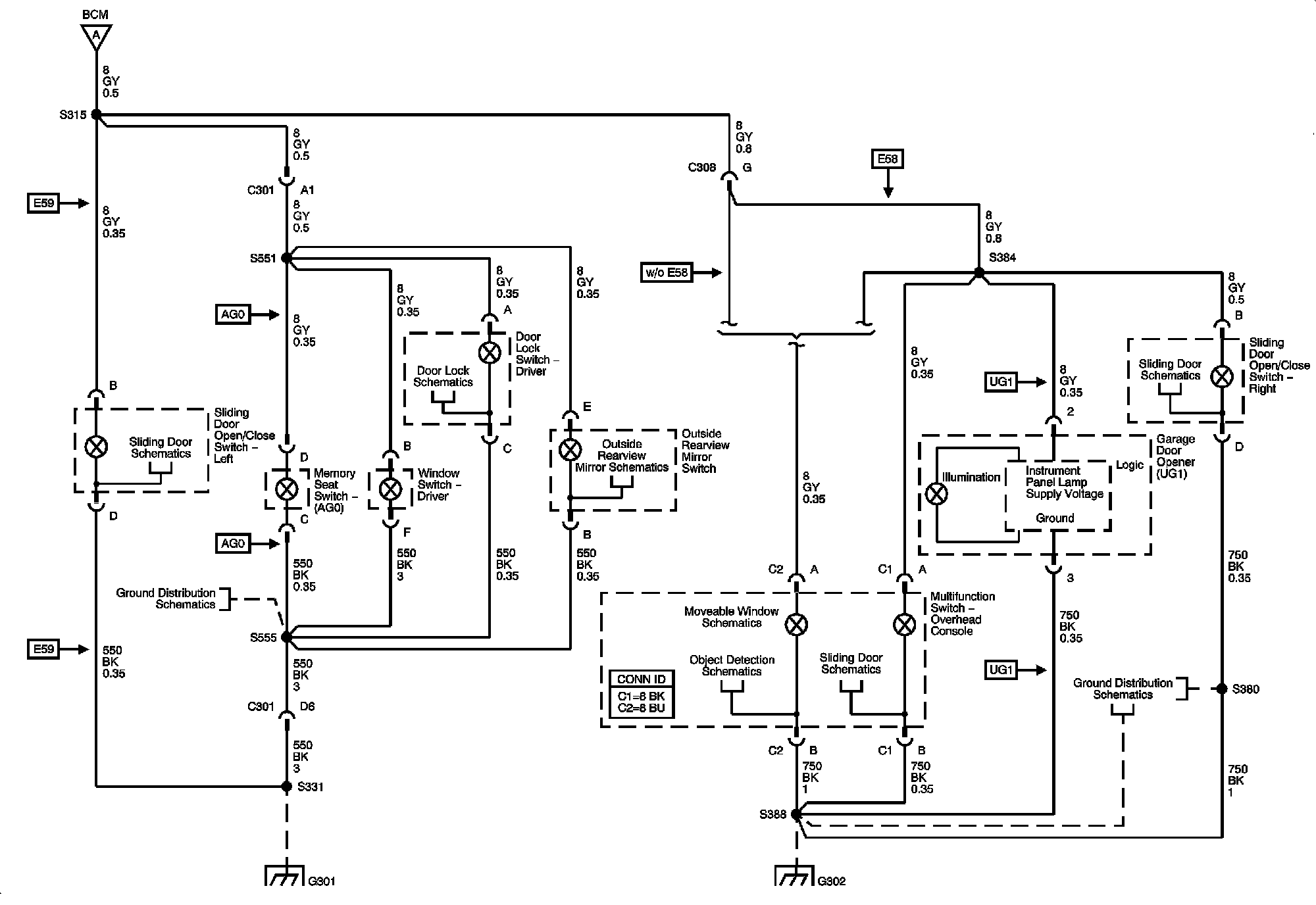

Interior Lights Dimming Diagram 2

Interior Lights Dimming Schematics

Left Door, Right B-Pillar, and Roof Lamps





Previous Diagram: Interior Lights Dimming Diagram 1

Locations:The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
