Brake Switch (Cruise Control)
Brake Switch (Cruise Control)

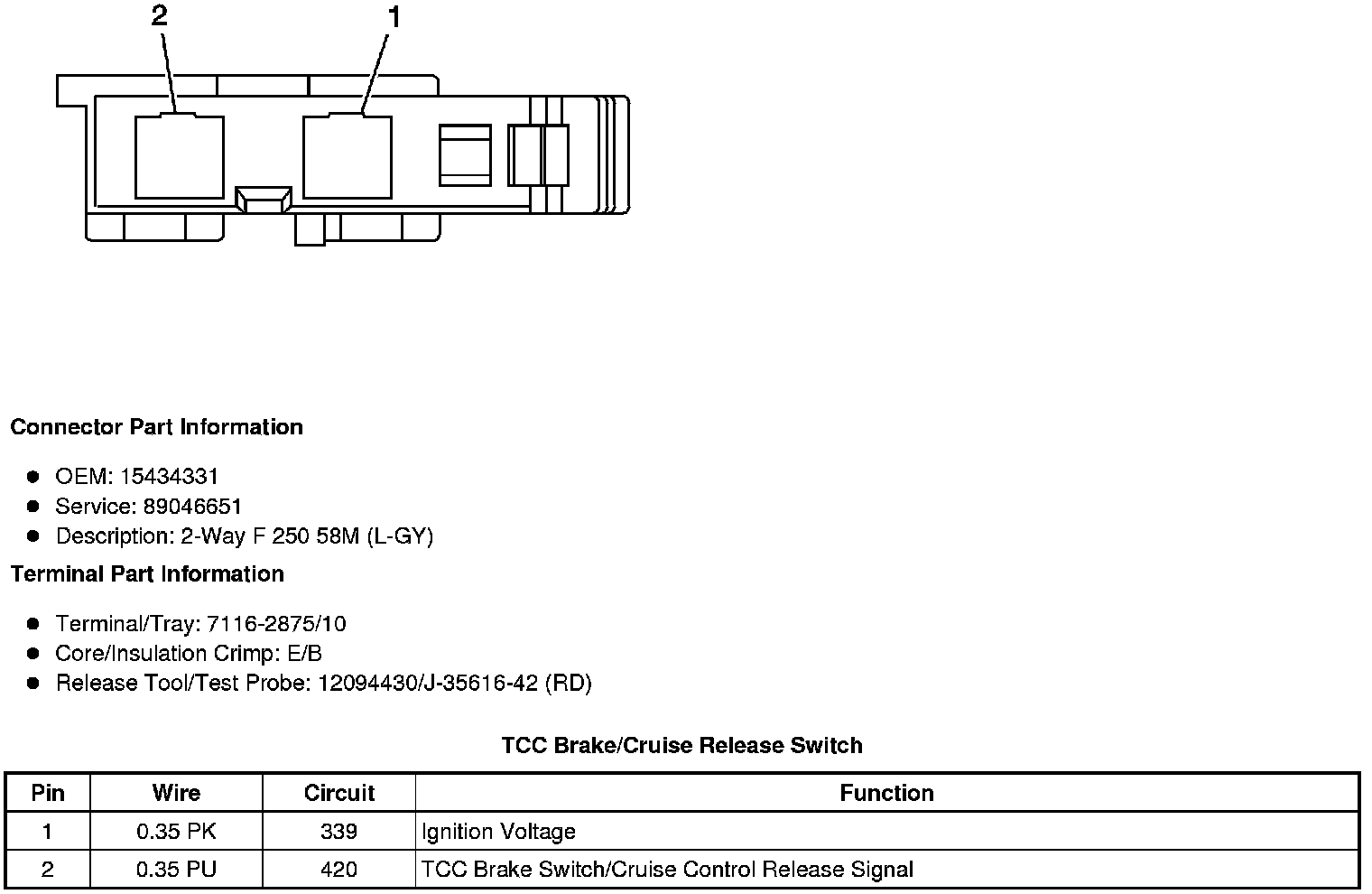

Component Connector End Views
TCC Brake/Cruise Release Switch
