Fuel Injector



Component Connector End Views

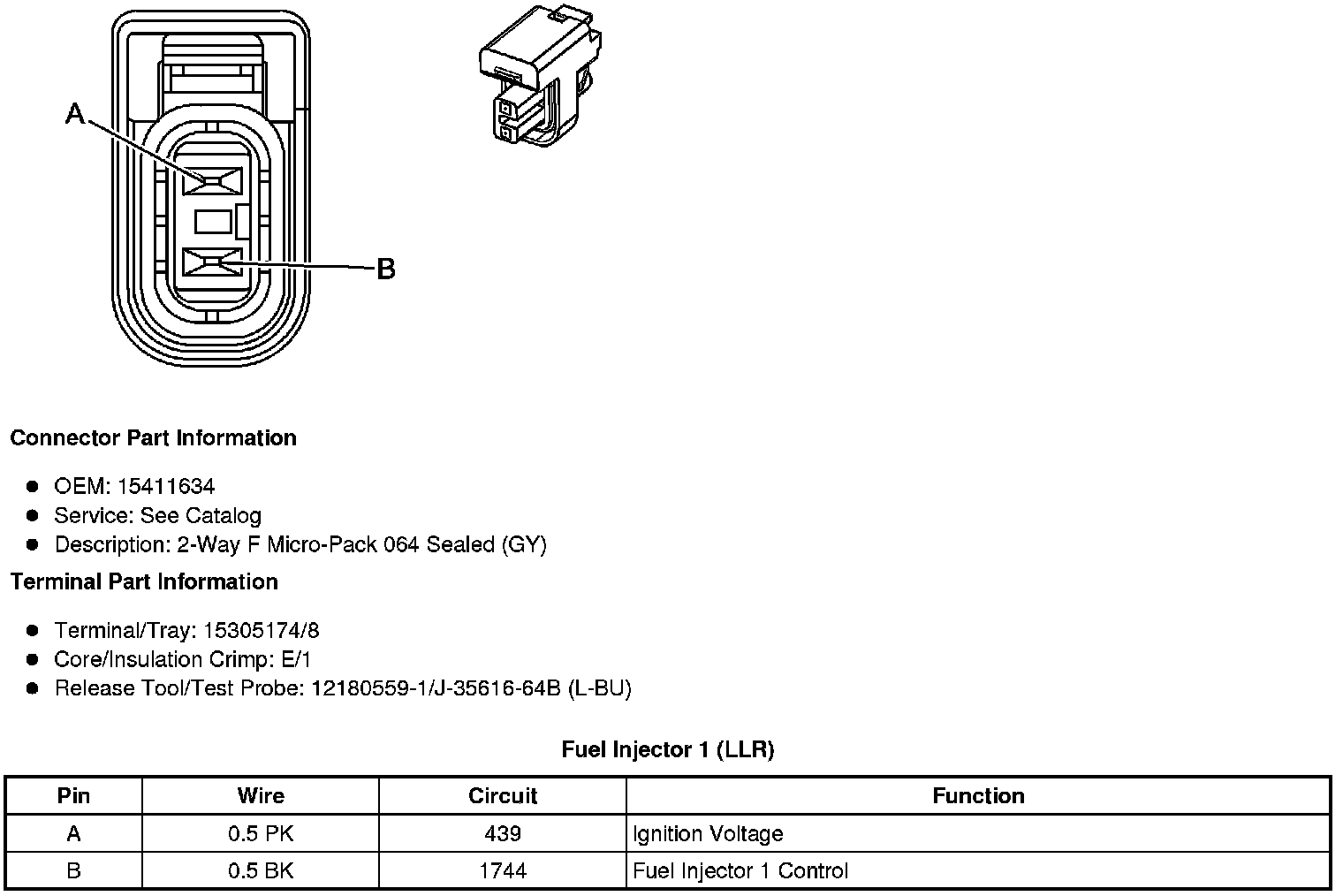

Fuel Injector 1 (LLR - 3.7L)





Fuel Injector 2 (LLR - 3.7L)





Fuel Injector 3 (LLR - 3.7L)





Fuel Injector 4 (LLR - 3.7L)

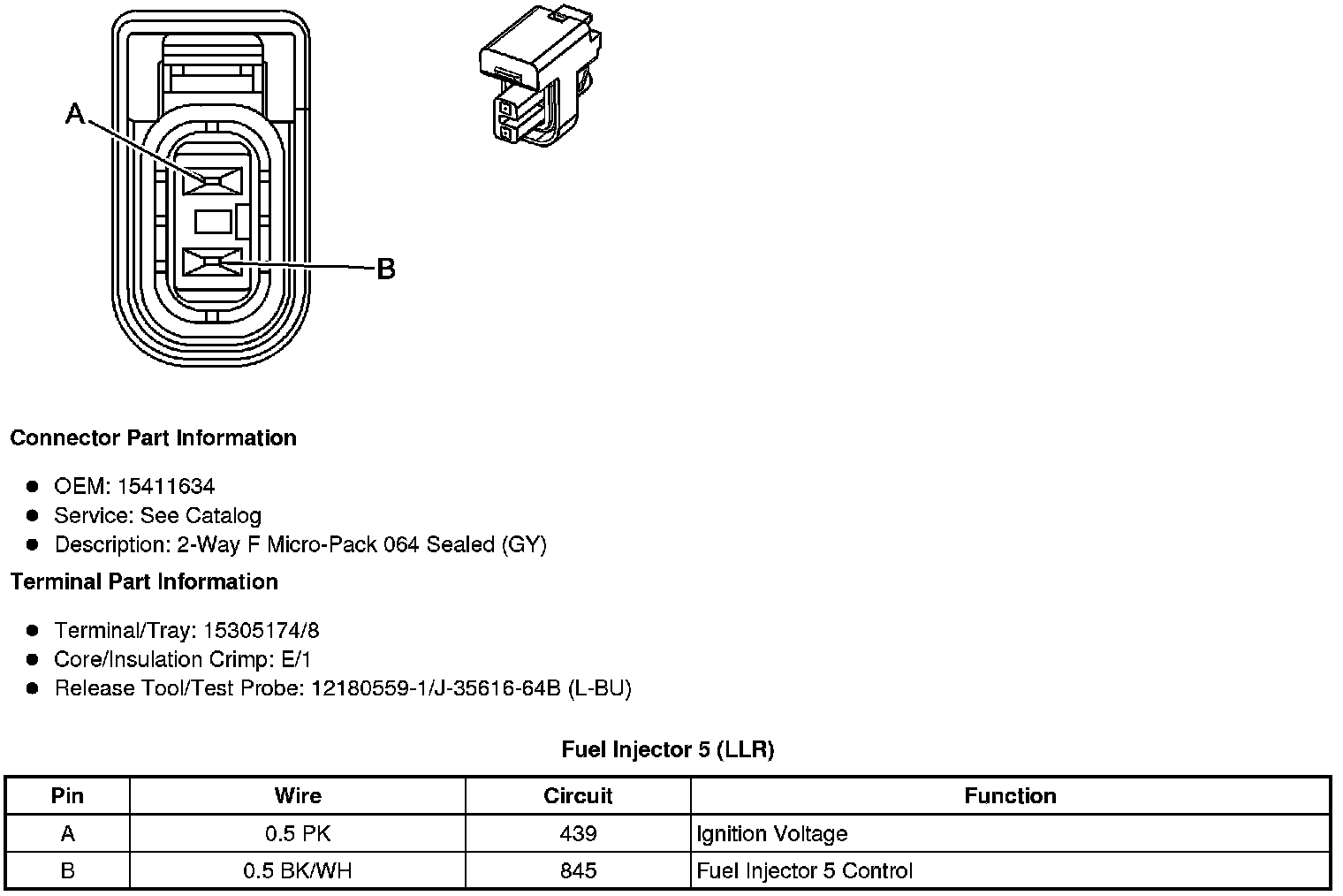

Fuel Injector 5 (LLR - 3.7L)
