Seat Temperature Element



Component Connector End Views

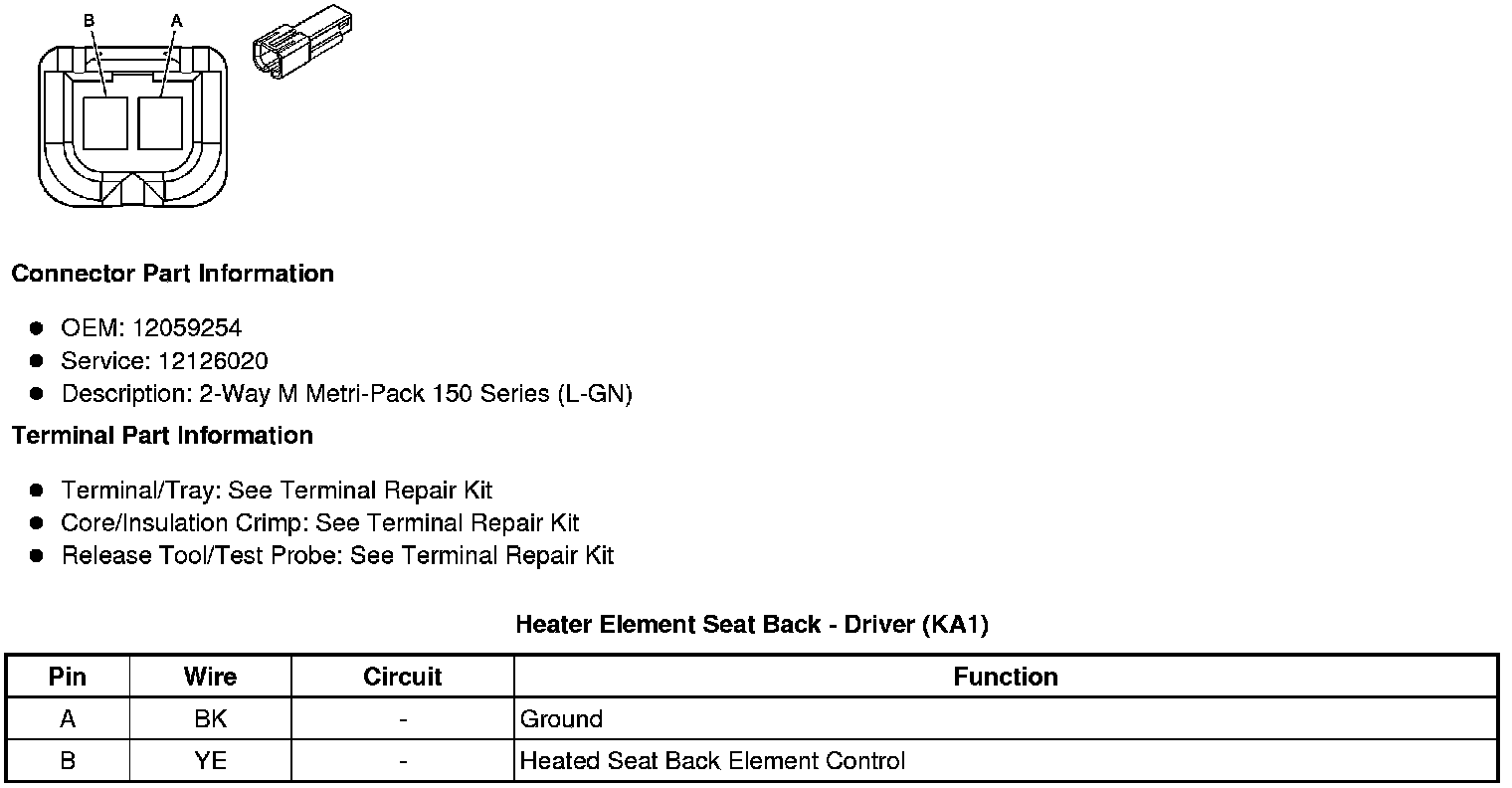

Heater Element Seat Back - Driver (KA1)





Heater Element Seat Back - Passenger (KA1)
