Home >> Chevy Truck >> 2008 >> Equinox AWD V6-3.6L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Connector Views

Connector Views



Component Connector End Views

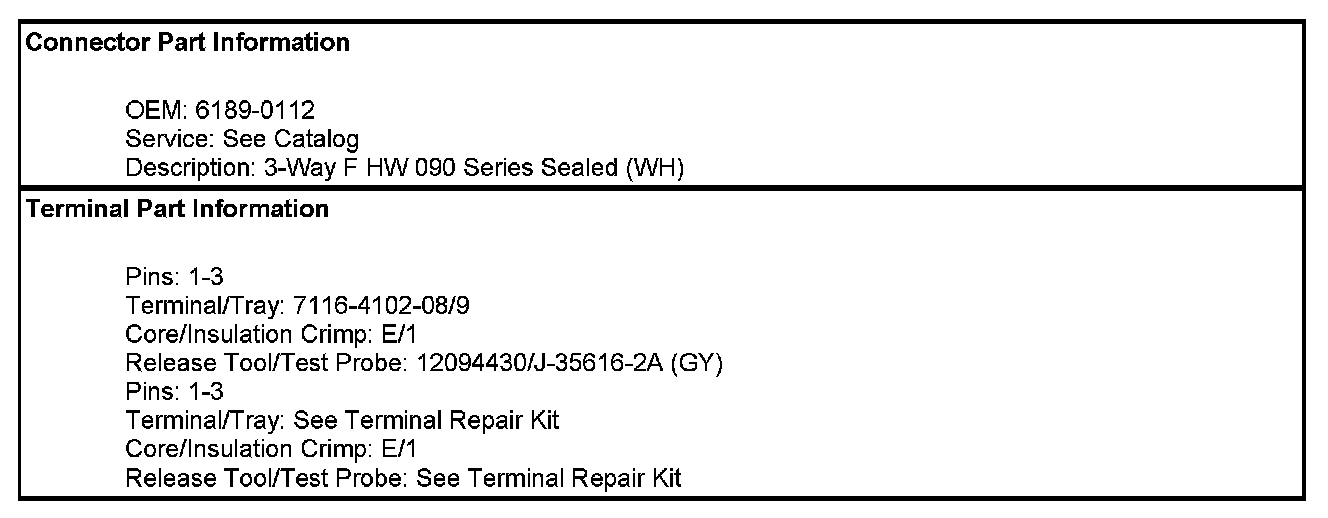

Headlamp - Left (Chevrolet)

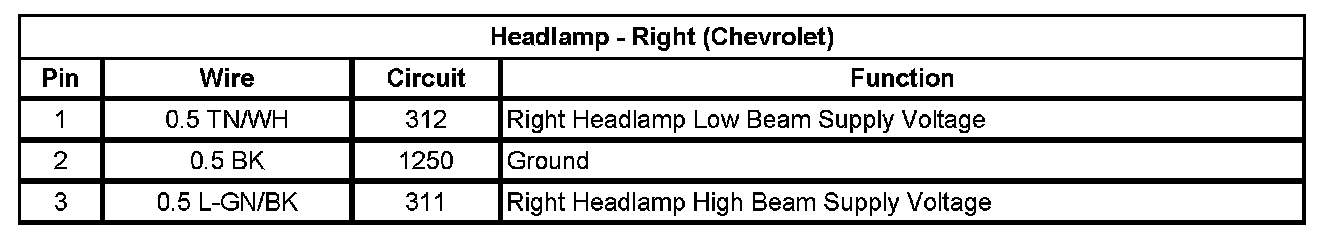

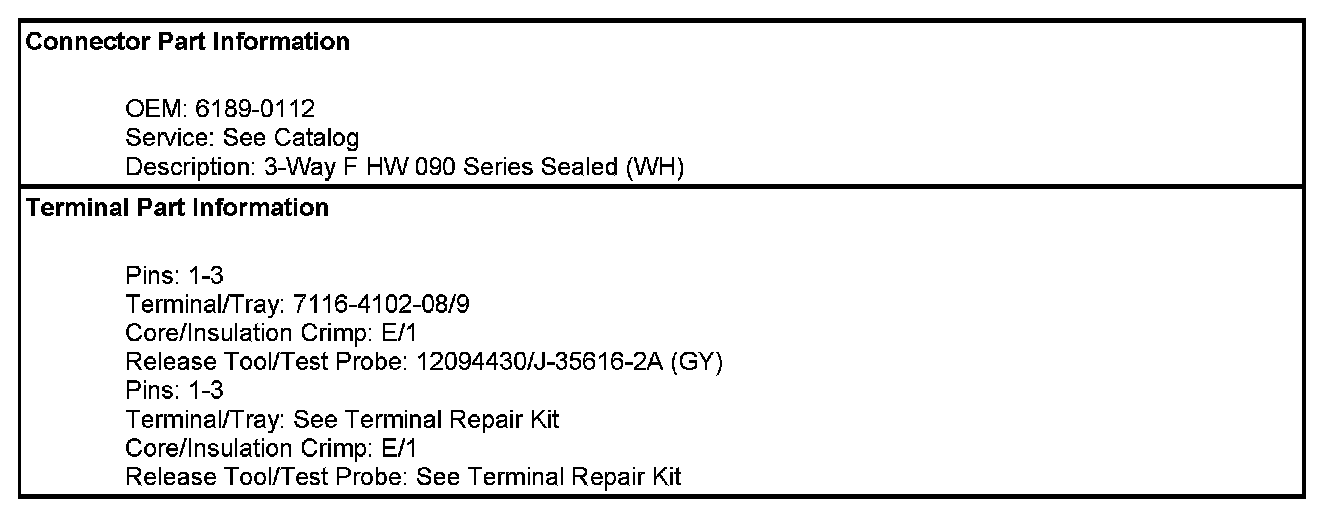

Headlamp - Right (Chevrolet)
