Connector Views
Component Connector End Views - Continued

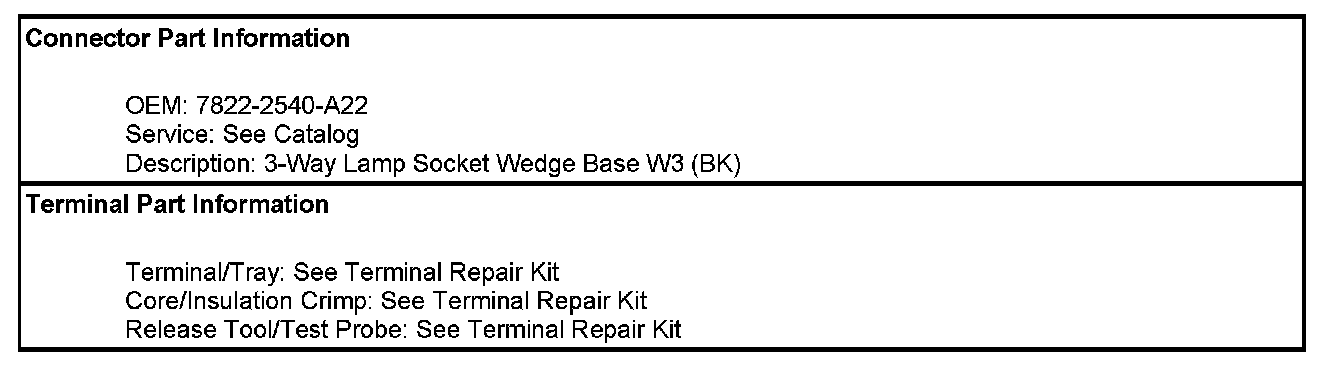

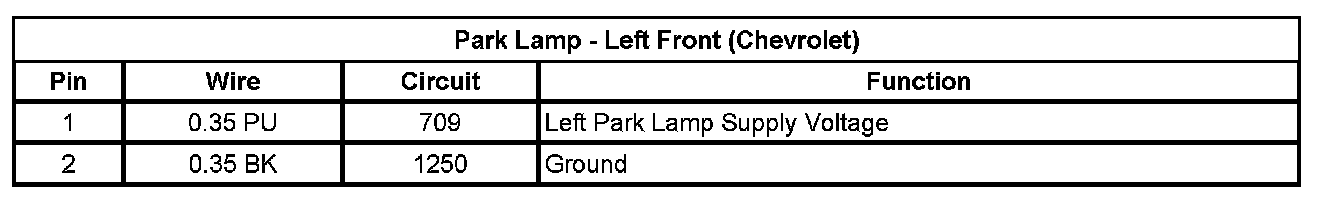

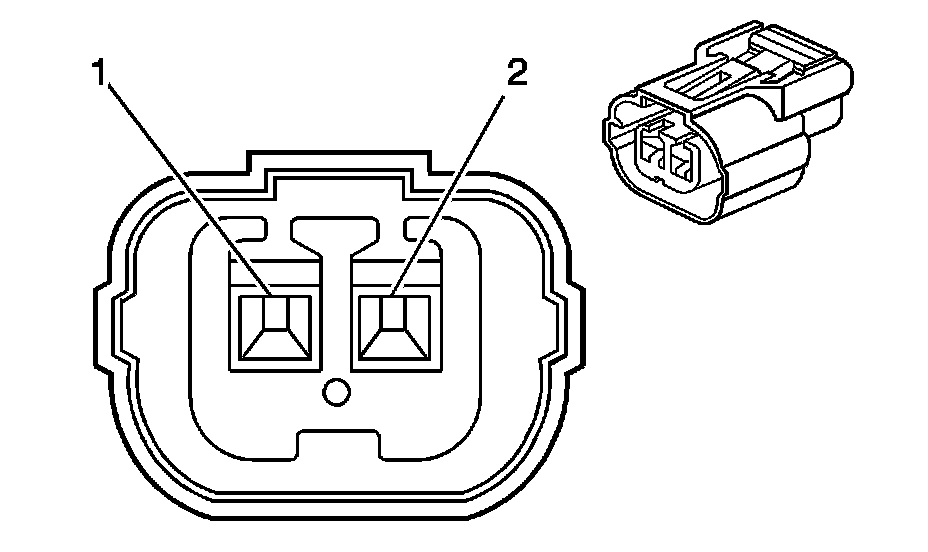

Park Lamp - Left Front (Chevrolet)

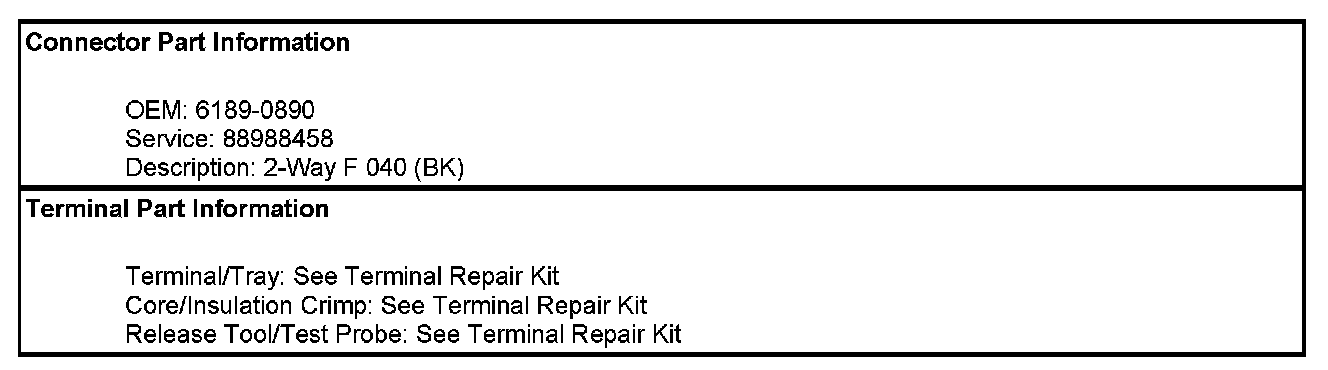

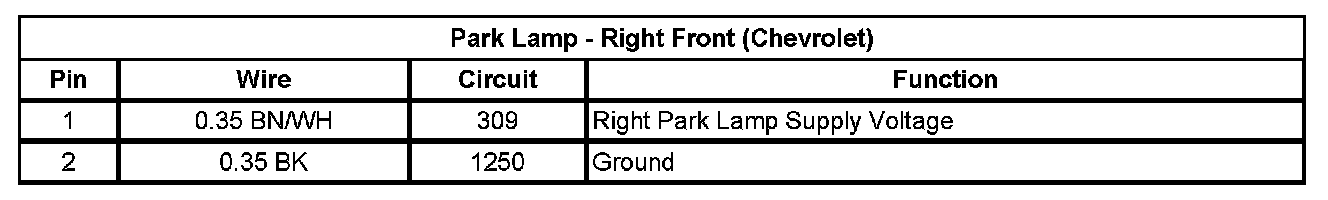

Park Lamp - Right Front (Chevrolet)
Park/Stop Lamp - Left Rear
Park/Stop Lamp - Right Rear
Park/Turn Signal Lamp - Left Rear
Park/Turn Signal Lamp - Right Rear
