System Diagram



Component Connector End Views

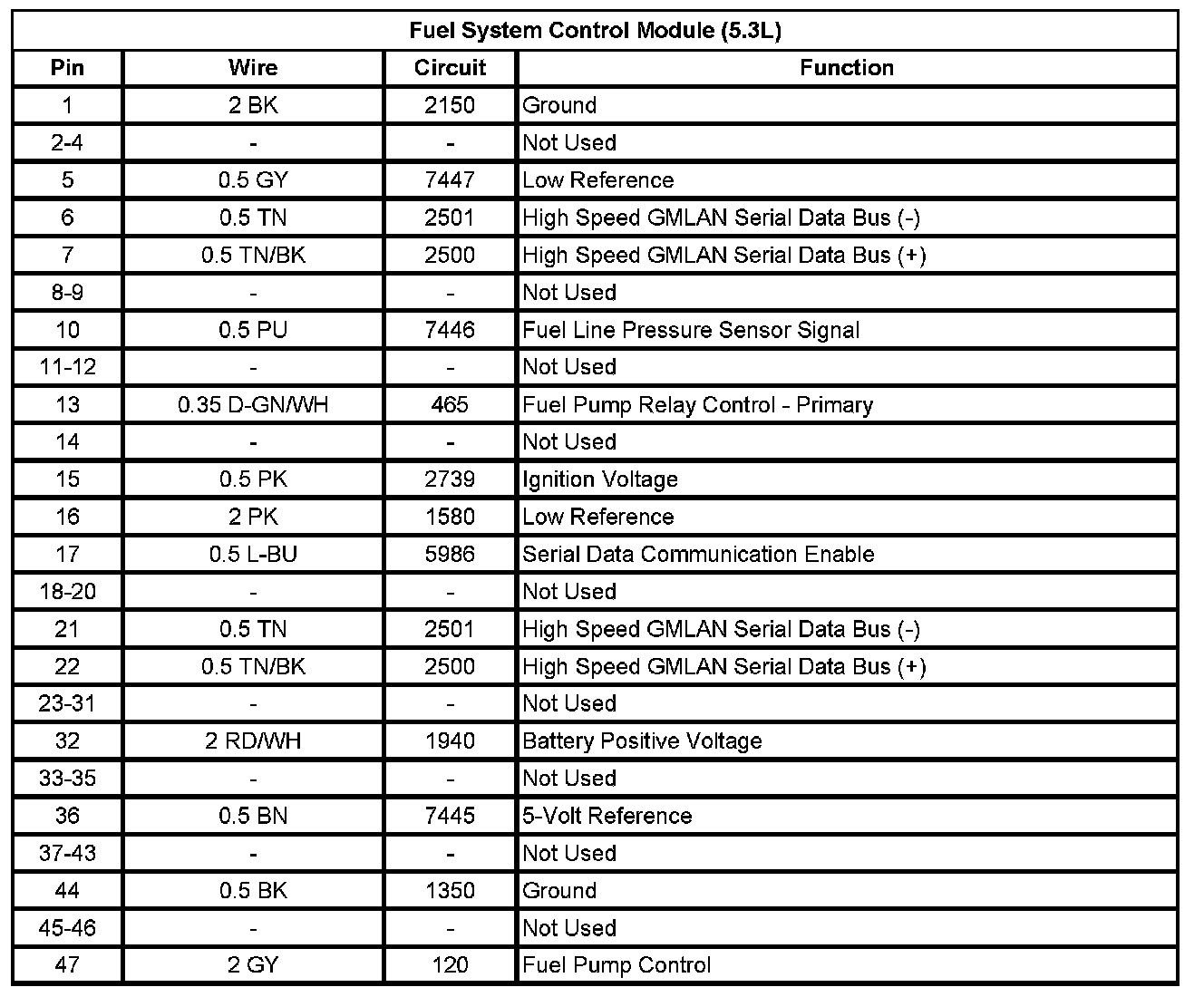

Fuel System Control Module (5.3L)

Electronic Suspension Control (ESC) Module:
