Accumulator HVAC: Service and Repair

Accumulator Replacement

Special Tools

J 39400-A Halogen Leak Detector

Removal Procedure

1. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging.
2. Remove the coolant reservoir.

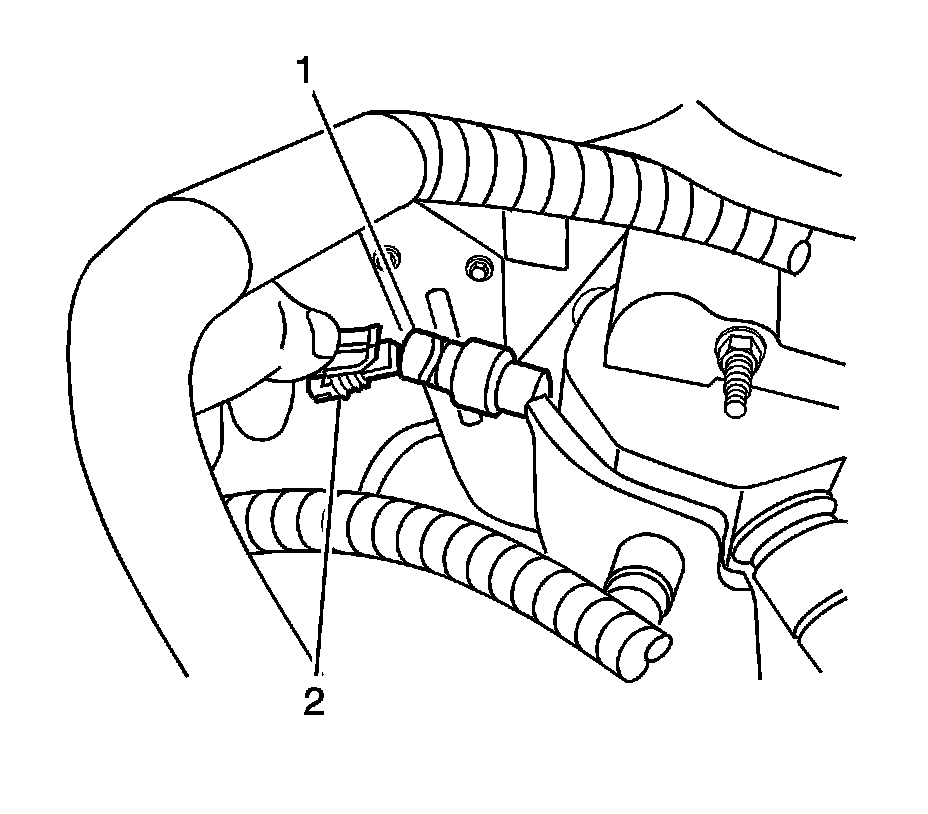

3. Disconnect the electrical connector (2) from A/C low pressure sensor (1).

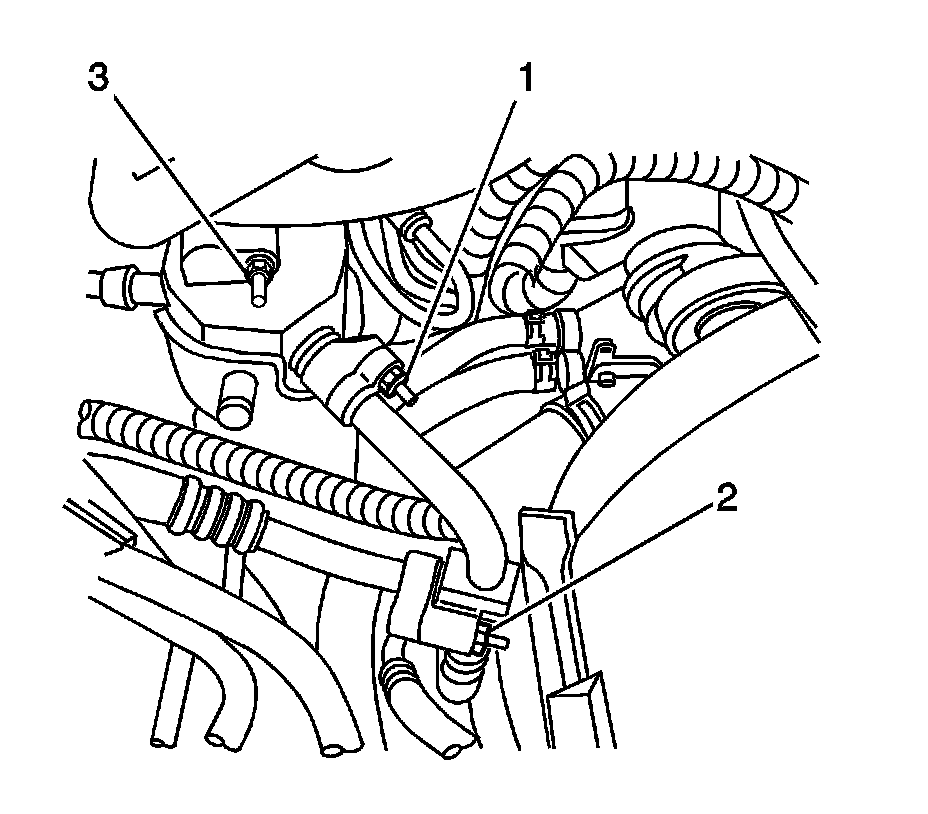

4. Remove the evaporator outlet pipe retaining nut (3) from the accumulator.




5. Remove the compressor suction hose retaining nut (1).
6. Remove the compressor suction hose from the accumulator.

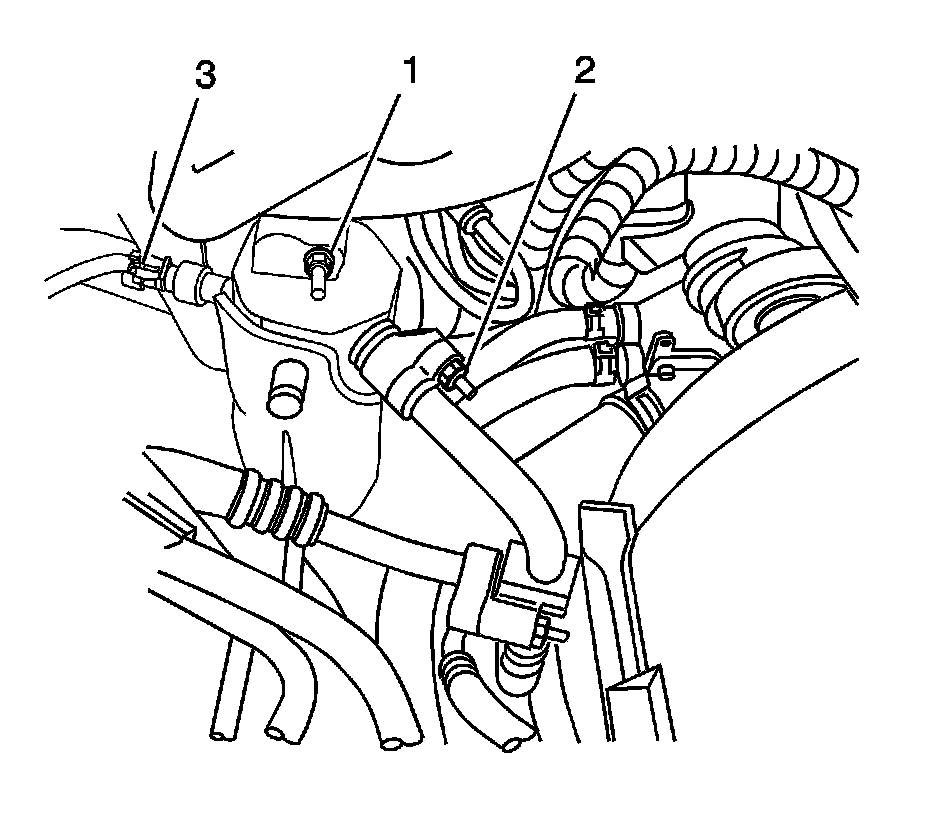

7. Remove the retaining screw (4) from the accumulator retaining bracket (2).
8. Remove the accumulator (1).
9. Remove the sealing washers.

Installation Procedure

1. If replacing the accumulator, add the specified amount of PAG oil directly into the accumulator. Refer to Refrigerant System Capacities.




2. Install the accumulator (1).

Notice: Refer to Fastener Notice.

3. Install the screw (4) to the accumulator retaining bracket (2).

Tighten the screw to 9 N.m (80 lb in).




4. Connect the low pressure sensor electrical connector (1).




5. Install new sealing washers.
6. Install the evaporator outlet pipe.
7. Install the evaporator outlet pipe retaining nut (1) to the accumulator.

Tighten the nut to 16 N.m (12 lb ft).

8. Install the compressor suction hose.
9. Install the compressor suction hose retaining nut (2) to the accumulator.

Tighten the nut to 16 N.m (12 lb ft).

10. Install the coolant reservoir.
11. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
12. Leak test the fittings of the component using the J 39400-A.
