Heating and Air Conditioning



HVAC Schematics

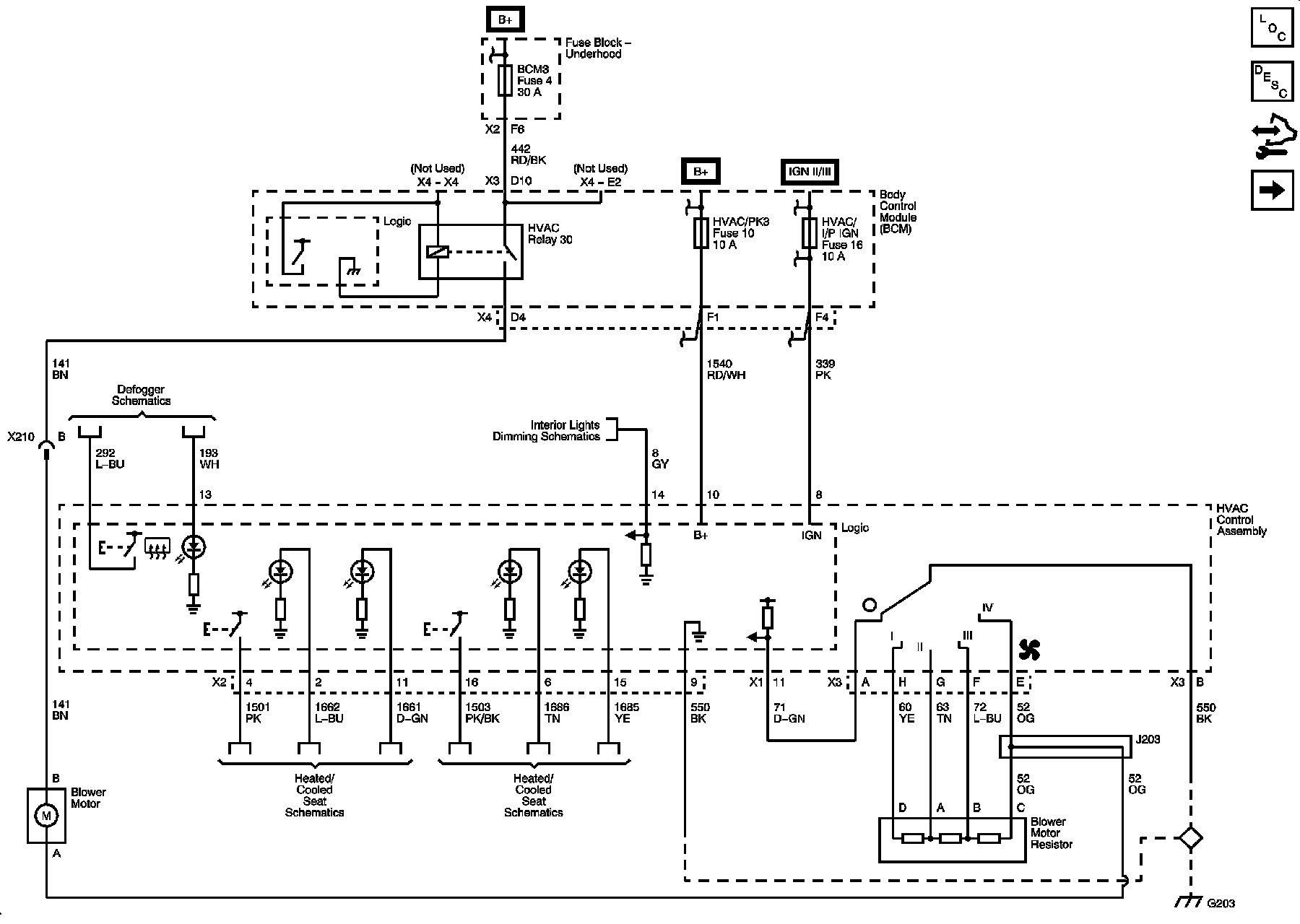

Power, Ground, Blower Motor Controls, and Subsystem References

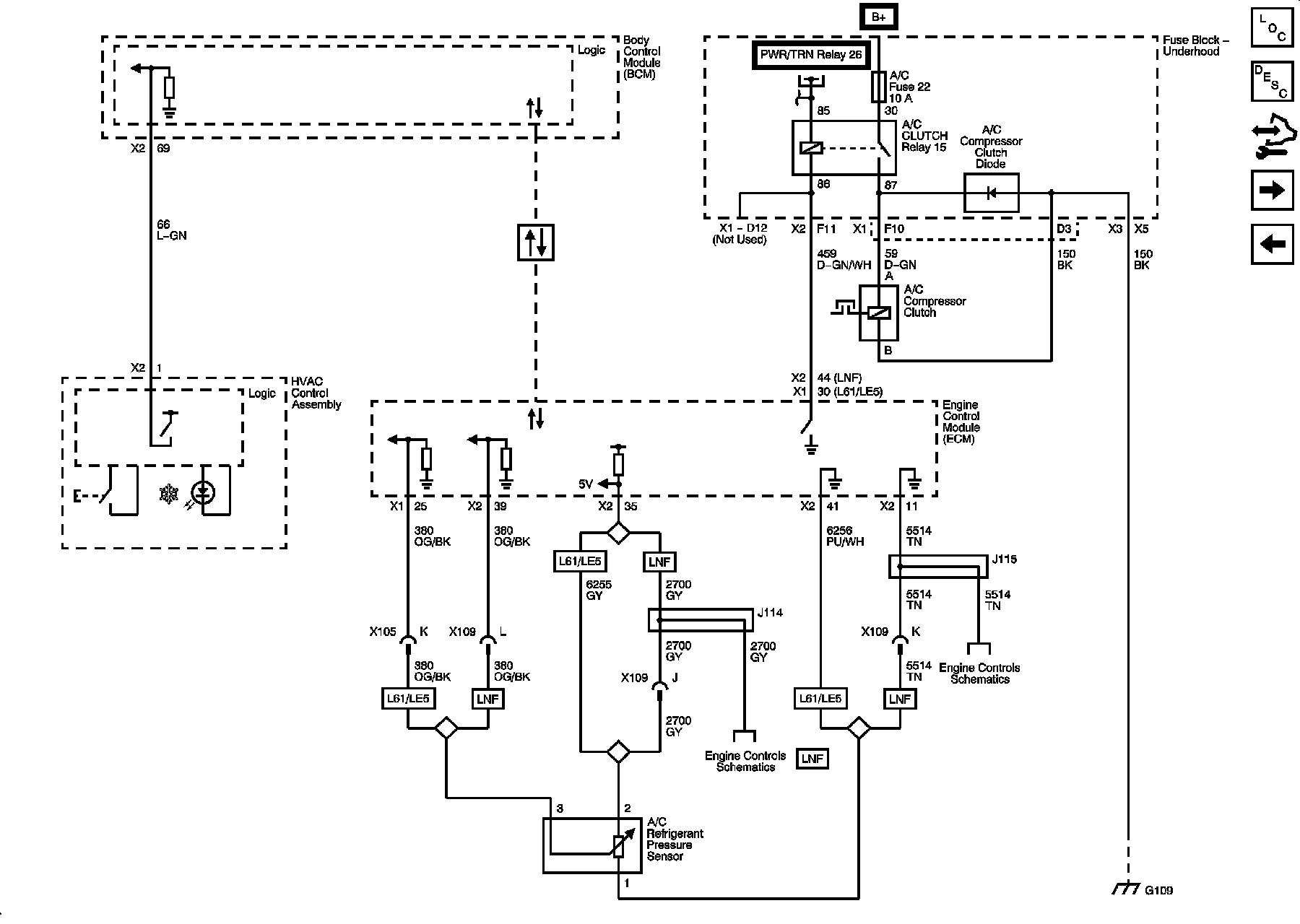

Compressor Controls

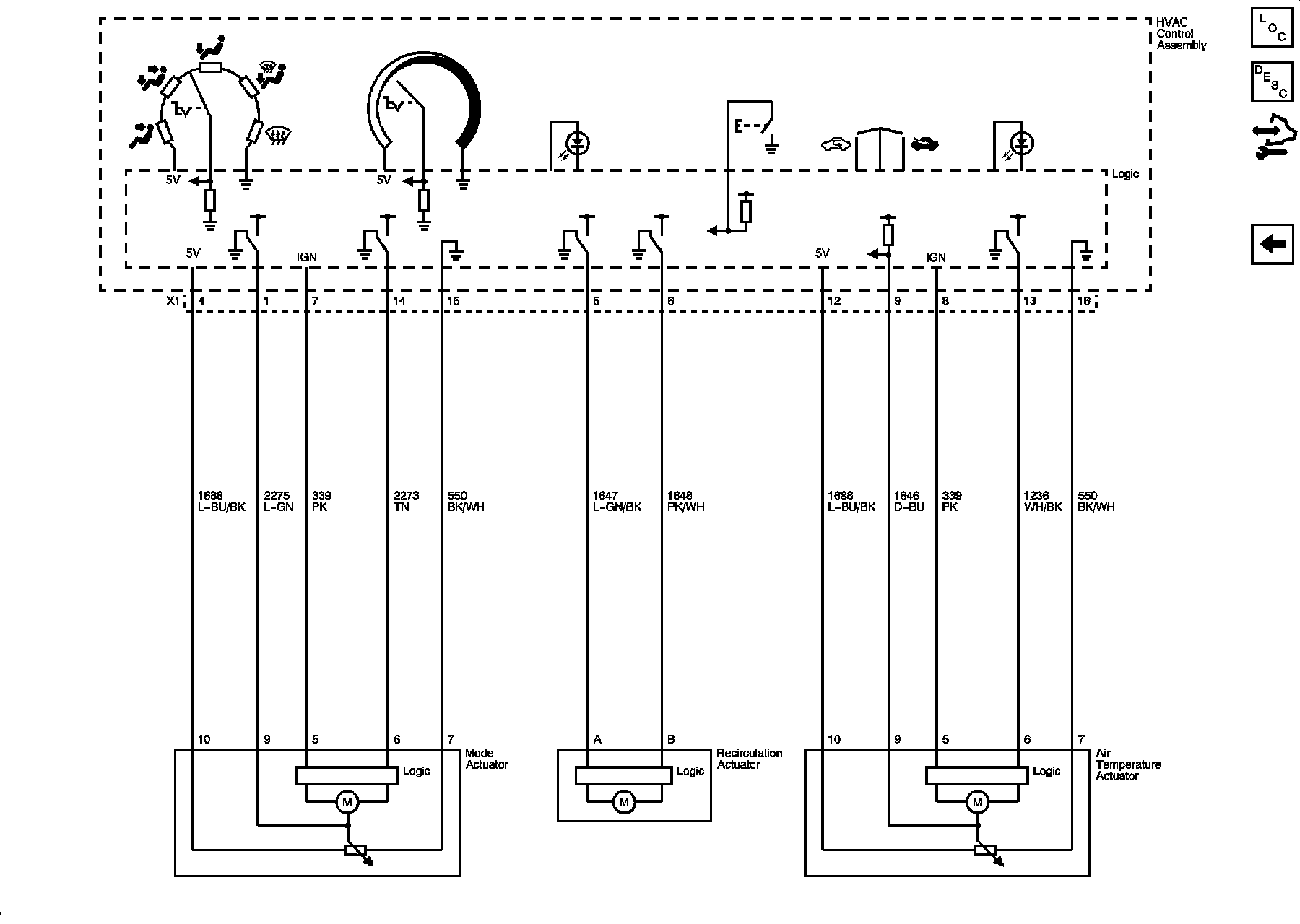

Mode and Air Temperature Controls
