Discharge Air Temperature Sensor / Switch, HVAC

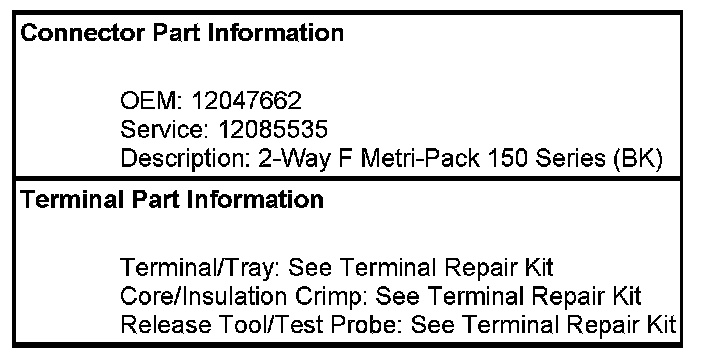

Component Connector End Views

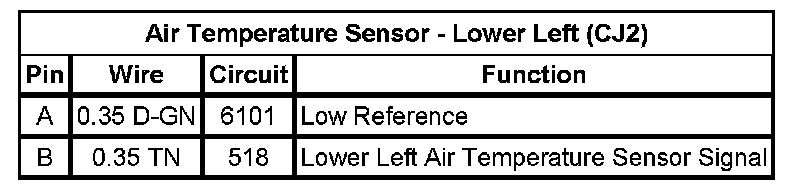

Air Temperature Sensor - Lower Left (CJ2)














Air Temperature Sensor - Lower Right (CJ2)














Air Temperature Sensor - Upper Left (CJ2)

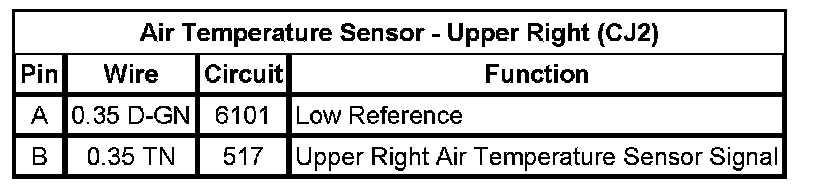

Air Temperature Sensor - Upper Right (CJ2)
