Timing Component Alignment Marks
>>
Locations
Timing Component Alignment Marks: Locations

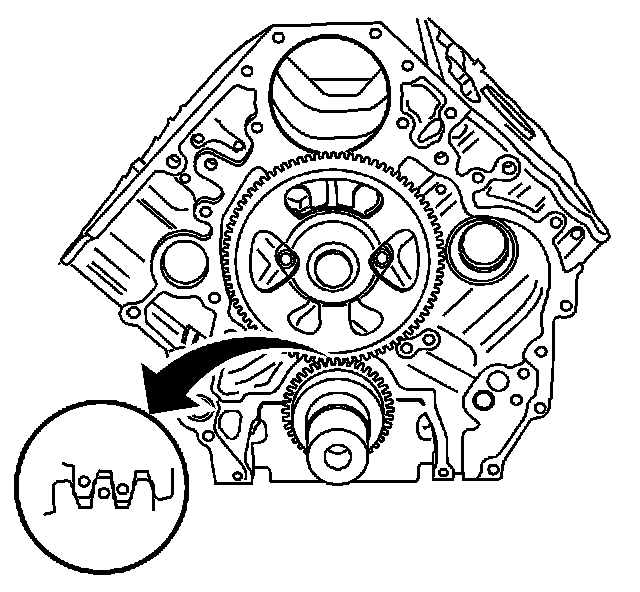

Align the camshaft gear to the crankshaft gear as shown.
