Cellular Phone Microphone
Cellular Phone Microphone

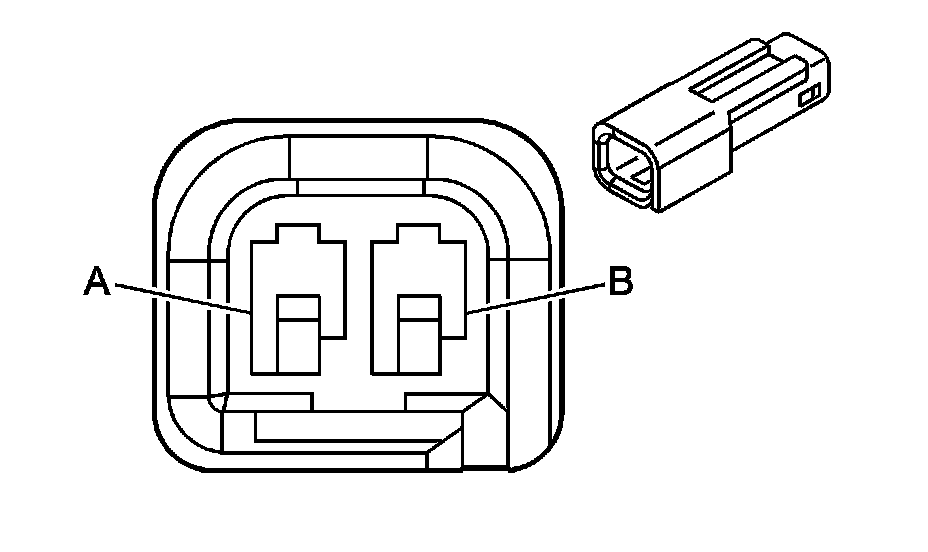

Component Connector End Views

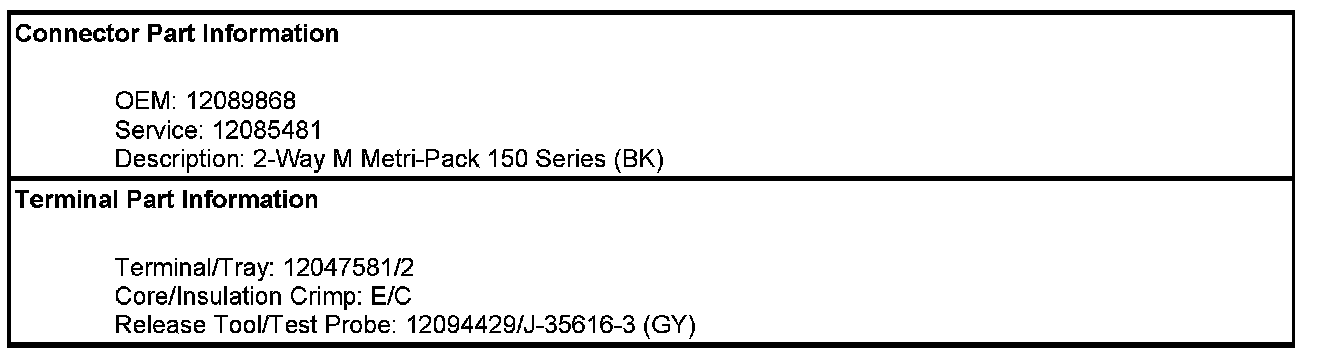

Cellular Telephone Microphone (UE1)

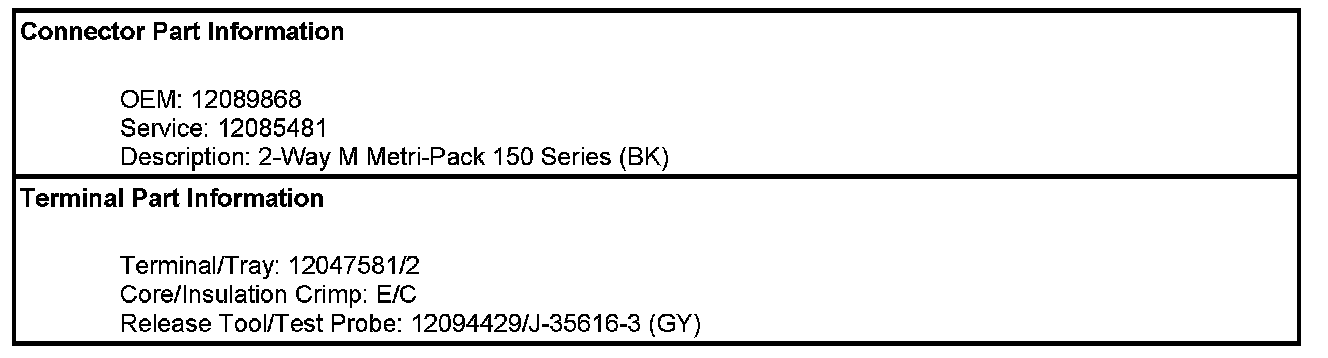

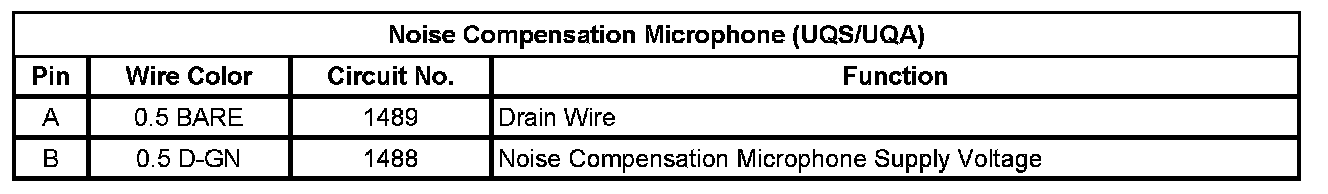

Noise Compensation Microphone (UQS/UQA)
