Windshield Washer Pump: Diagrams



Component Connector End Views - Continued

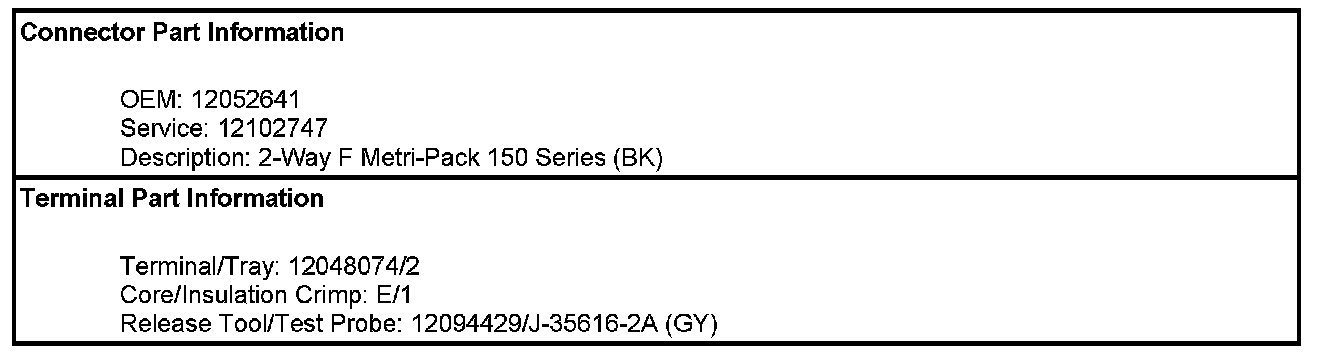

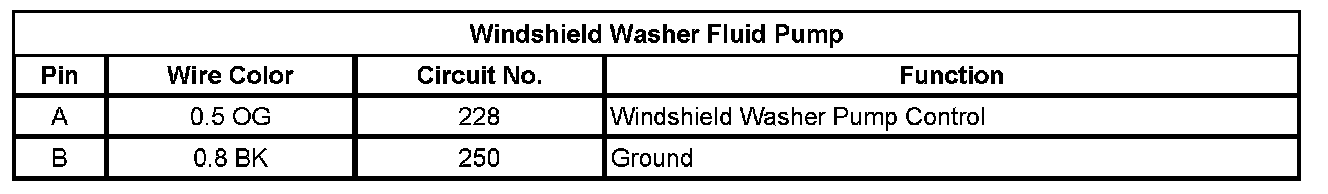

Windshield Washer Fluid Pump

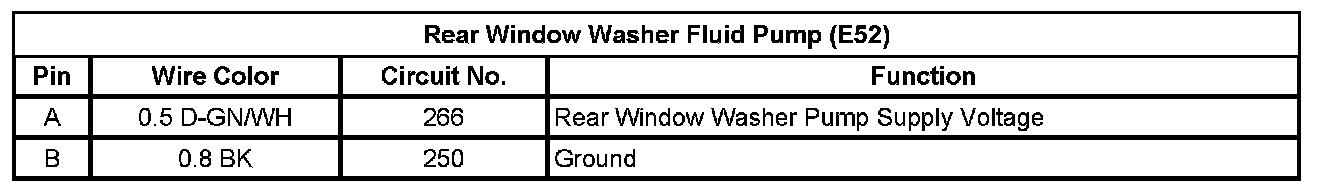

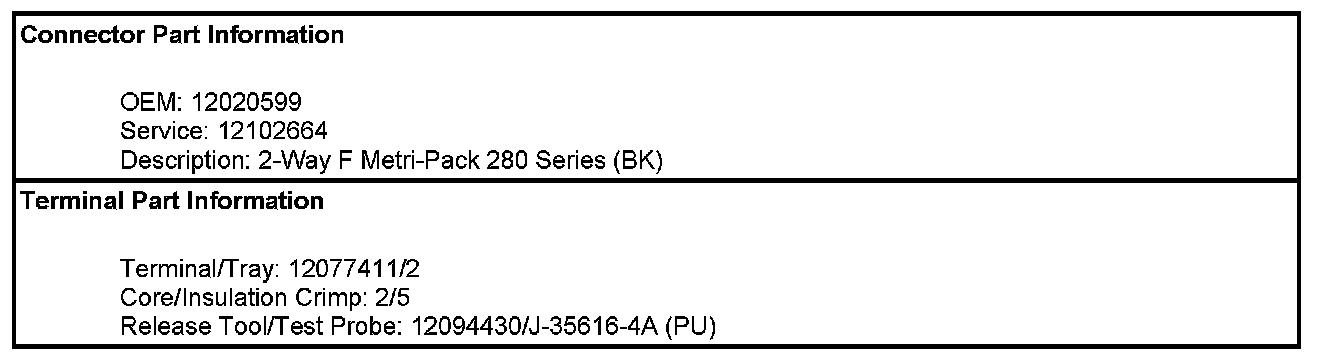

Rear Window Washer Fluid Pump (E52)
