Information Bus
Information Bus
Component Connector End Views - Continued

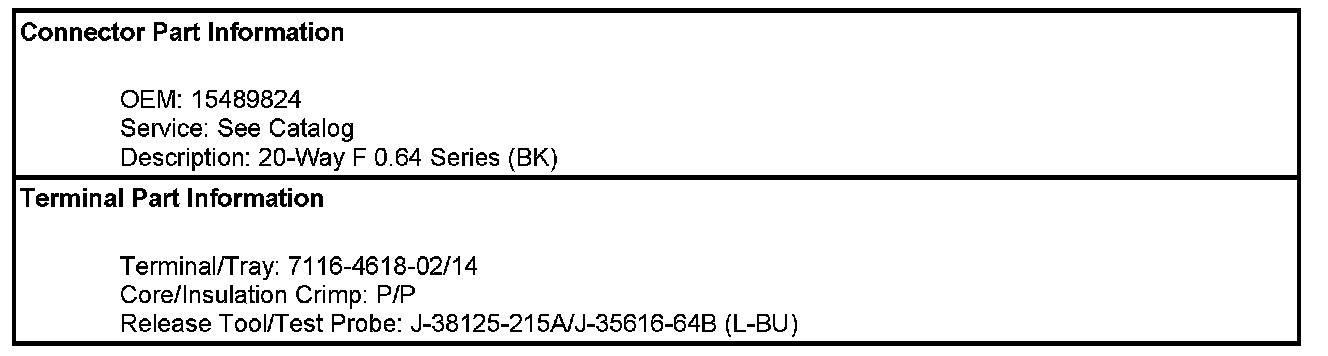

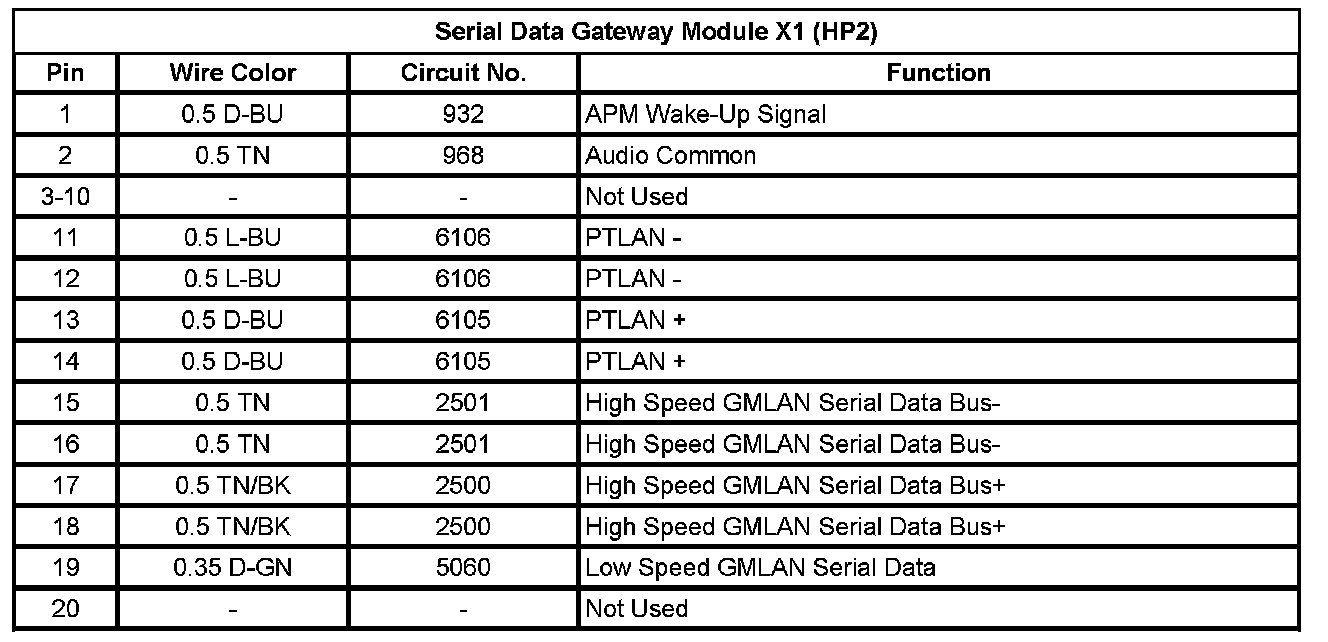

Serial Data Gateway Module X1 (HP2)

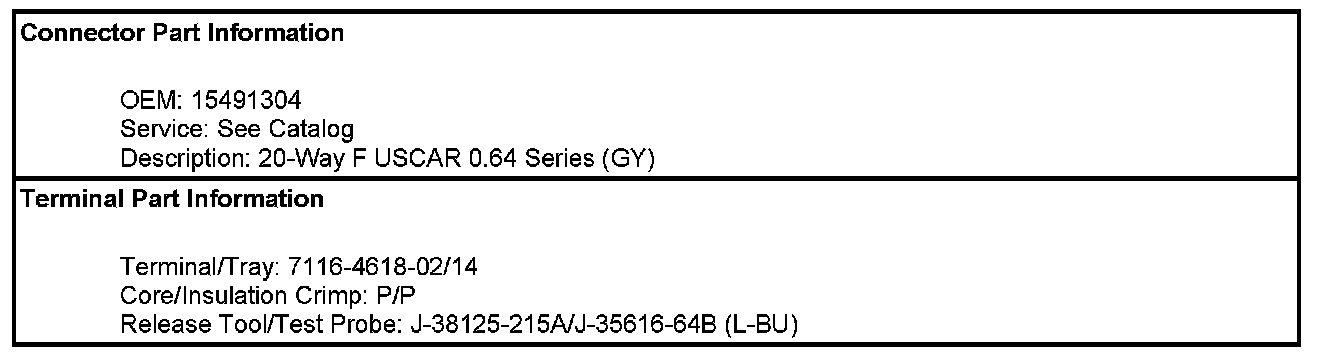

Serial Data Gateway Module X2 (HP2)
