Home >> Chevy Truck >> 2008 >> TrailBlazer 4WD V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo



Component Connector End Views

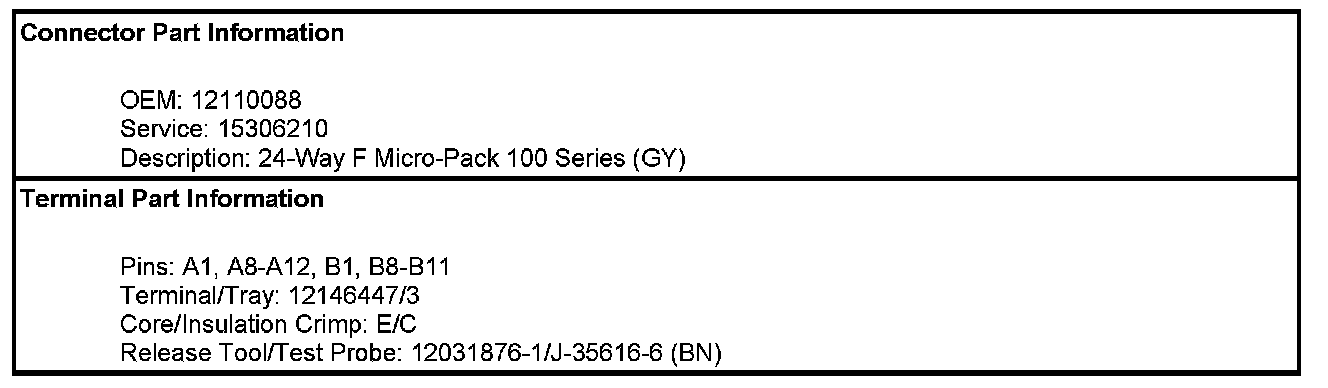

Radio X1 (w/o UQA)

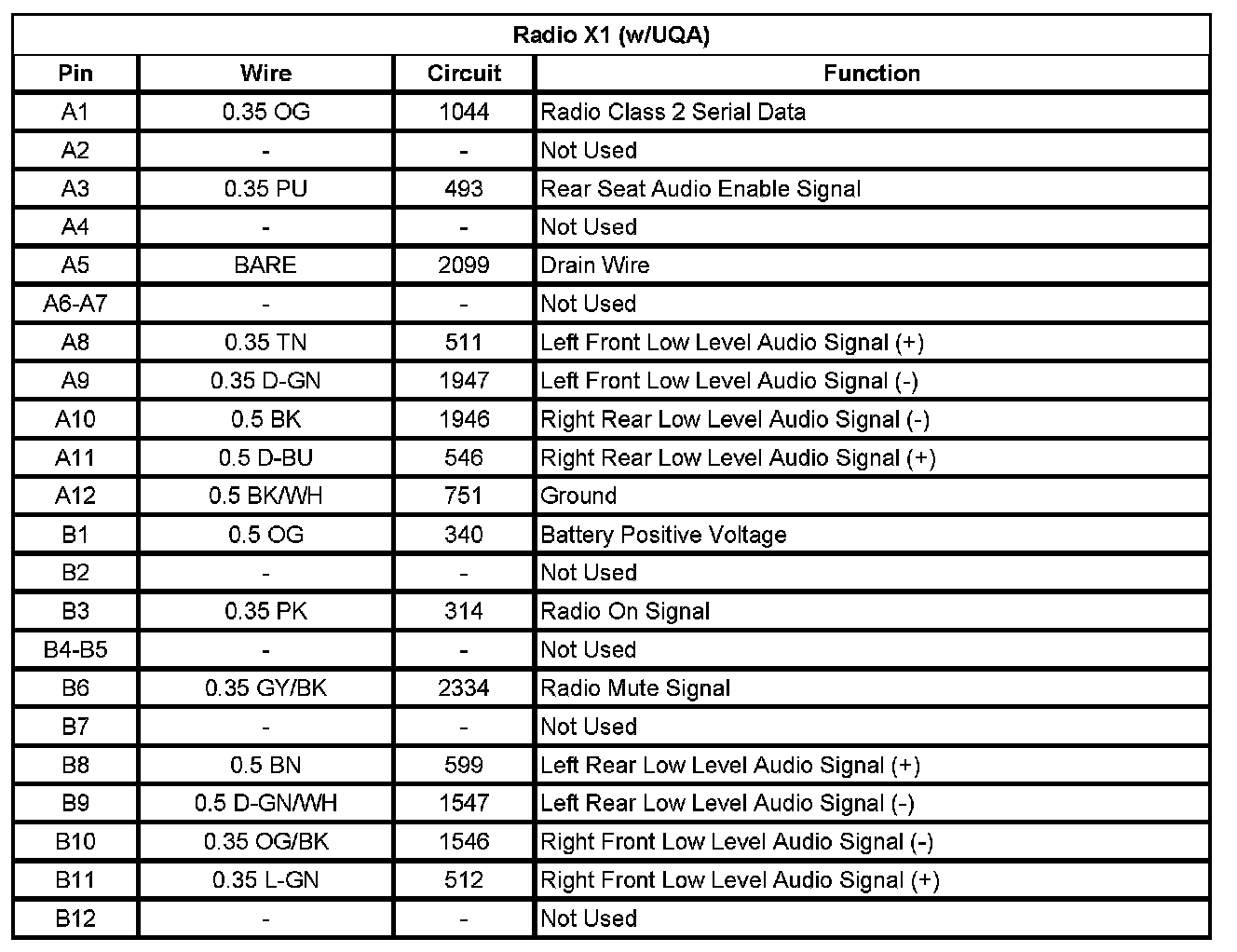

Radio X1 (w/UQA)

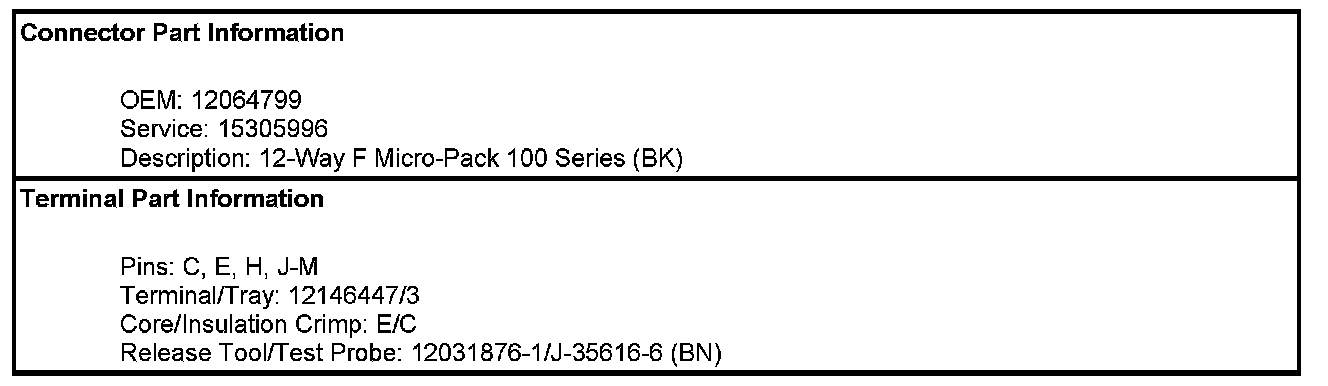

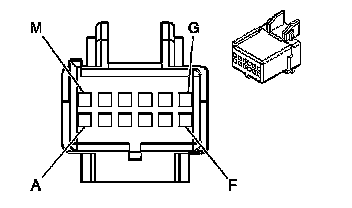

Radio X2

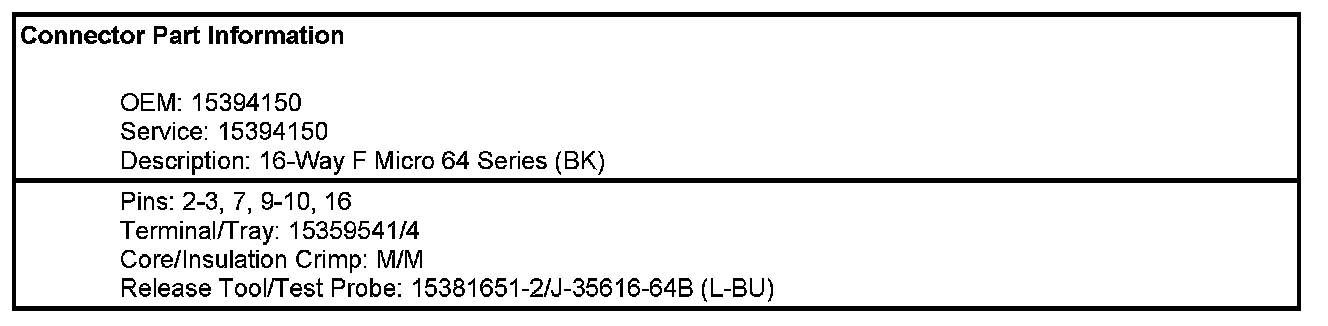

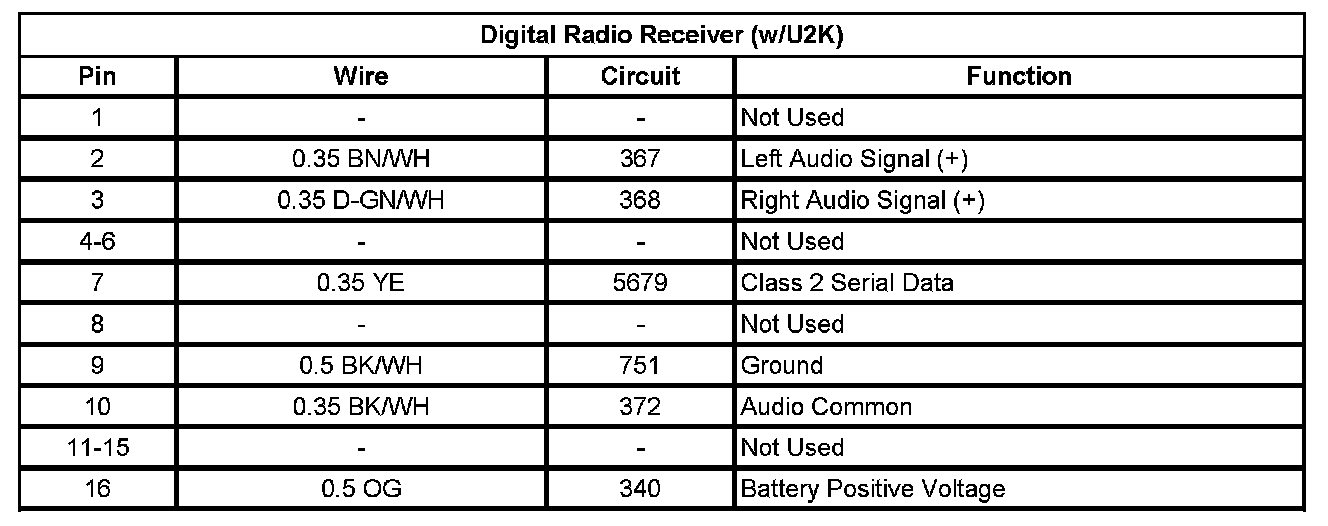

Digital Radio Receiver (w/U2K)
