NVG 126-NP4 - Transfer Case

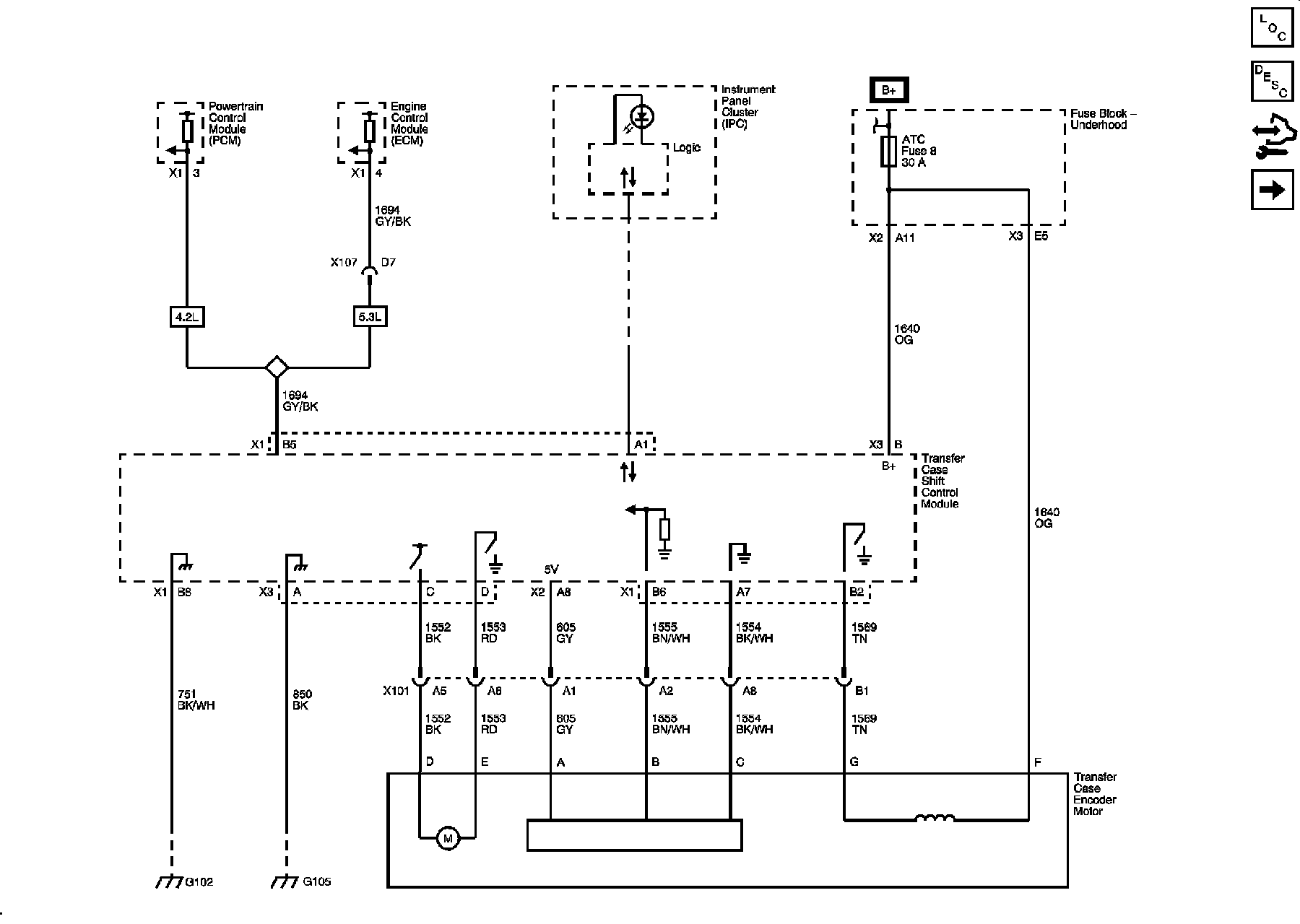

Transfer Case Control Schematics

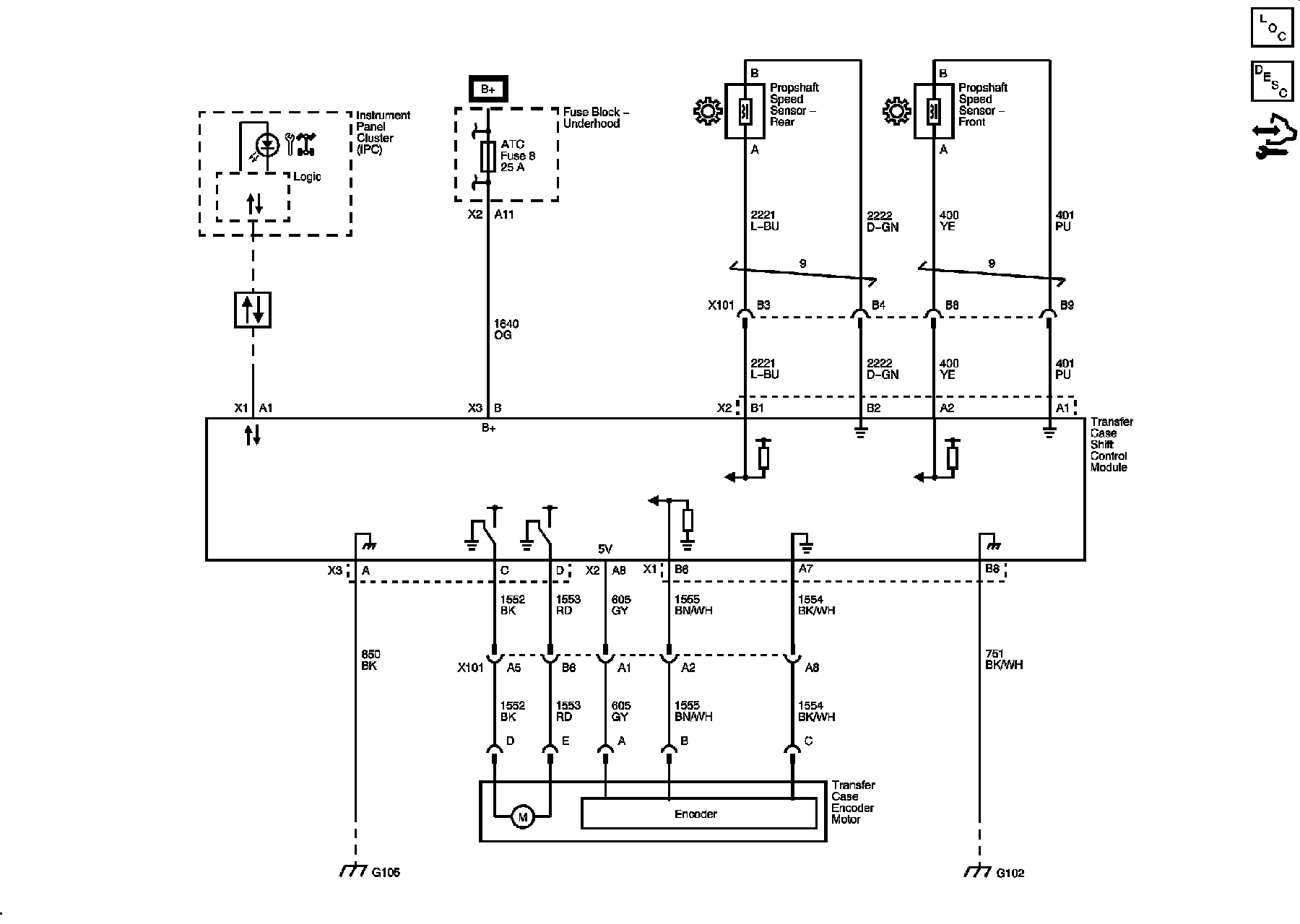

Power, Ground, Serial Data, and Transfer Case Encoder Motor

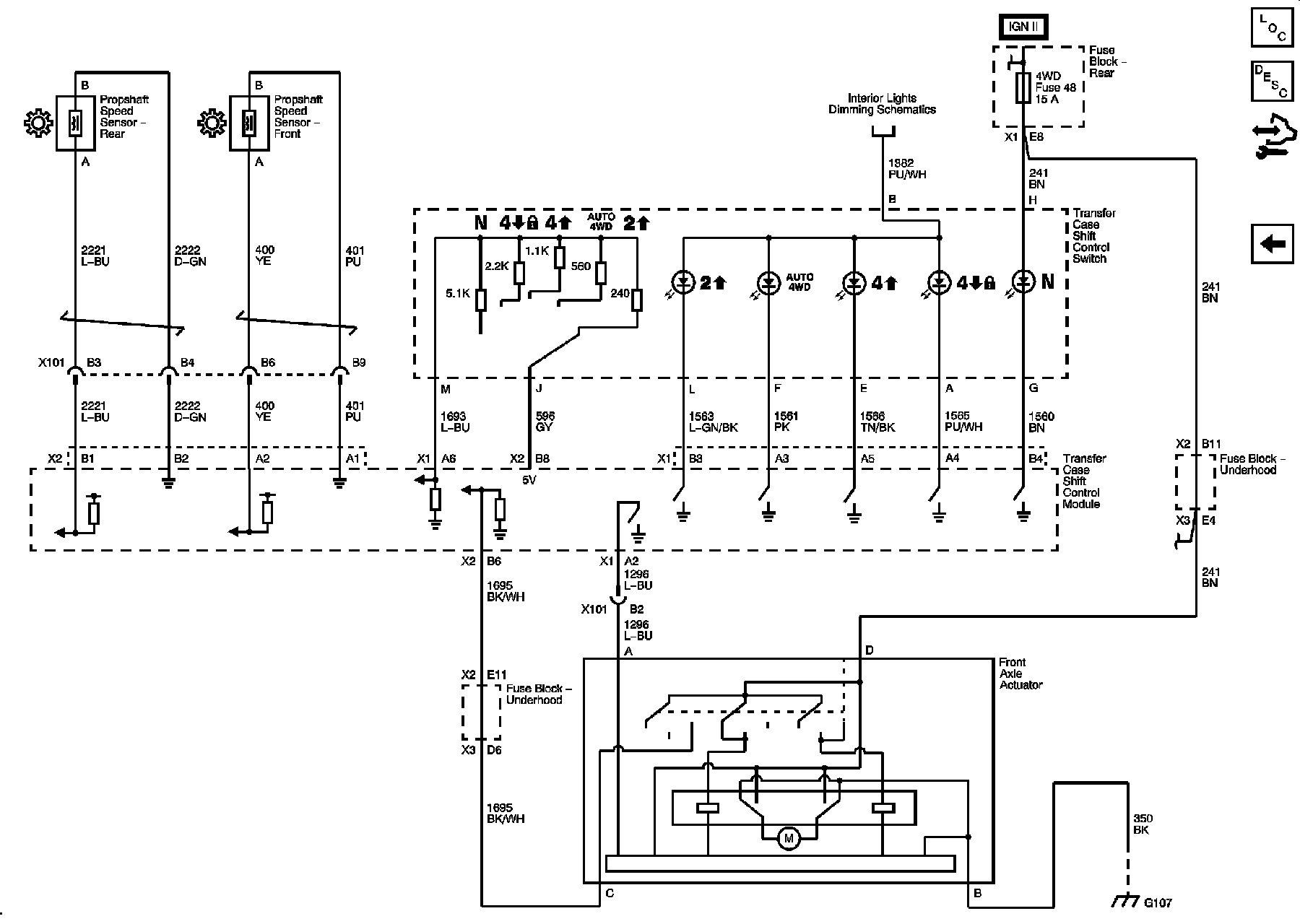

Speed Signal, Front Axle Actuator and Indicators
