Vehicle Communication Unit (VCU)



Component Connector End Views

Vehicle Communication Unit (VCU) X1 (UE1)

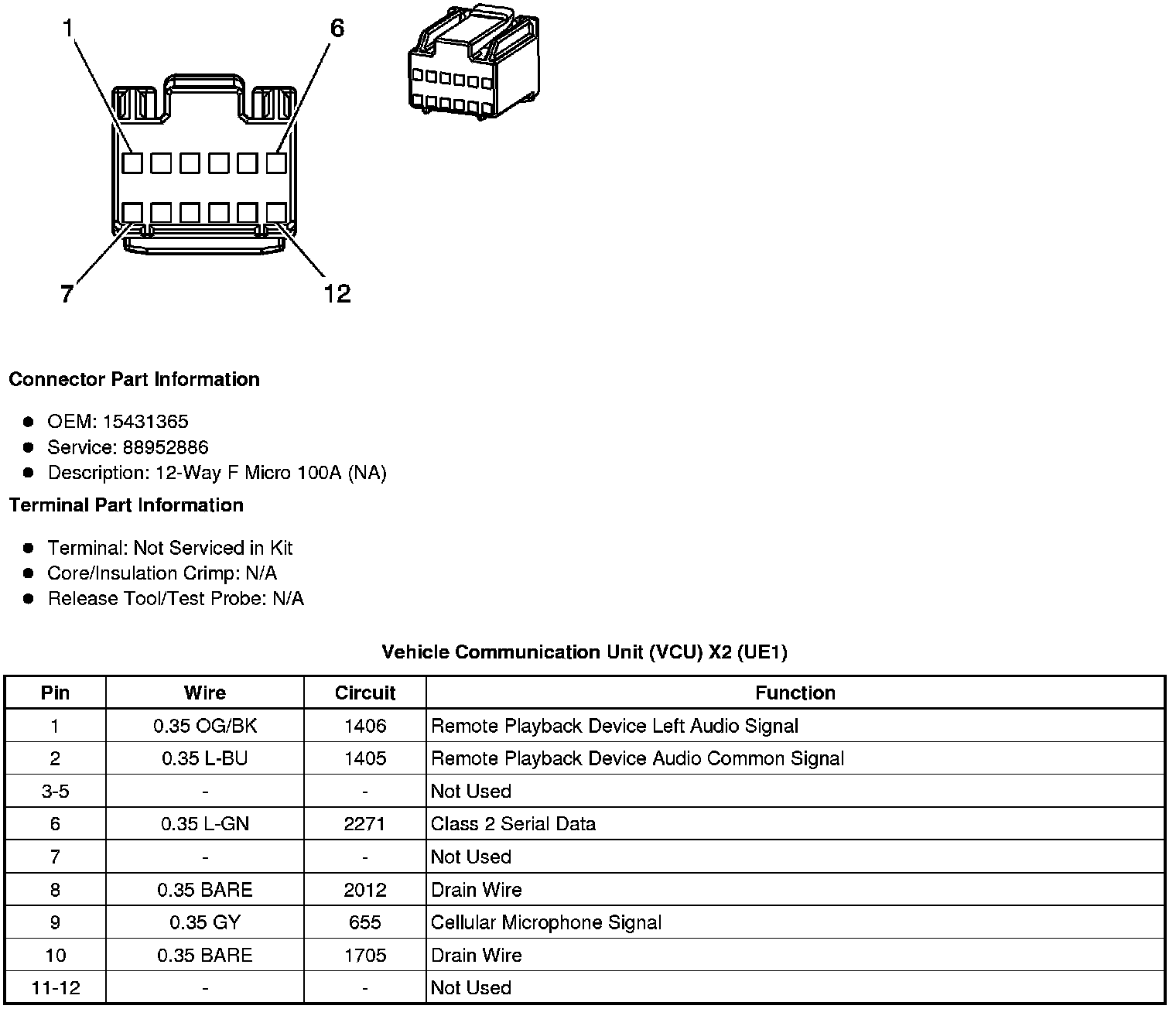

Vehicle Communication Unit (VCU) X2 (UE1)
