Video System Schematics (UMS)

Video System Schematics (UMS)

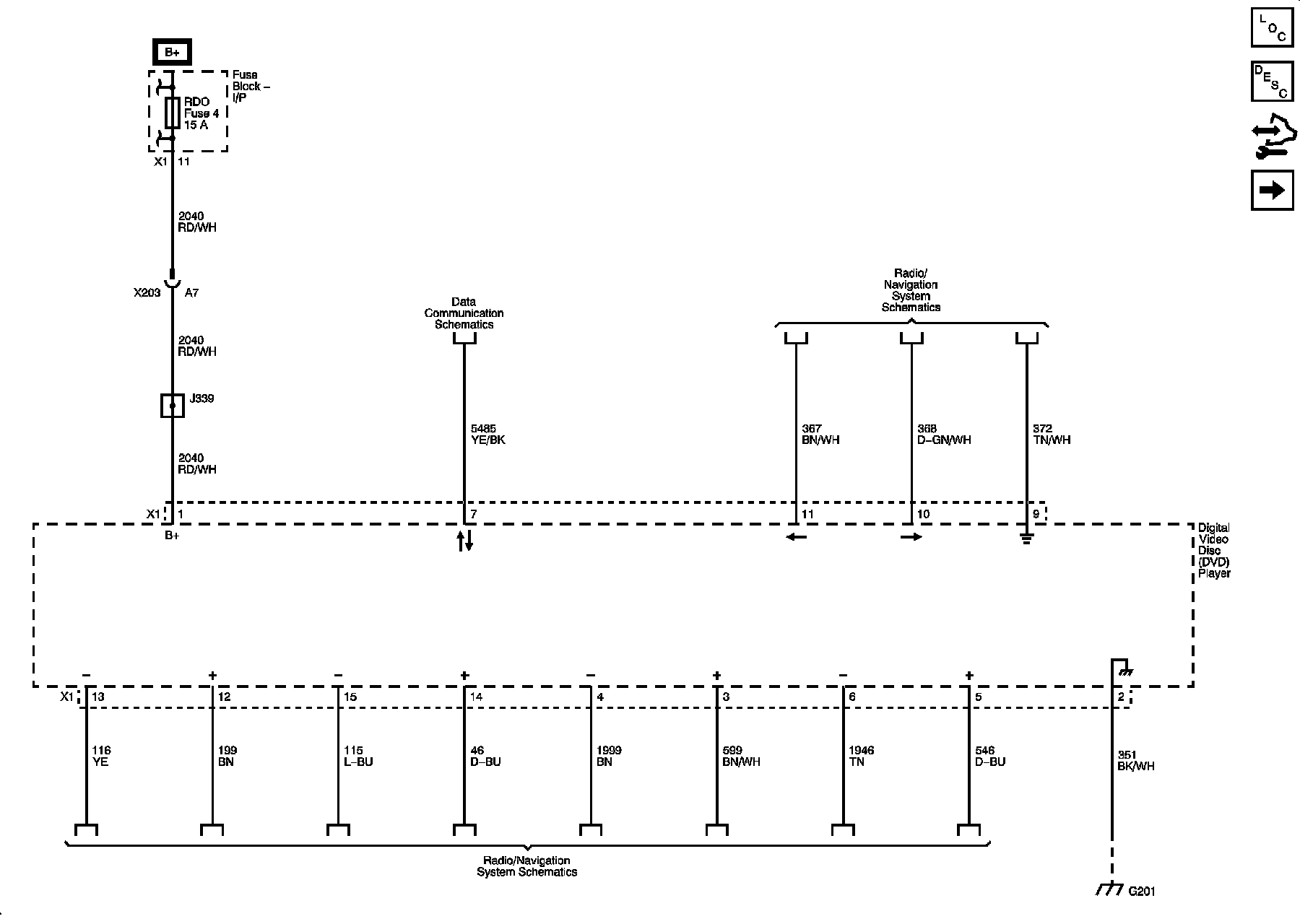

Module Ground, Power, Serial Data and References to Radio/Navigation

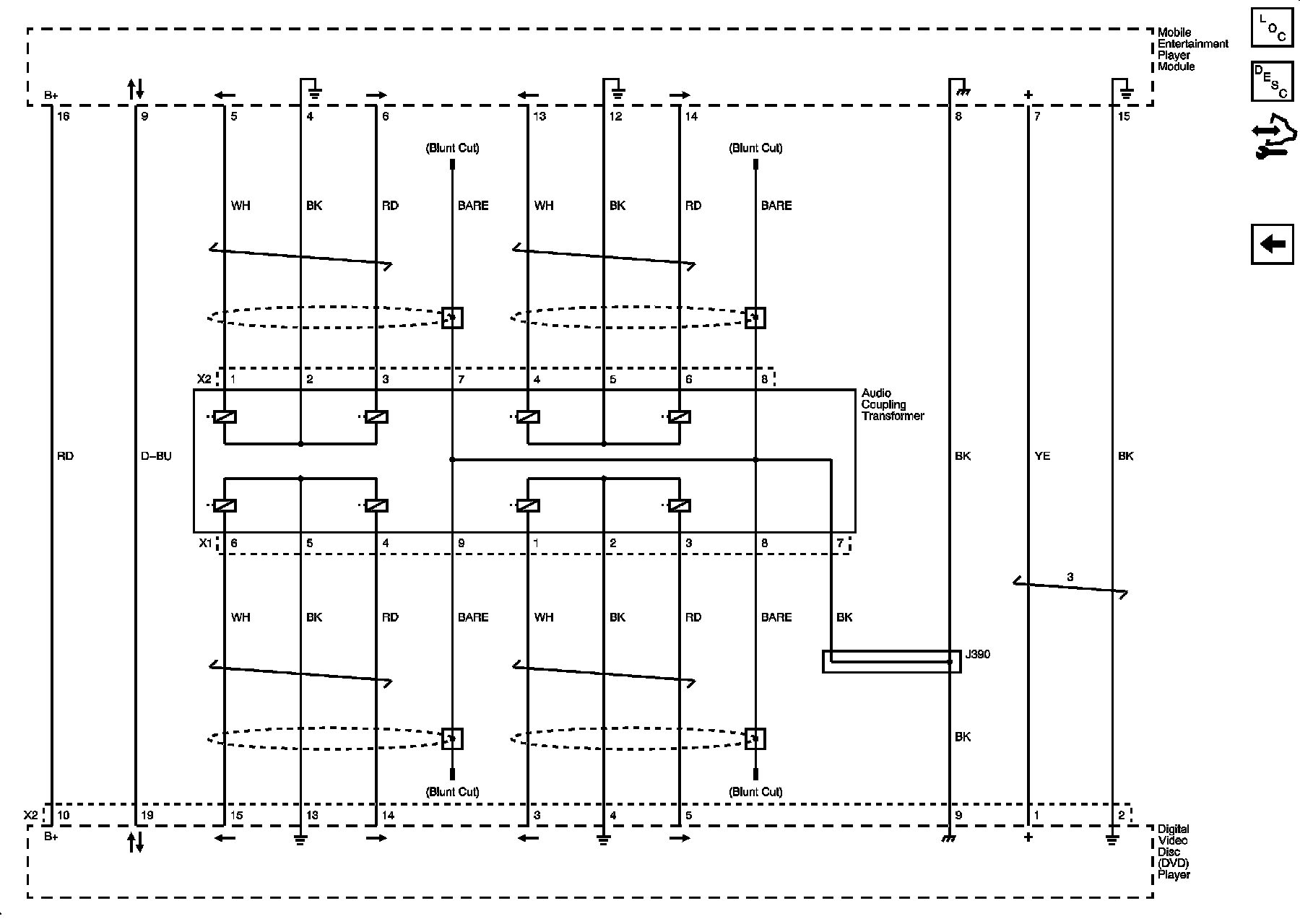

Hard Drive to DVD Player Interface
