Inflatable Restraint Side Impact Module



Component Connector End Views

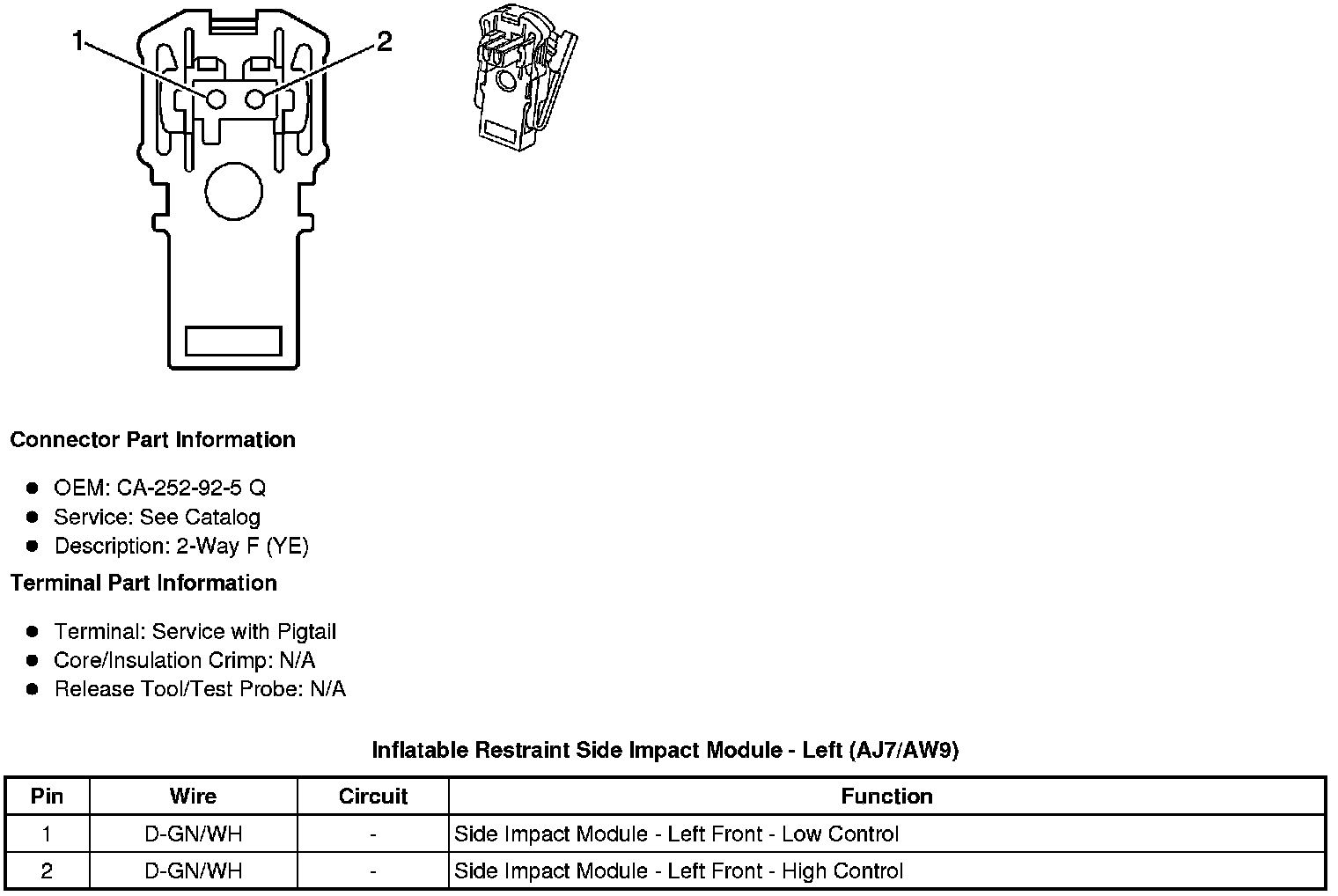

Inflatable Restraint Side Impact Module - Left (AJ7/AW9)





Inflatable Restraint Side Impact Module - Left Rear (AW9)

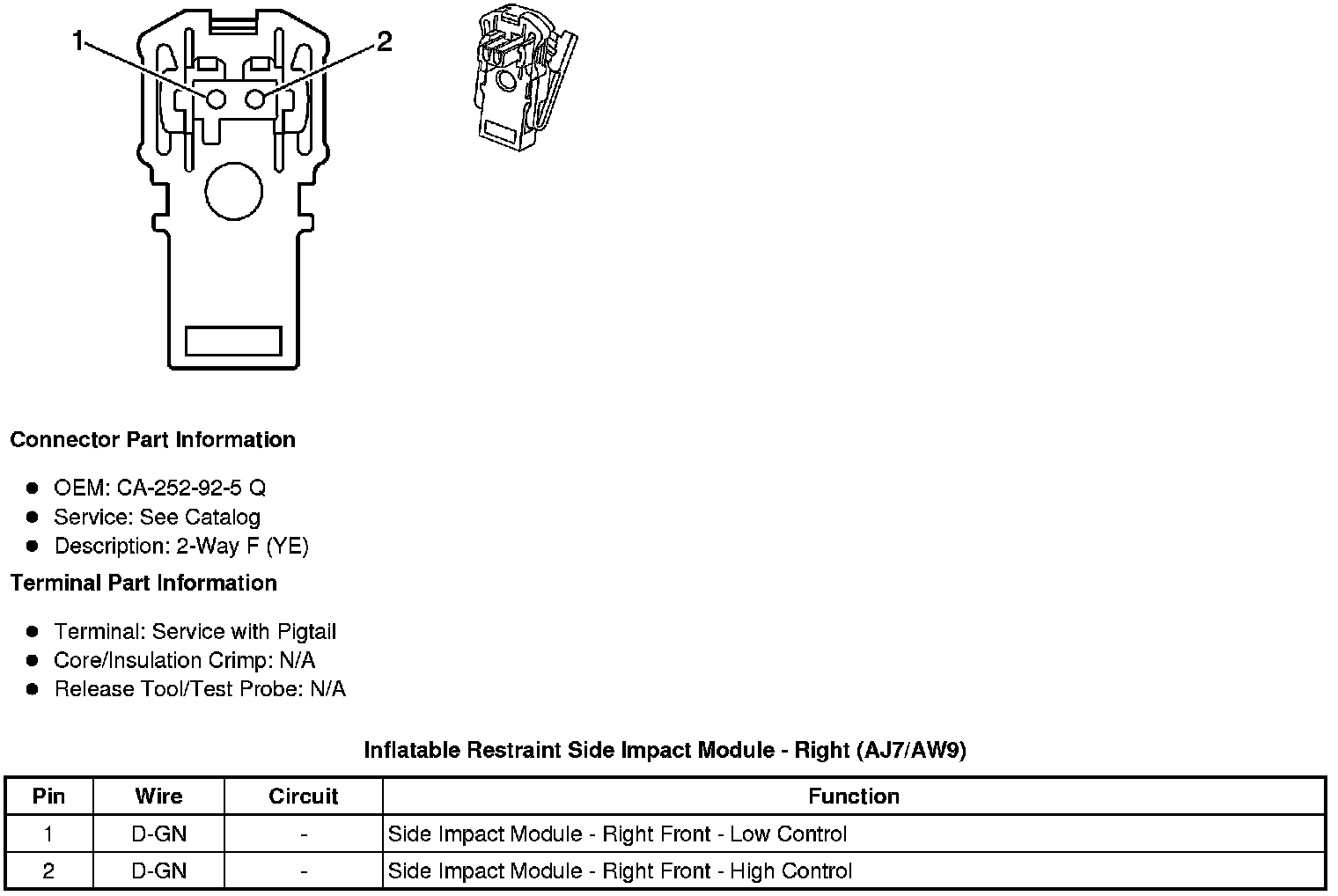

Inflatable Restraint Side Impact Module - Right (AJ7/AW9)

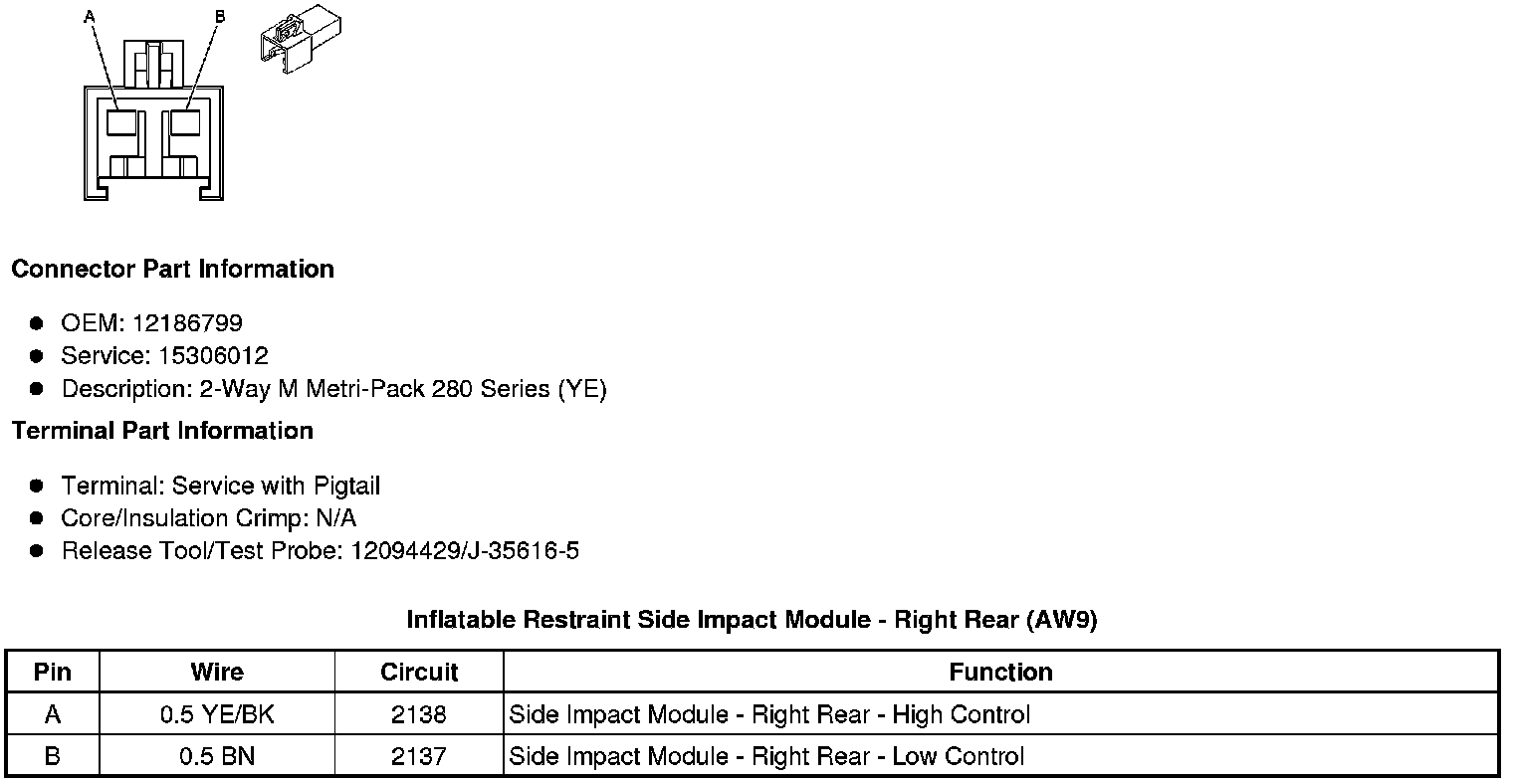

Inflatable Restraint Side Impact Module - Right Rear (AW9)
