Air Door Actuator / Motor, HVAC
>>
Defrost Actuator
Defrost Actuator

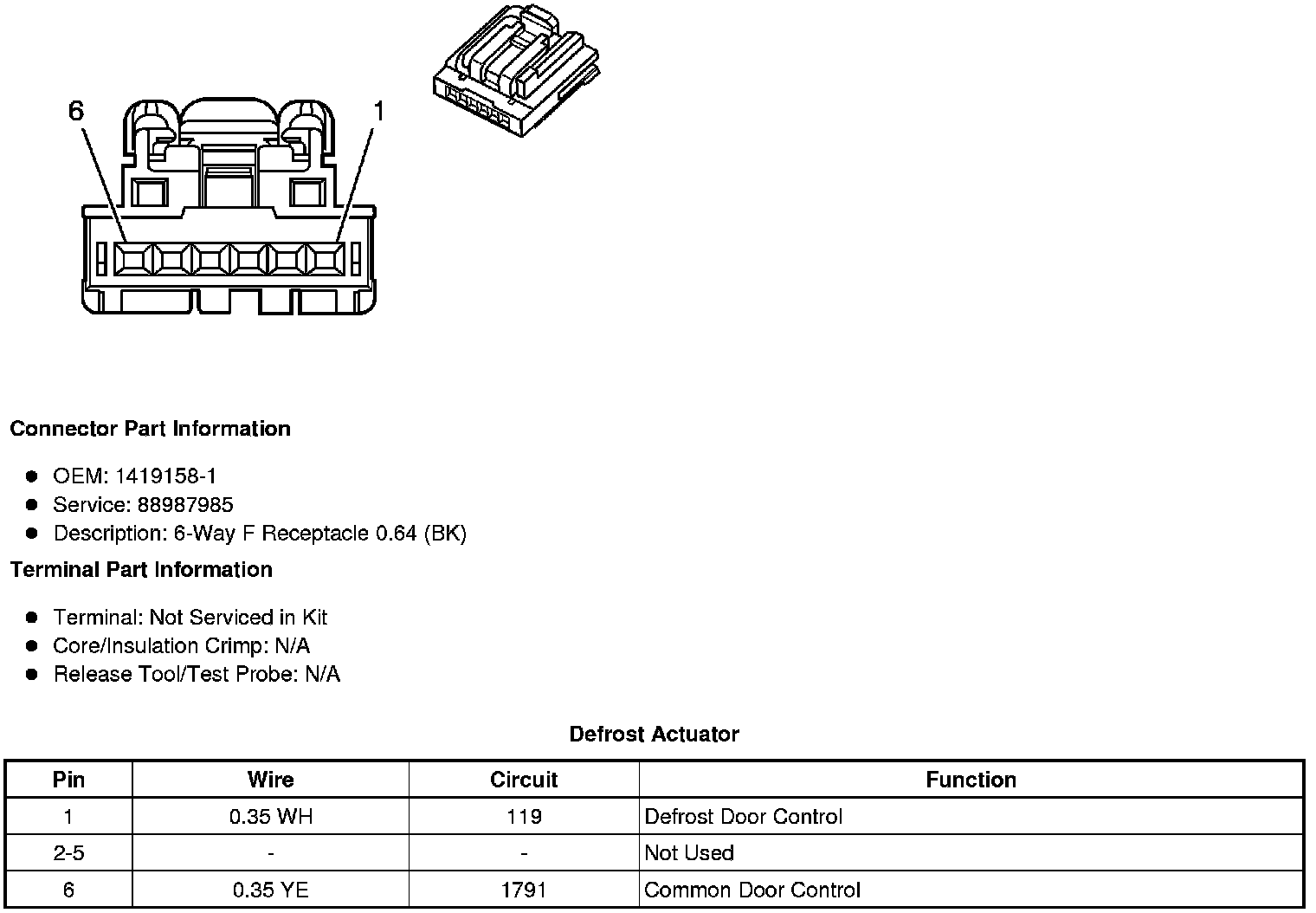

Component Connector End Views
Defrost Actuator
