Air Door Actuator / Motor, HVAC
>>
Mode Actuator - Auxiliary
Mode Actuator - Auxiliary

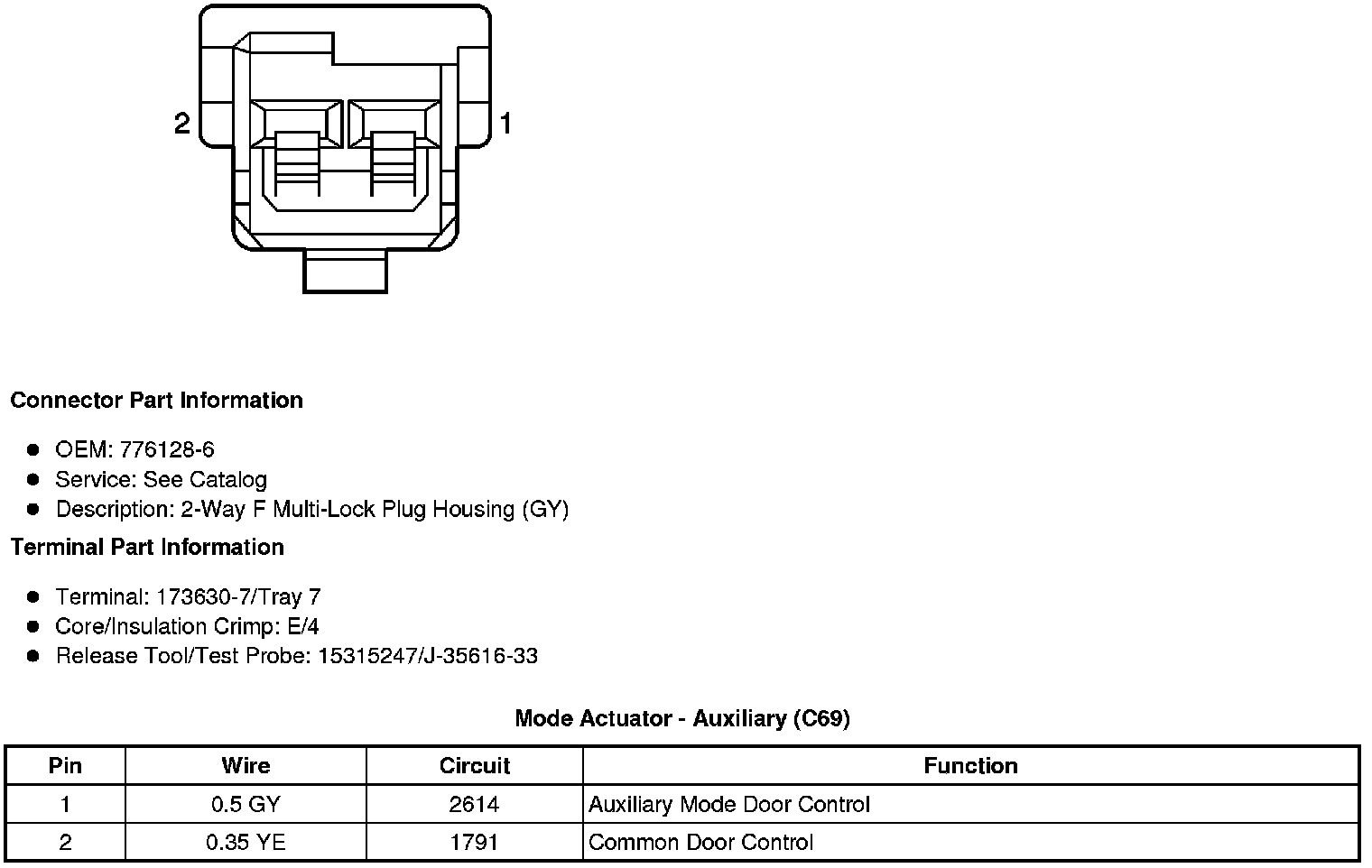

Component Connector End Views
Mode Actuator - Auxiliary (C69)
