Vent and Floor Actuator
Vent and Floor Actuator

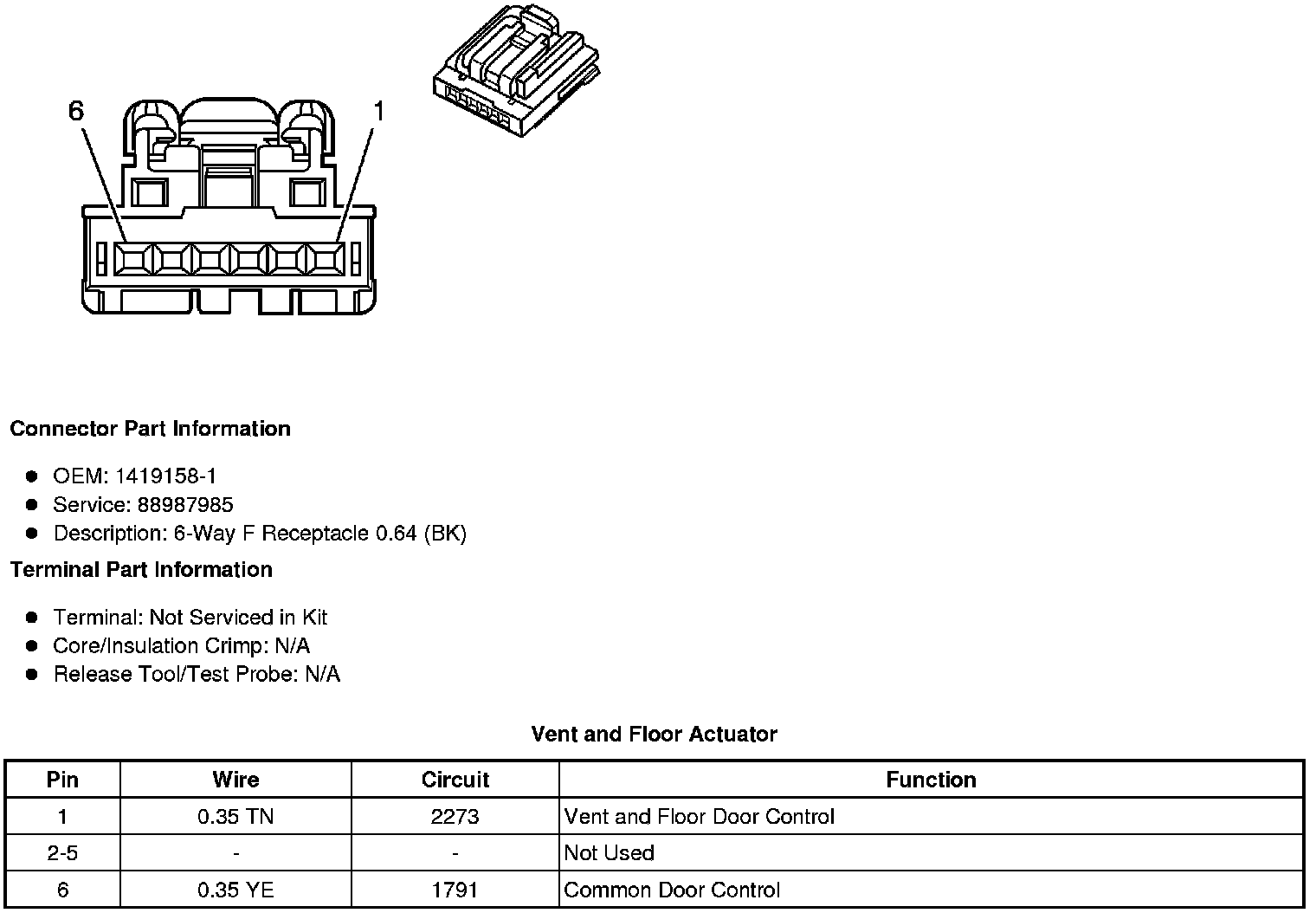

Component Connector End Views
Vent and Floor Actuator
