Auxiliary Power Outlet

Component Connector End Views

Auxiliary Power Outlet - 115VAC (KC7)

Auxiliary Power Outlet - Front

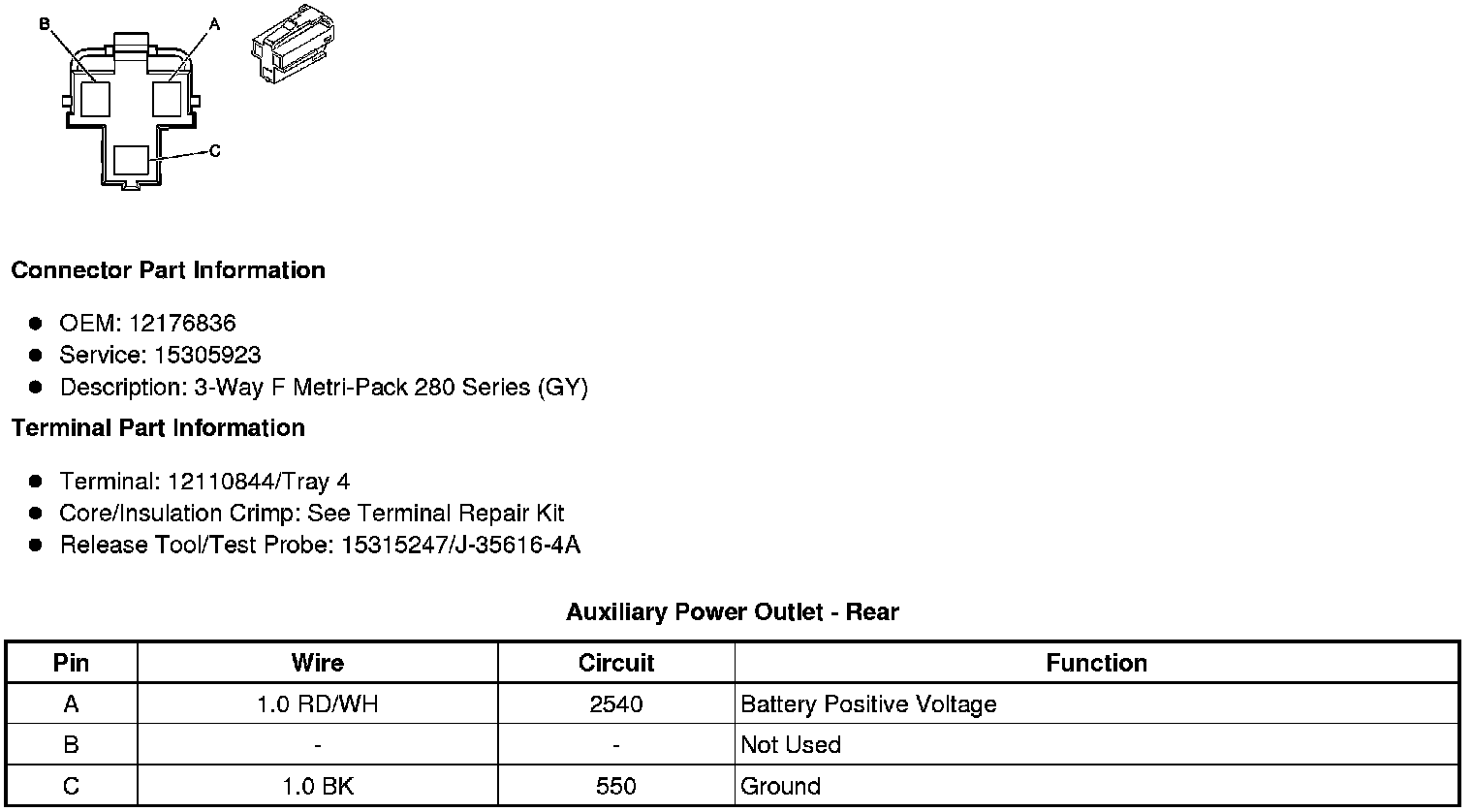

Auxiliary Power Outlet - Rear
