Chevy Truck
>>
2008
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
Blower Motor
Component Connector End Views

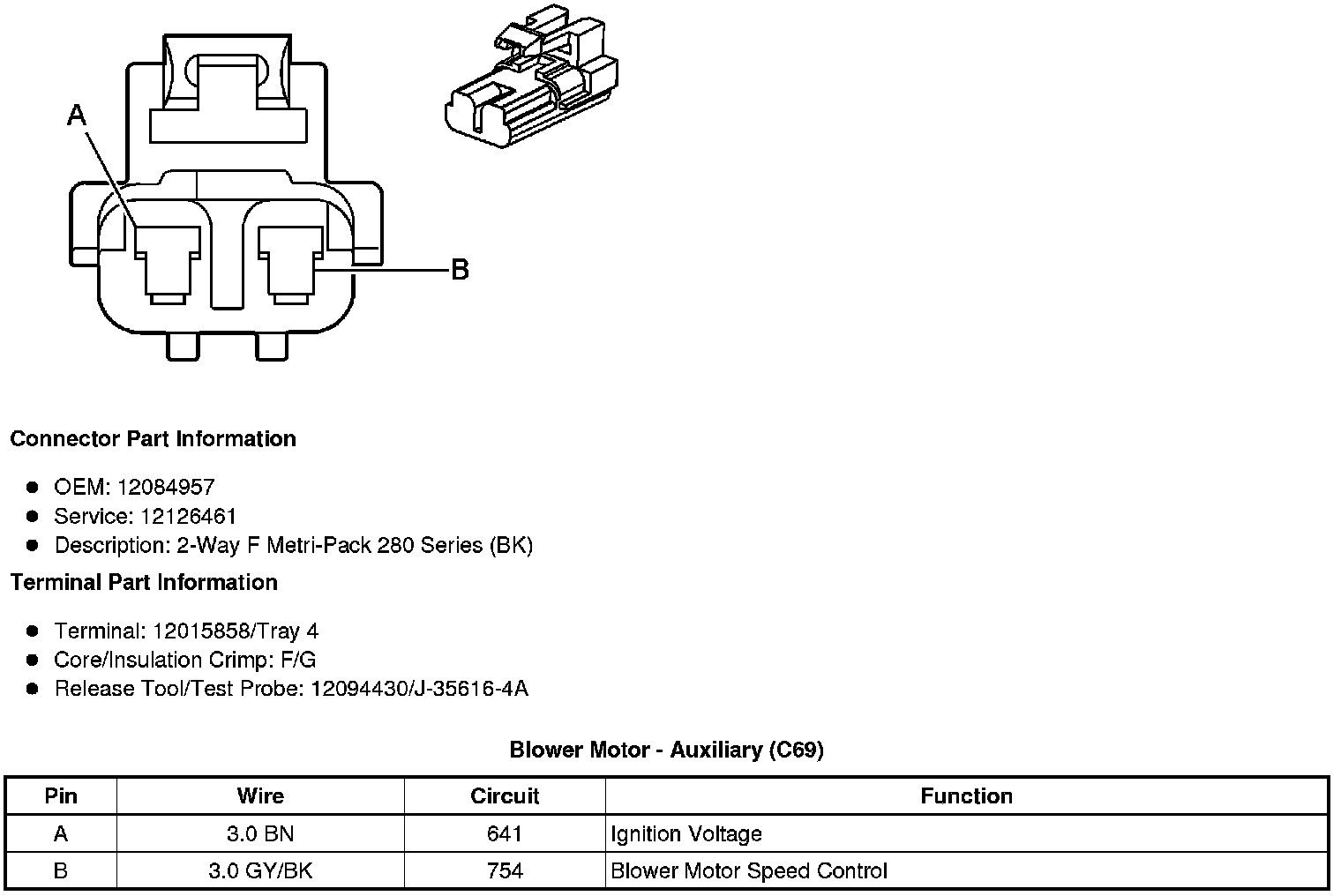

Blower Motor
Blower Motor
- Auxiliary (C69)
