Power Sliding Door Release Actuator



Component Connector End Views

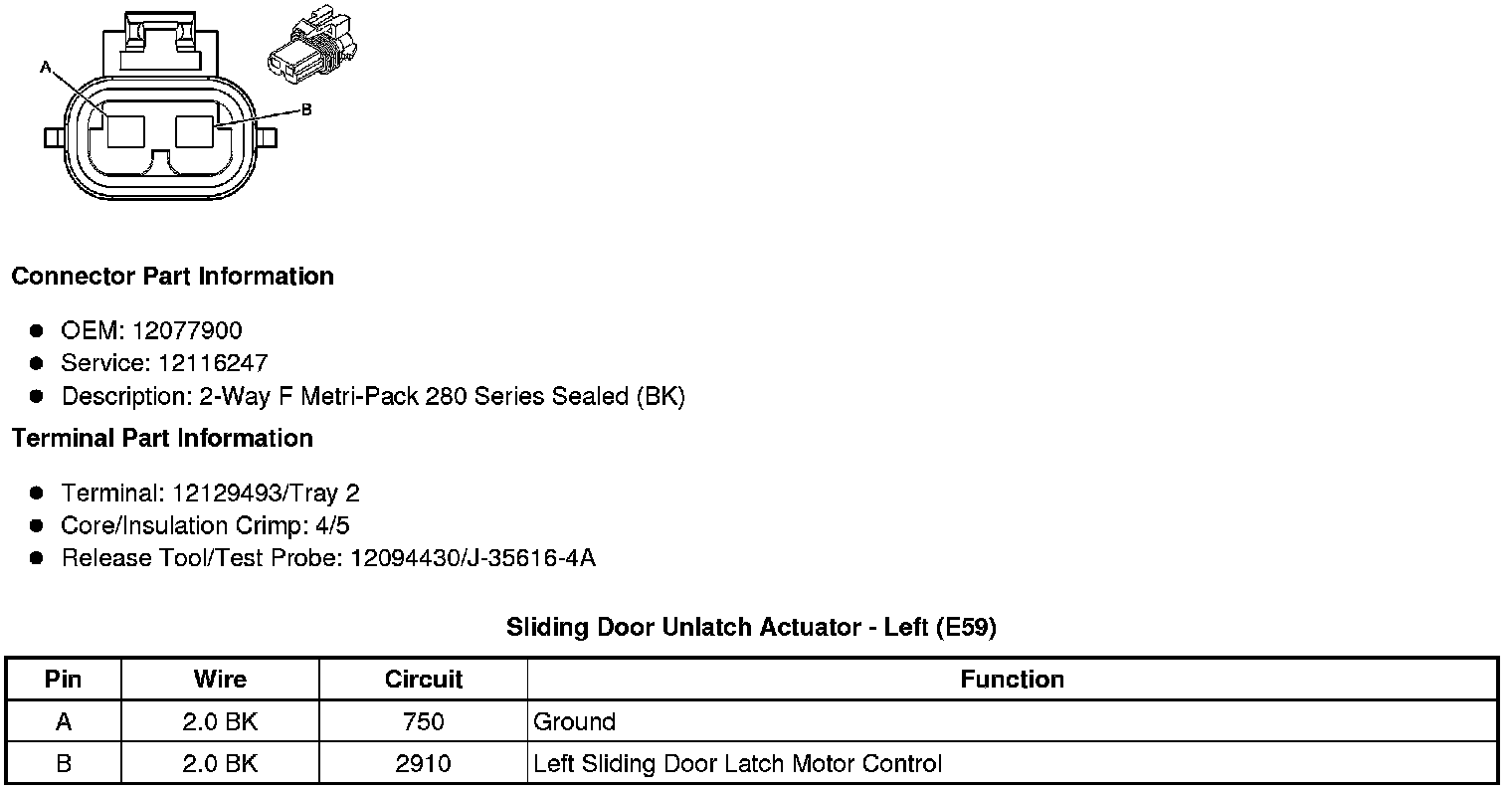

Sliding Door Unlatch Actuator - Left (E59)

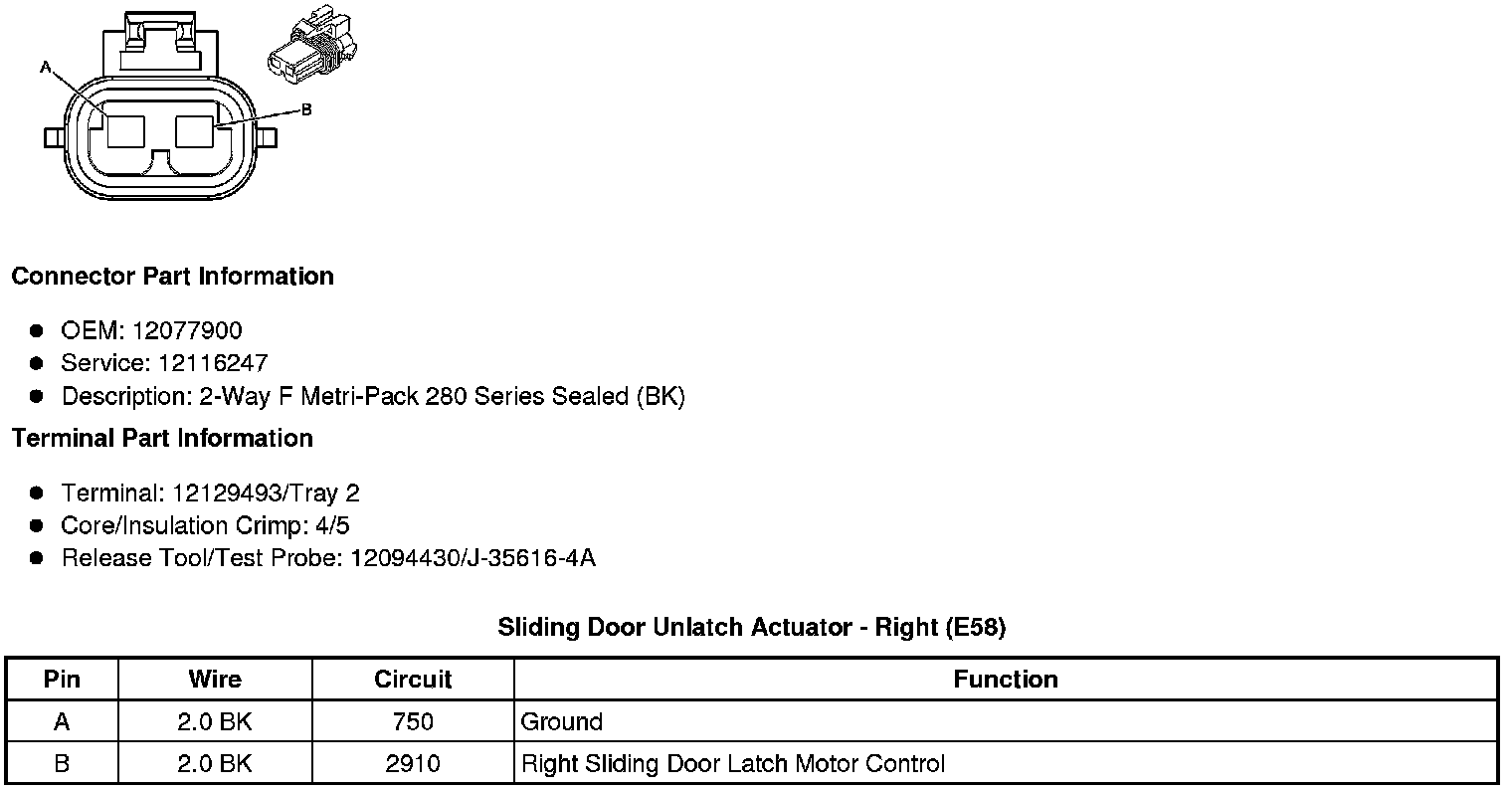

Sliding Door Unlatch Actuator - Right (E58)
