Sliding Door Electrical Contact



Component Connector End Views

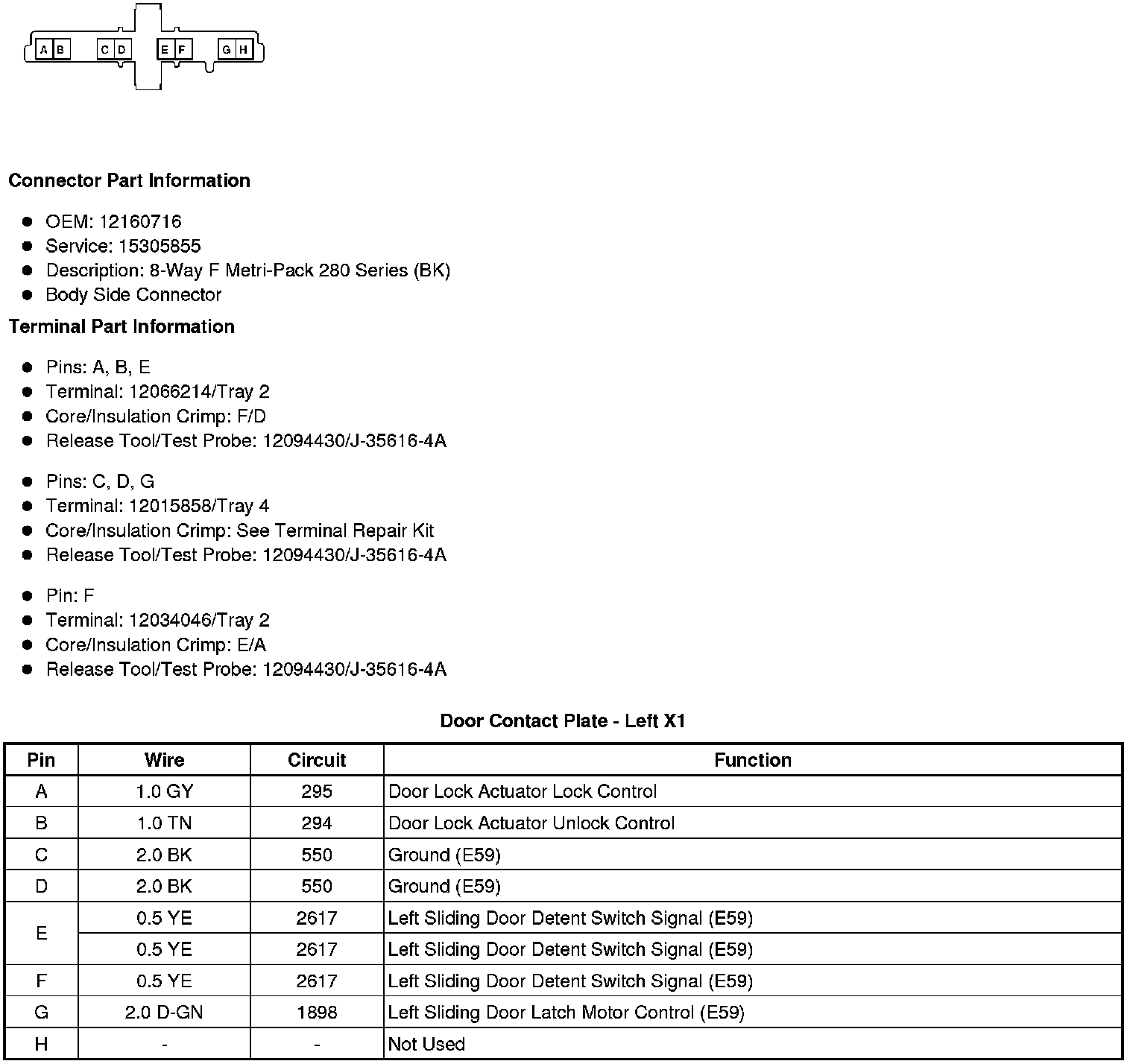

Door Contact Plate - Left X1

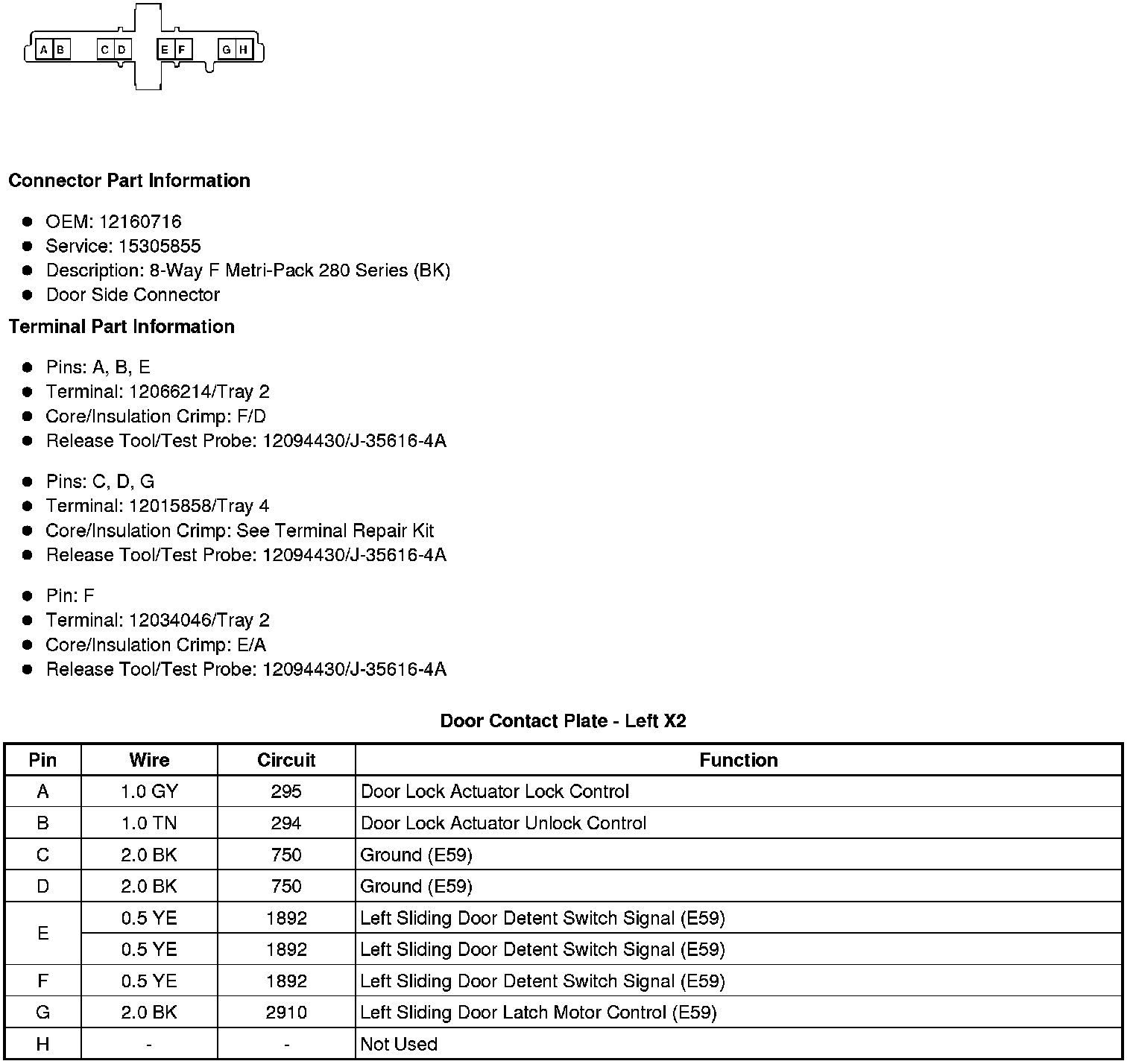

Door Contact Plate - Left X2

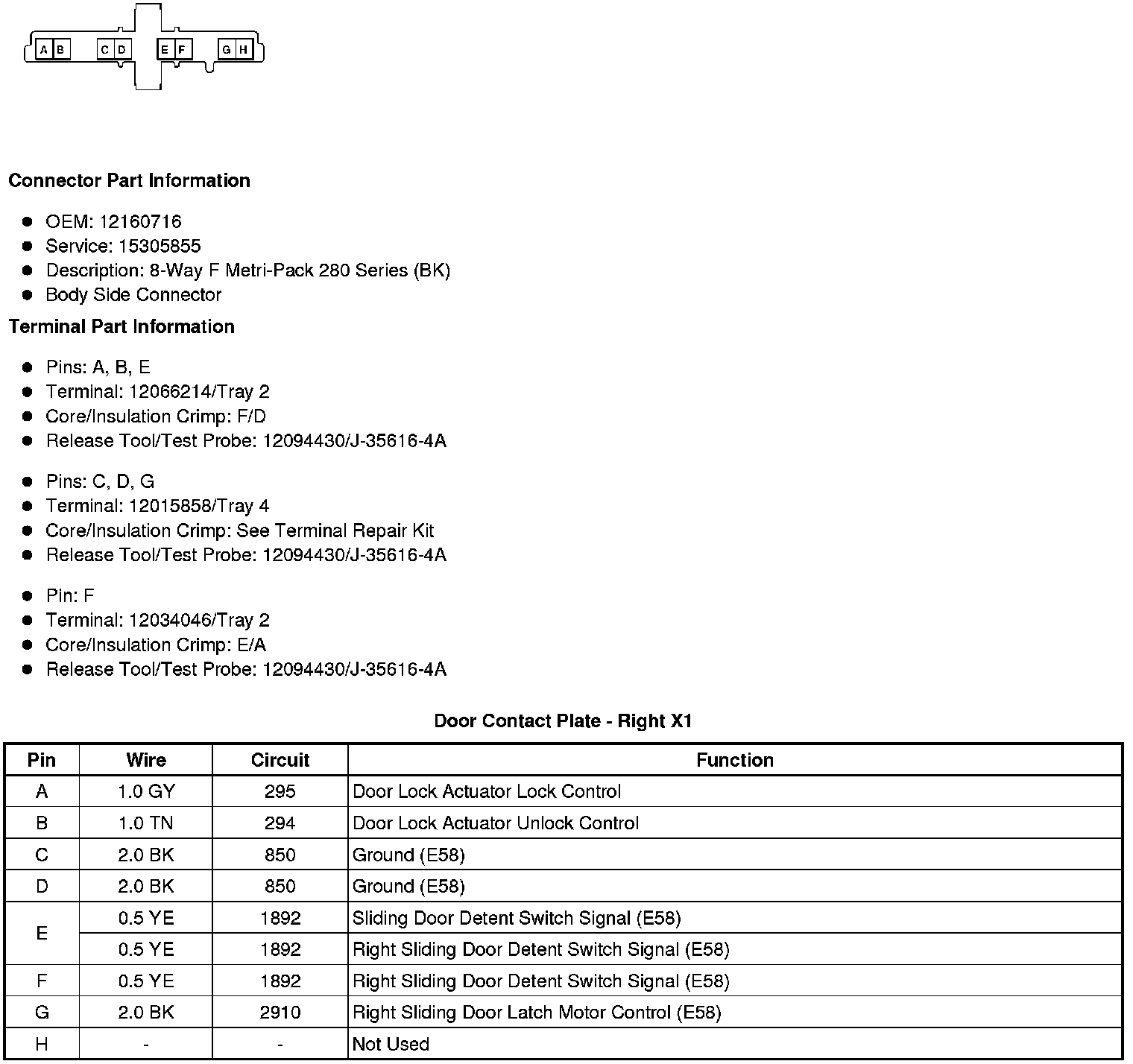

Door Contact Plate - Right X1





Door Contact Plate - Right X2
