System Diagram



Component Connector End Views

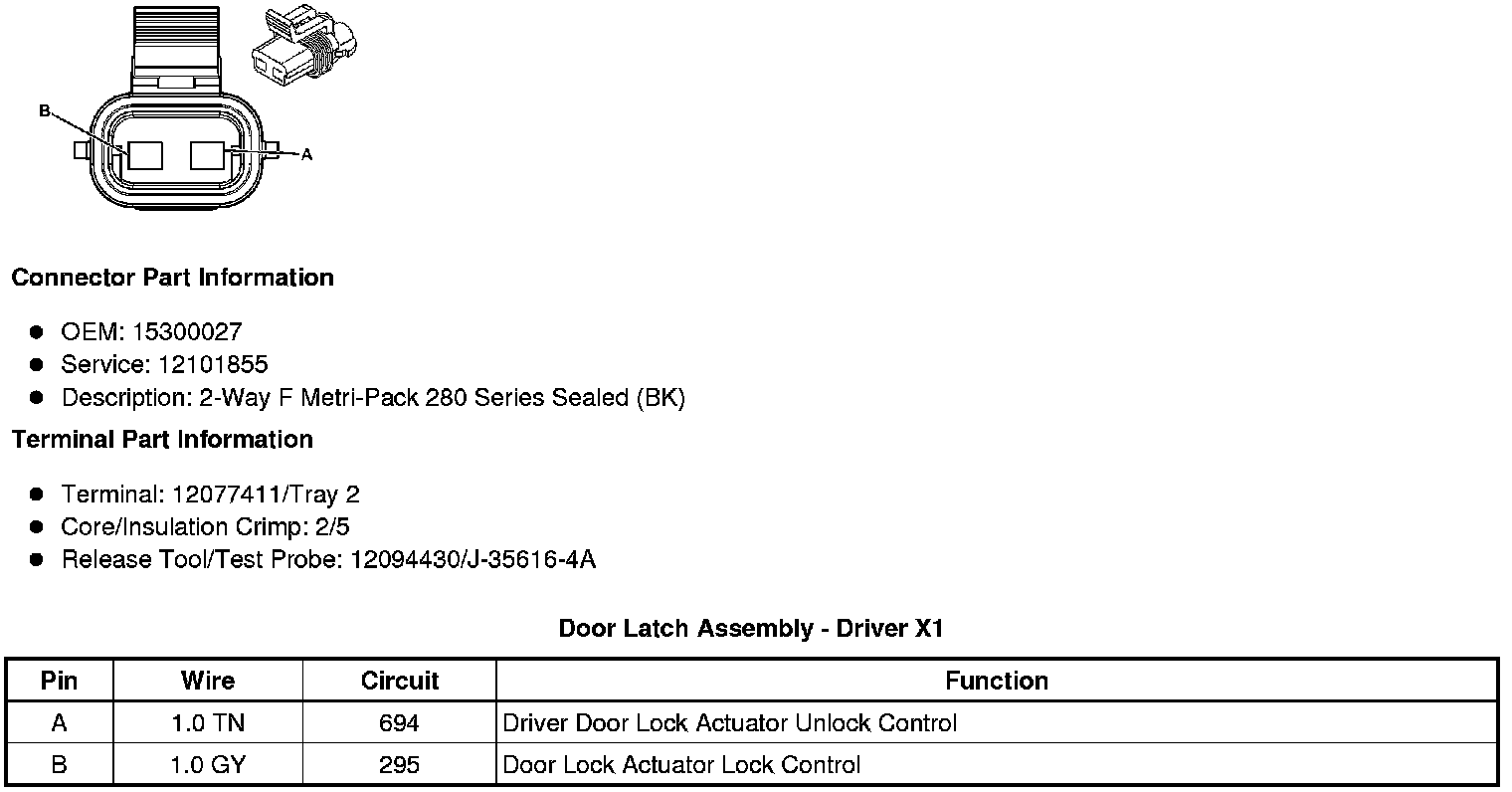

Door Latch Assembly - Driver X1






Door Latch Assembly - Driver X2






Door Latch Assembly - Passenger X1

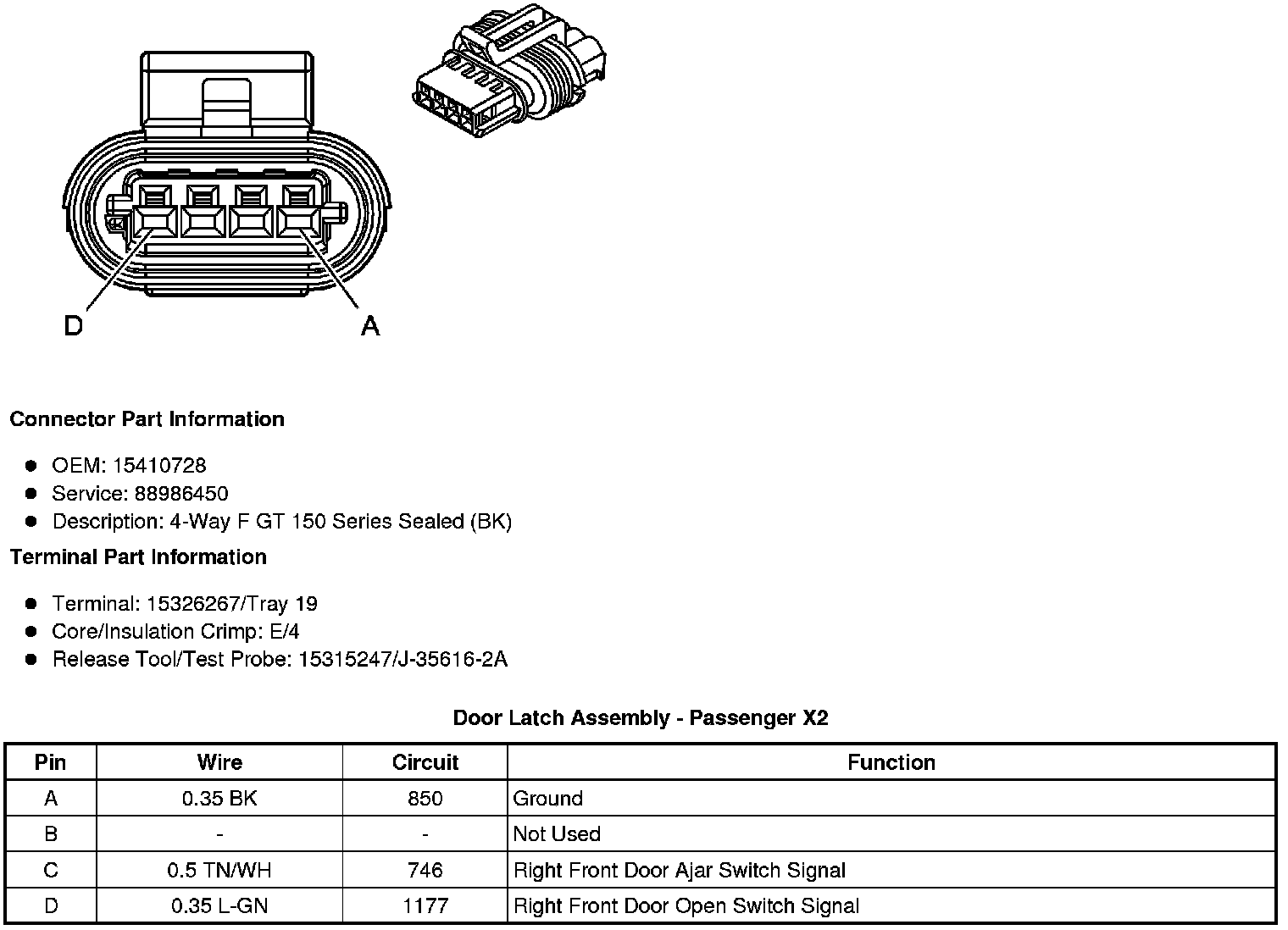

Door Latch Assembly - Passenger X2
