Map Light
>>
Roof Rail Reading Lamp
Roof Rail Reading Lamp
Component Connector End Views
Roof Rail Reading Lamp - Left

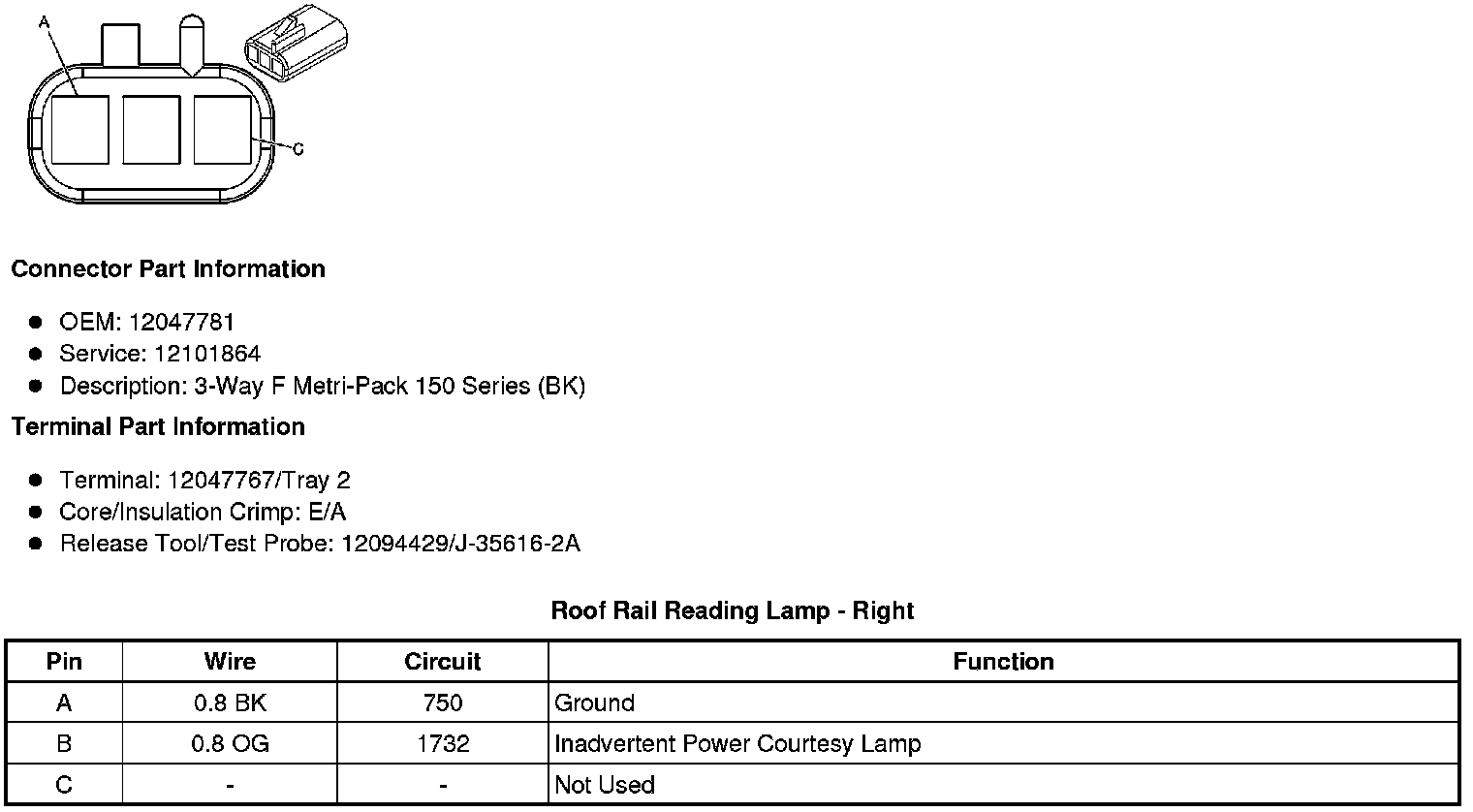

Roof Rail Reading Lamp - Right
