Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2008
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
System Diagram
Component Connector End Views
Outside Rearview Mirror - Driver

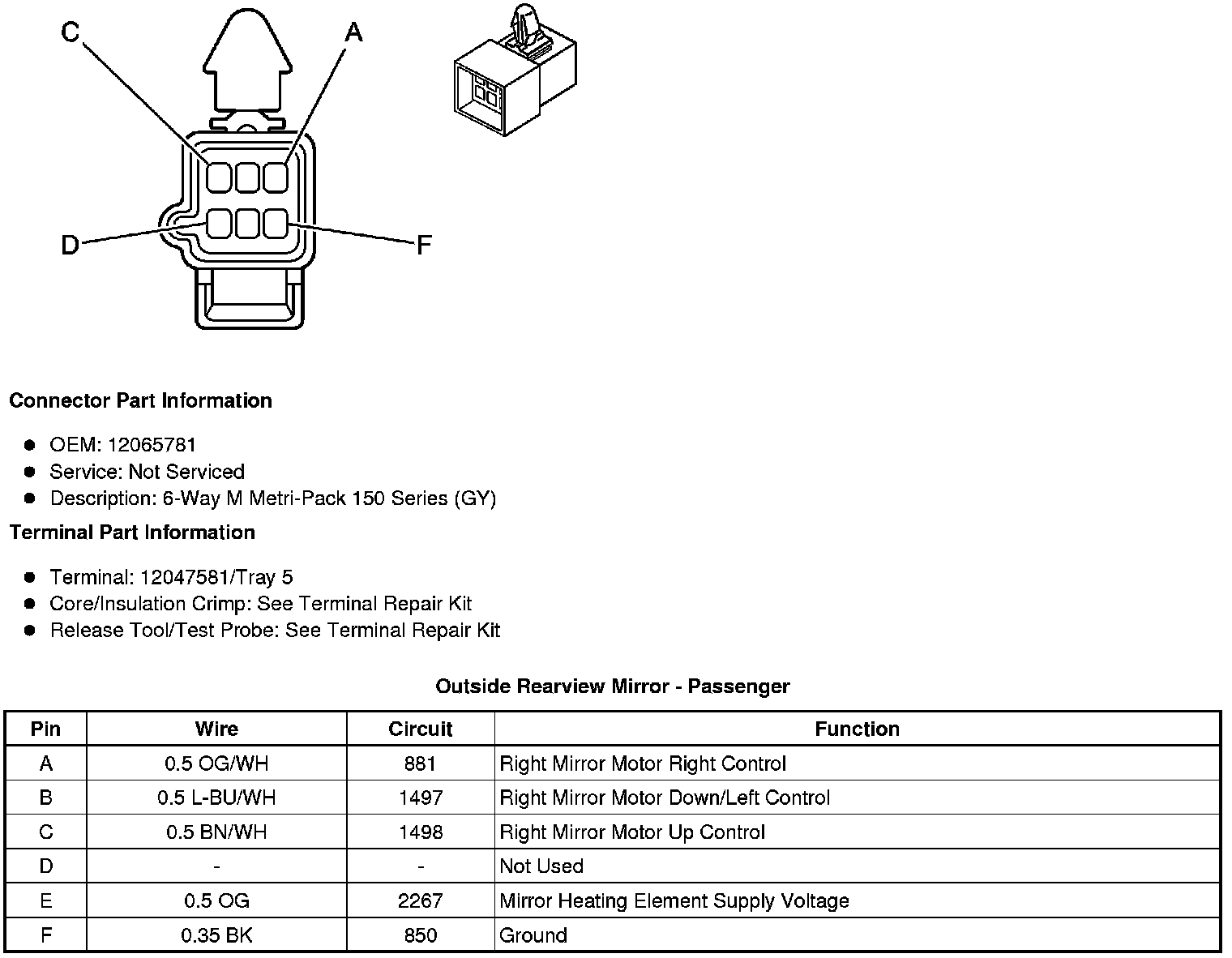

Outside Rearview Mirror - Passenger
