X314

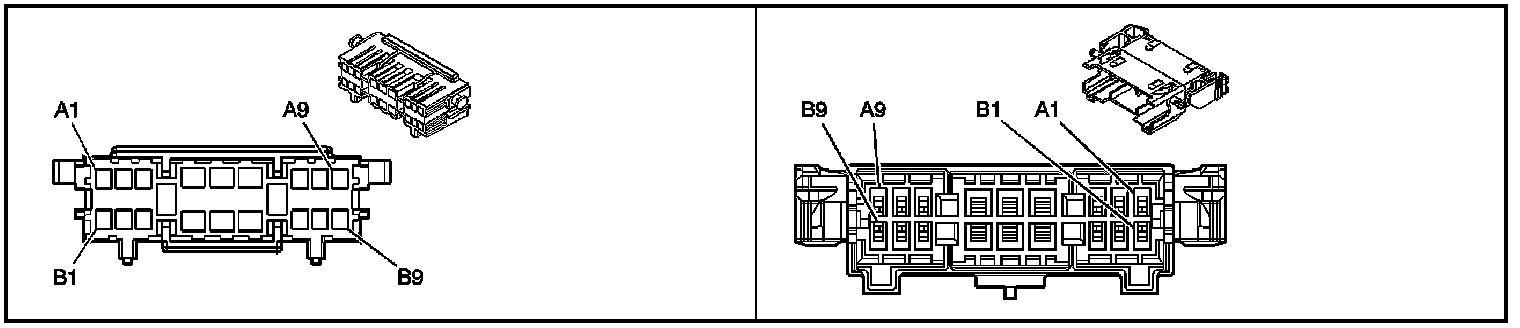

Inline Harness Connector End Views

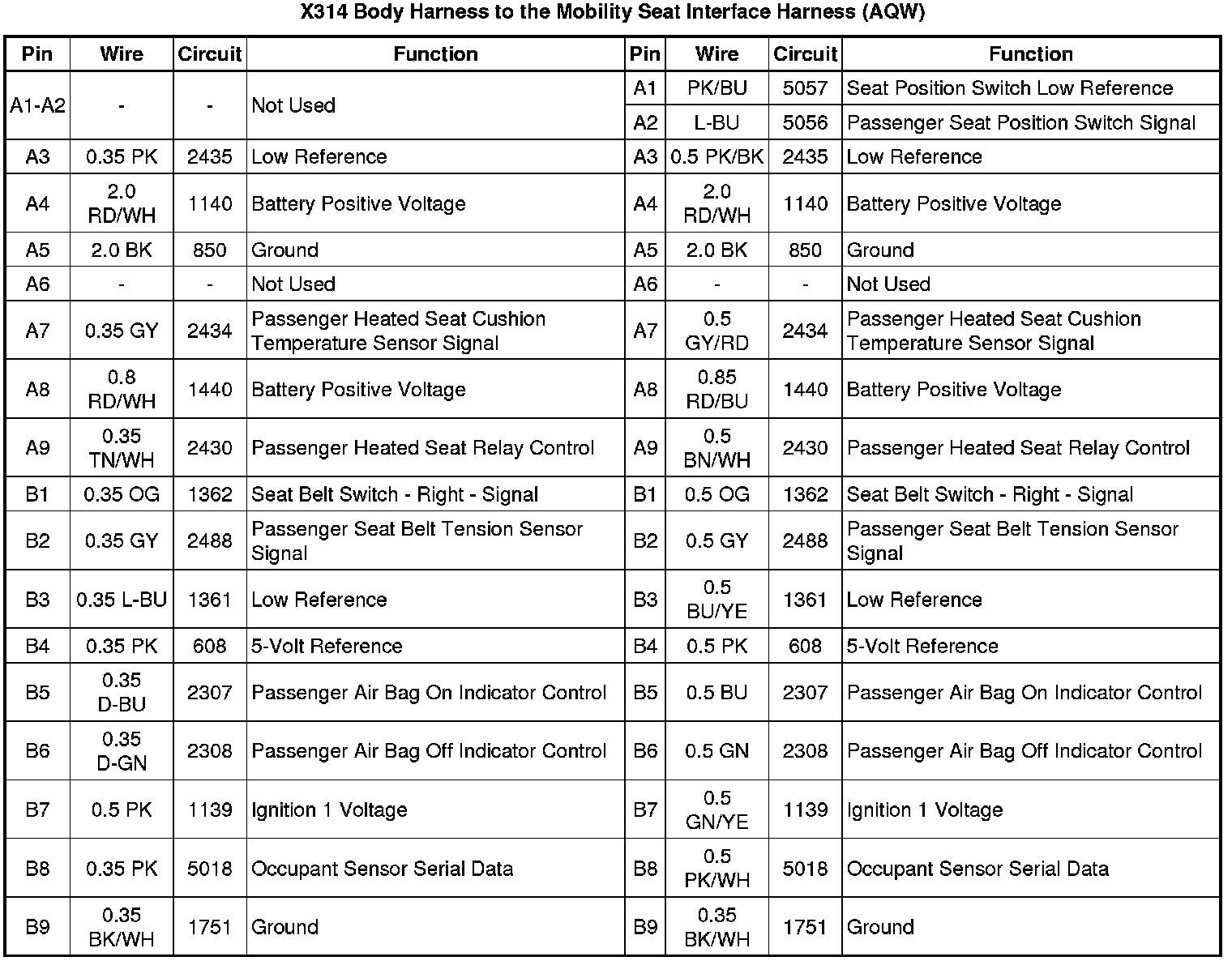

X314 Body Harness to the Mobility Seat Interface Harness (AQW)

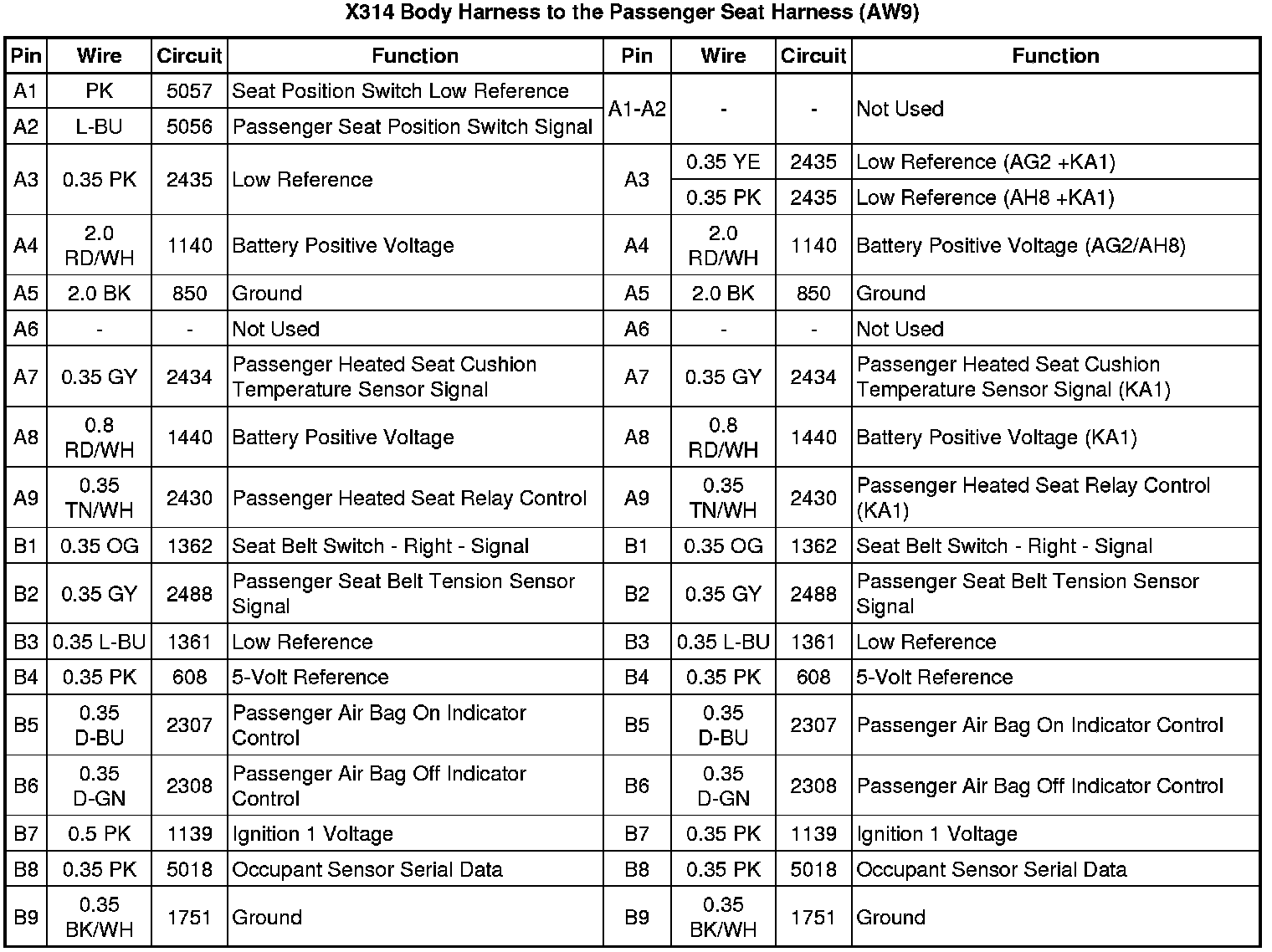

X314 Body Harness to the Passenger Seat Harness (AW9)













X314 Body Harness to the Passenger Seat Harness (- AQW/AW9)
