Power Door Lock Actuator



Component Connector End Views

Door Lock Actuator - Left Middle





Door Lock Actuator - Liftgate

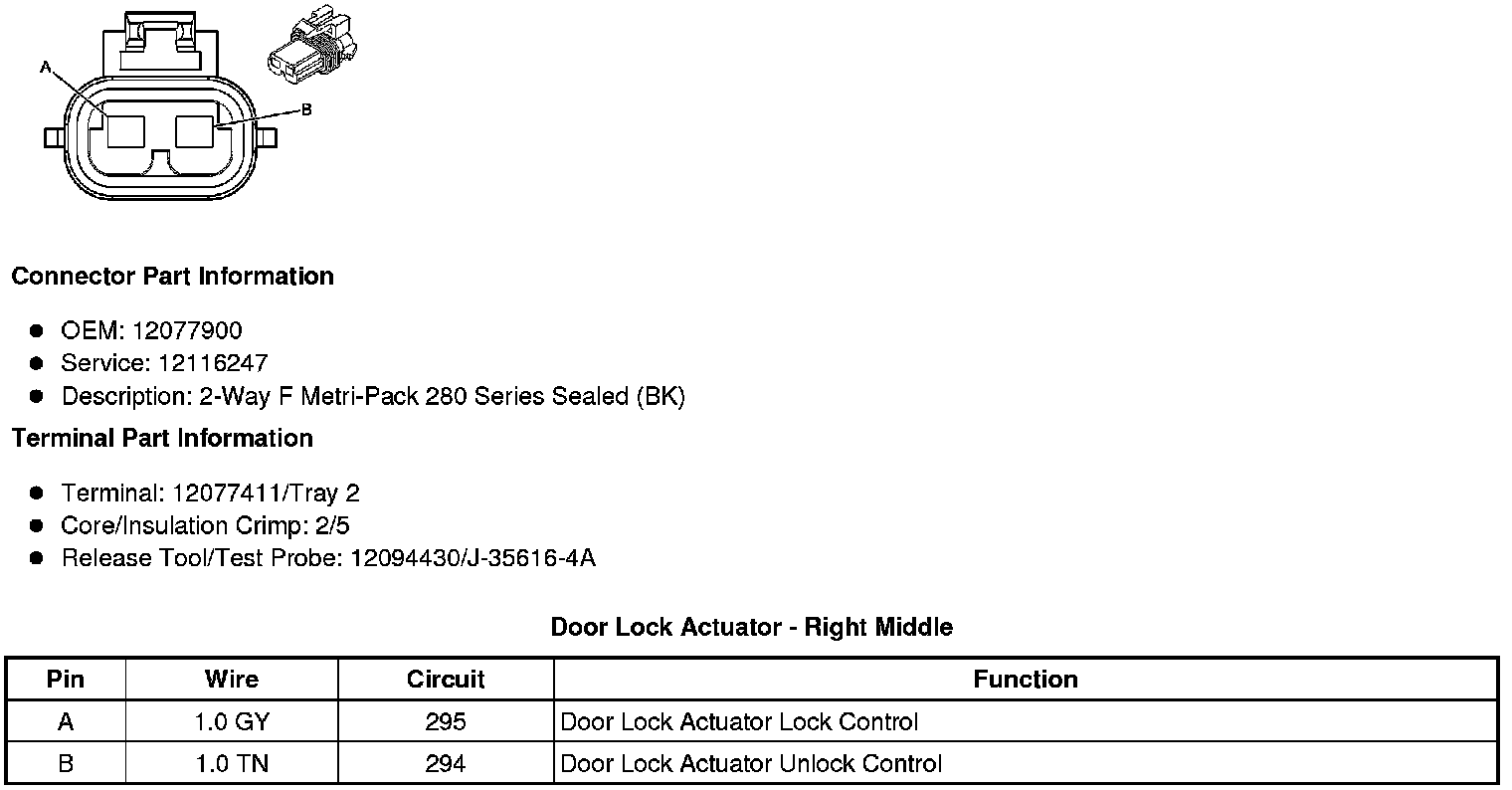

Door Lock Actuator - Right Middle
