Seat Belt Retractor
Seat Belt Retractor

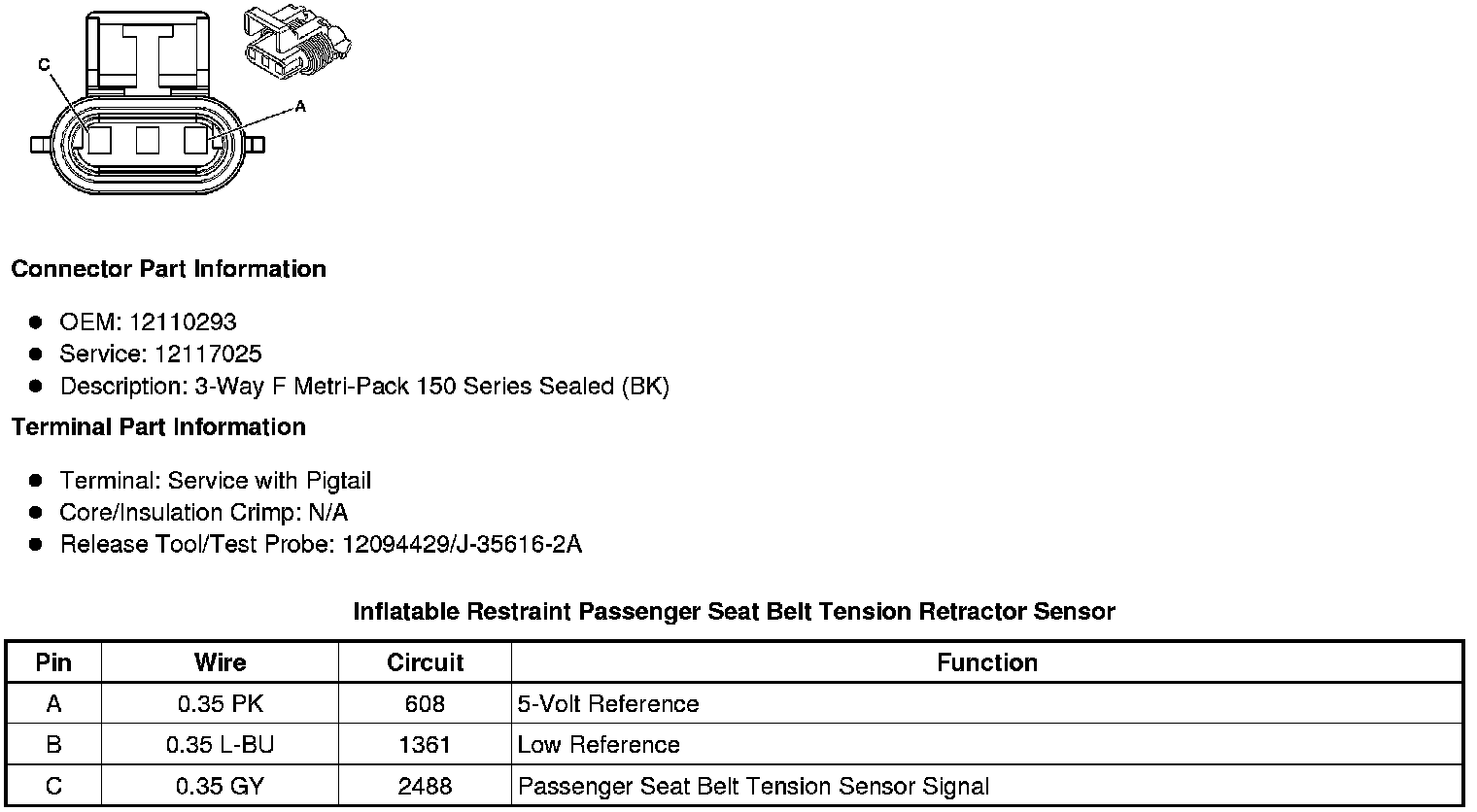

Component Connector End Views
Inflatable Restraint Passenger
Seat Belt
Tension Retractor Sensor
