Transmission Mode Switch, A/T

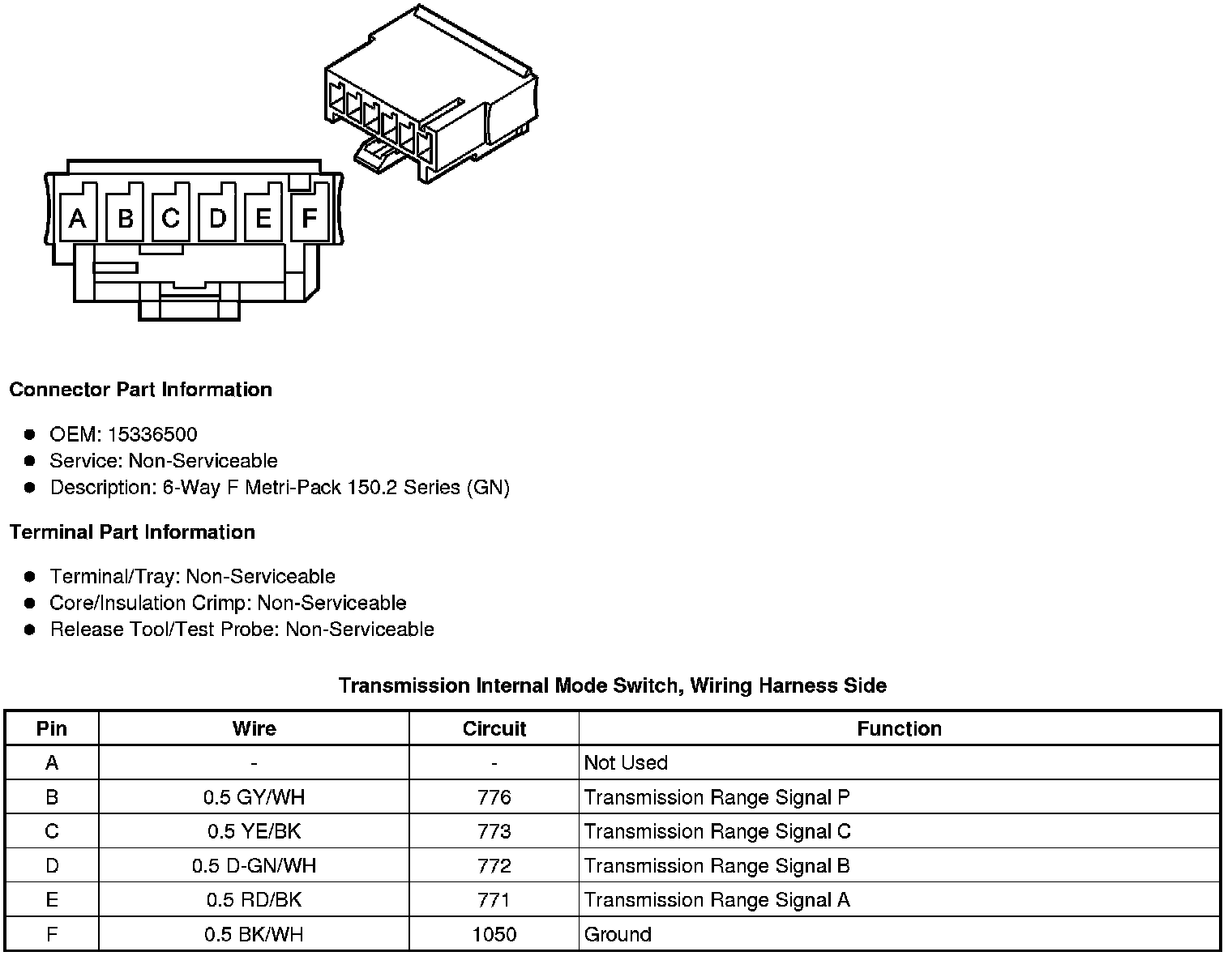

Component Connector End Views

Transmission Internal Mode Switch, Wiring Harness Side
