Power Window Switch

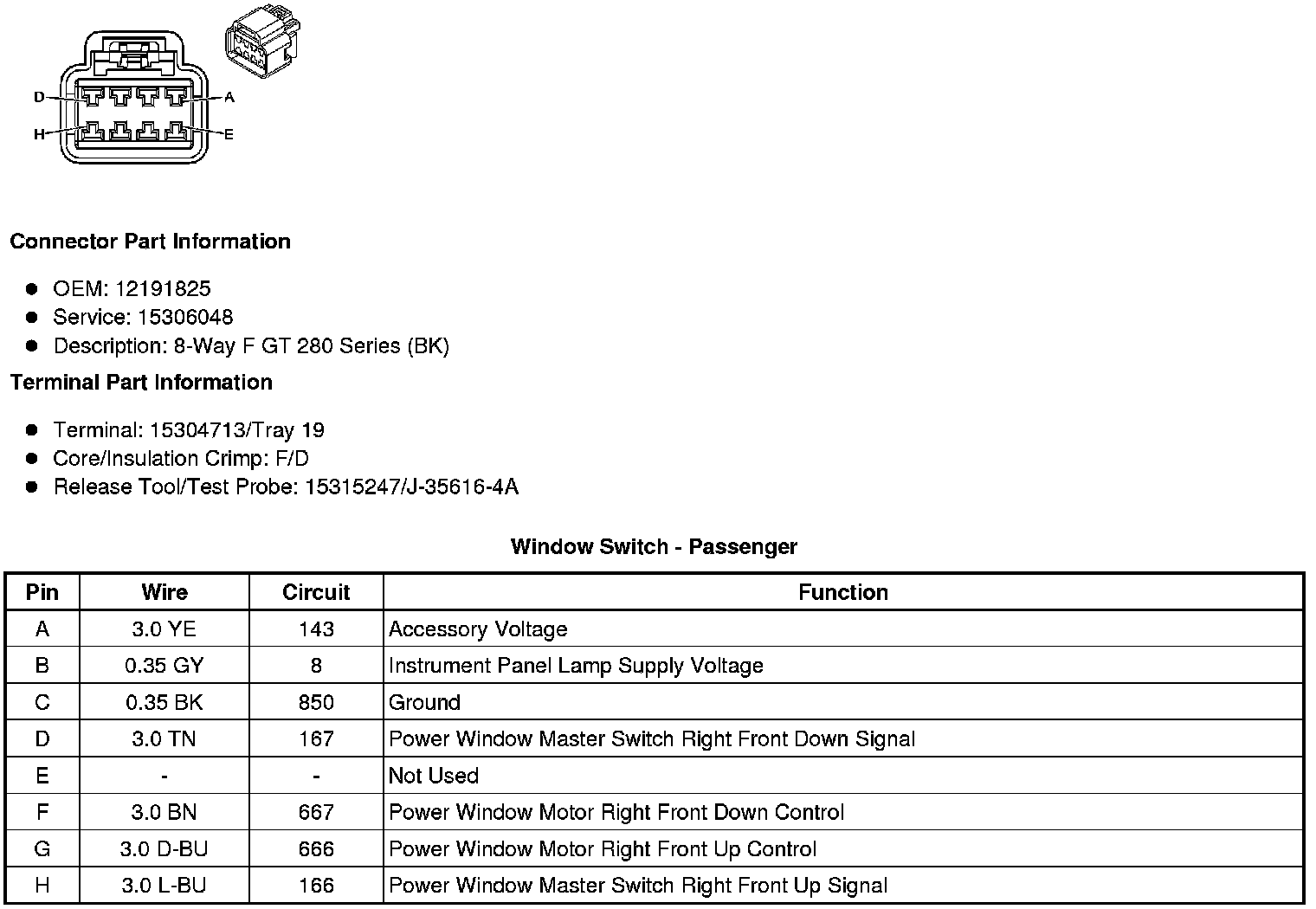

Component Connector End Views

Window Switch - Driver





Window Switch - Passenger
