Quarter Window Glass

Component Connector End Views

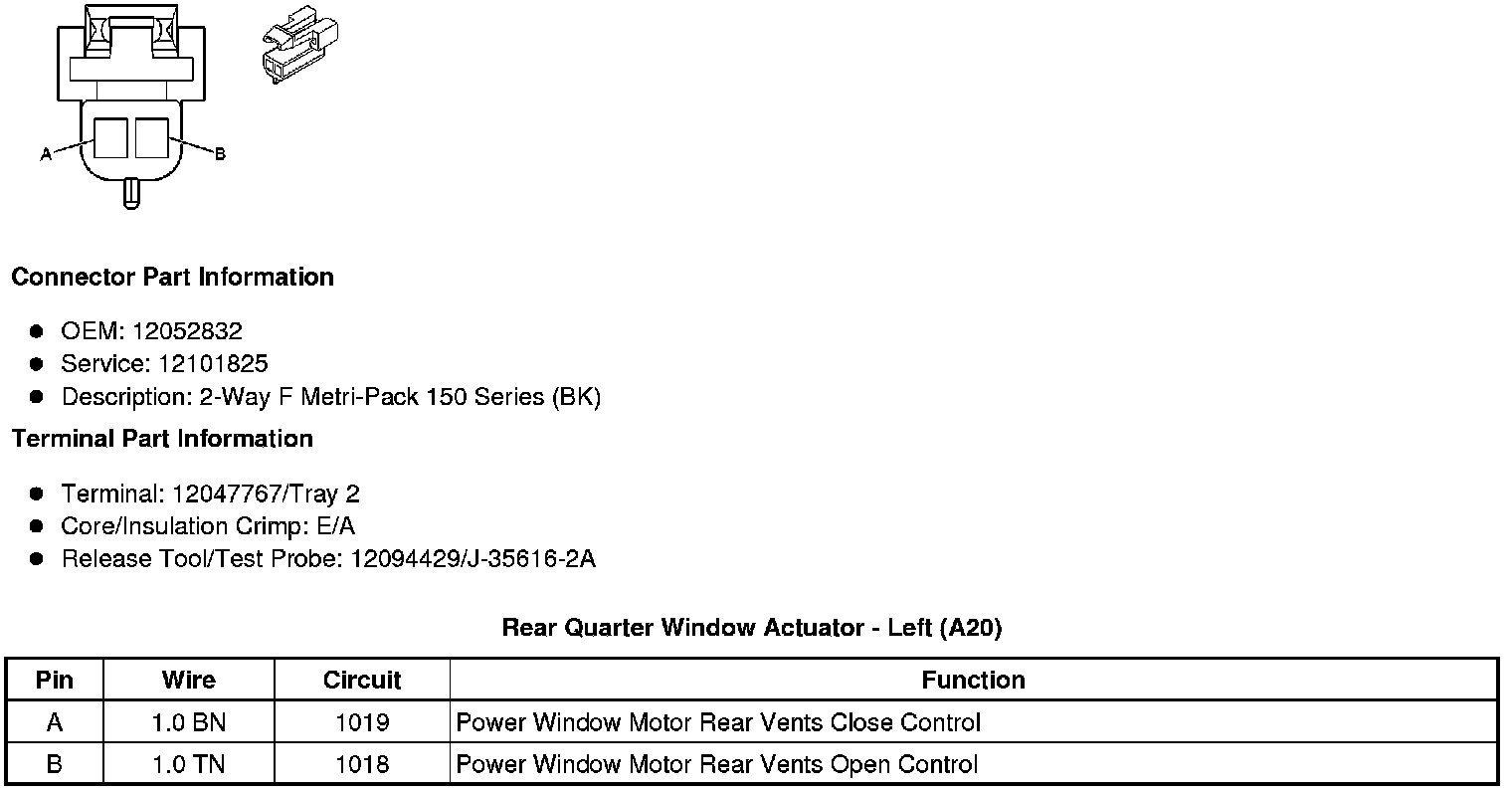

Rear Quarter Window Actuator - Left (A20)

Rear Quarter Window Actuator - Right (A20)
