SIR Schematics (AK5 /AJ7)



SIR Schematics (AK5 /AJ7)

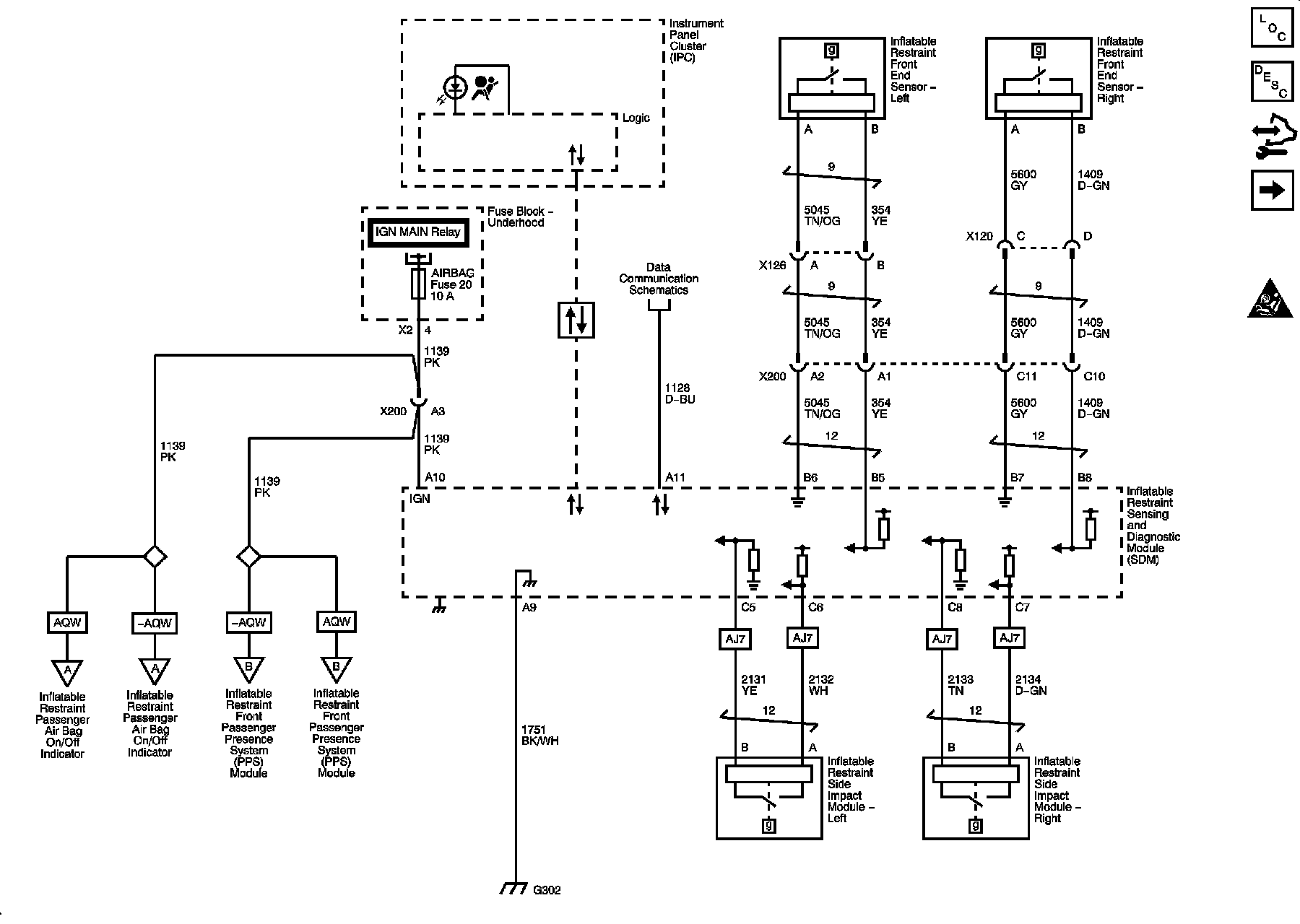

Ground, Impact Sensors, Indicator, and Power

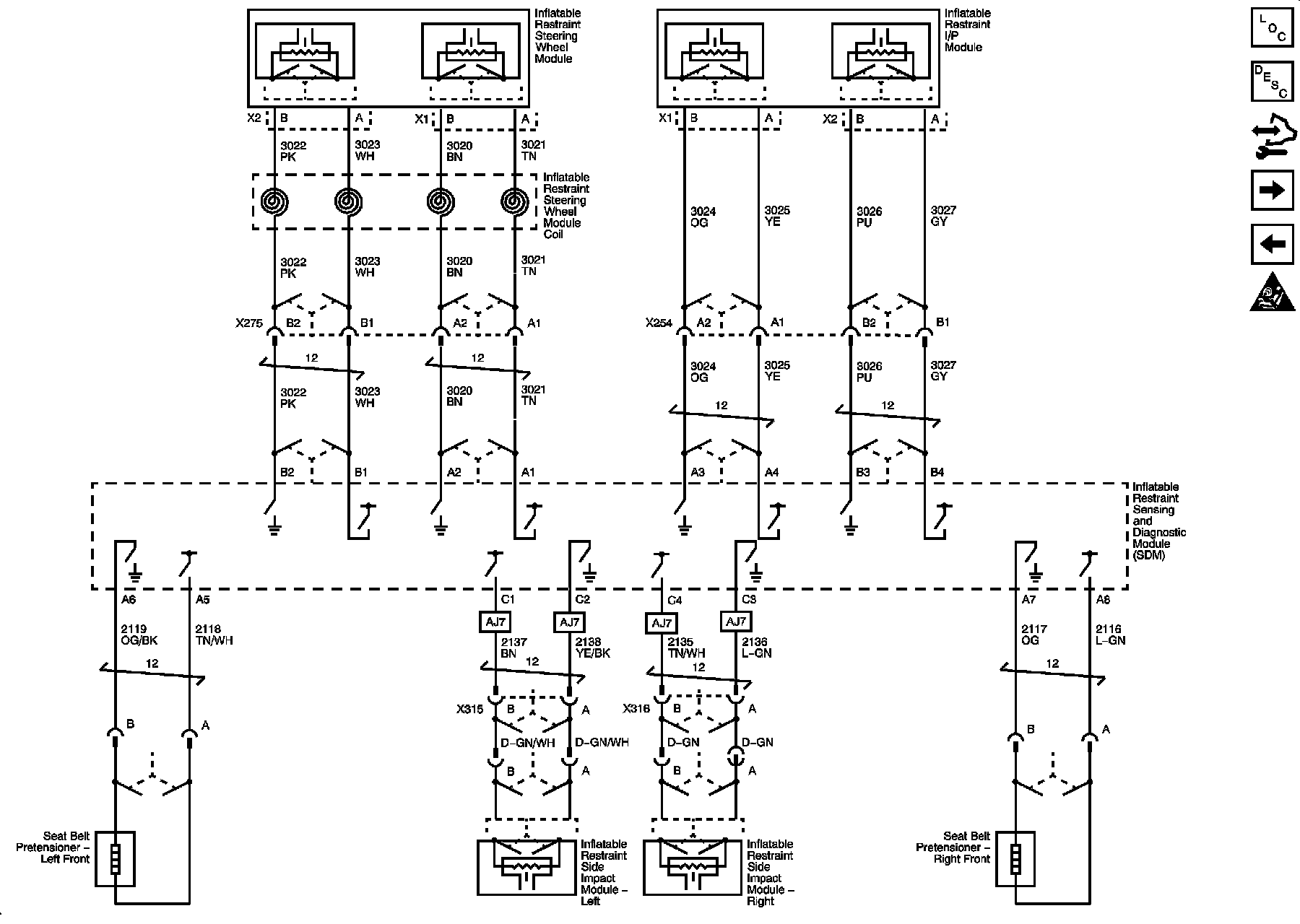

Impact Modules and Pretensioners

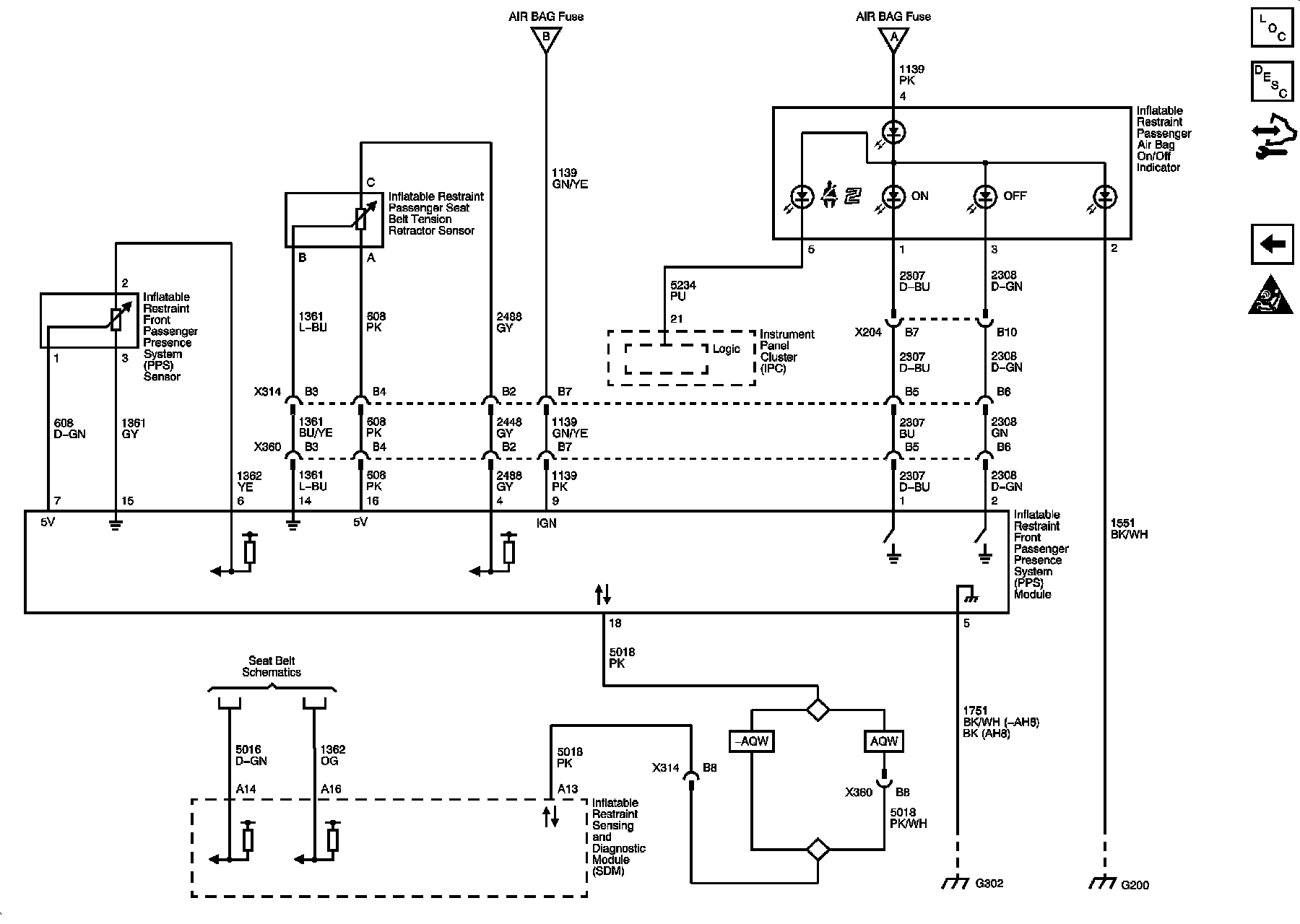

Occupant Sensing (-AQW)

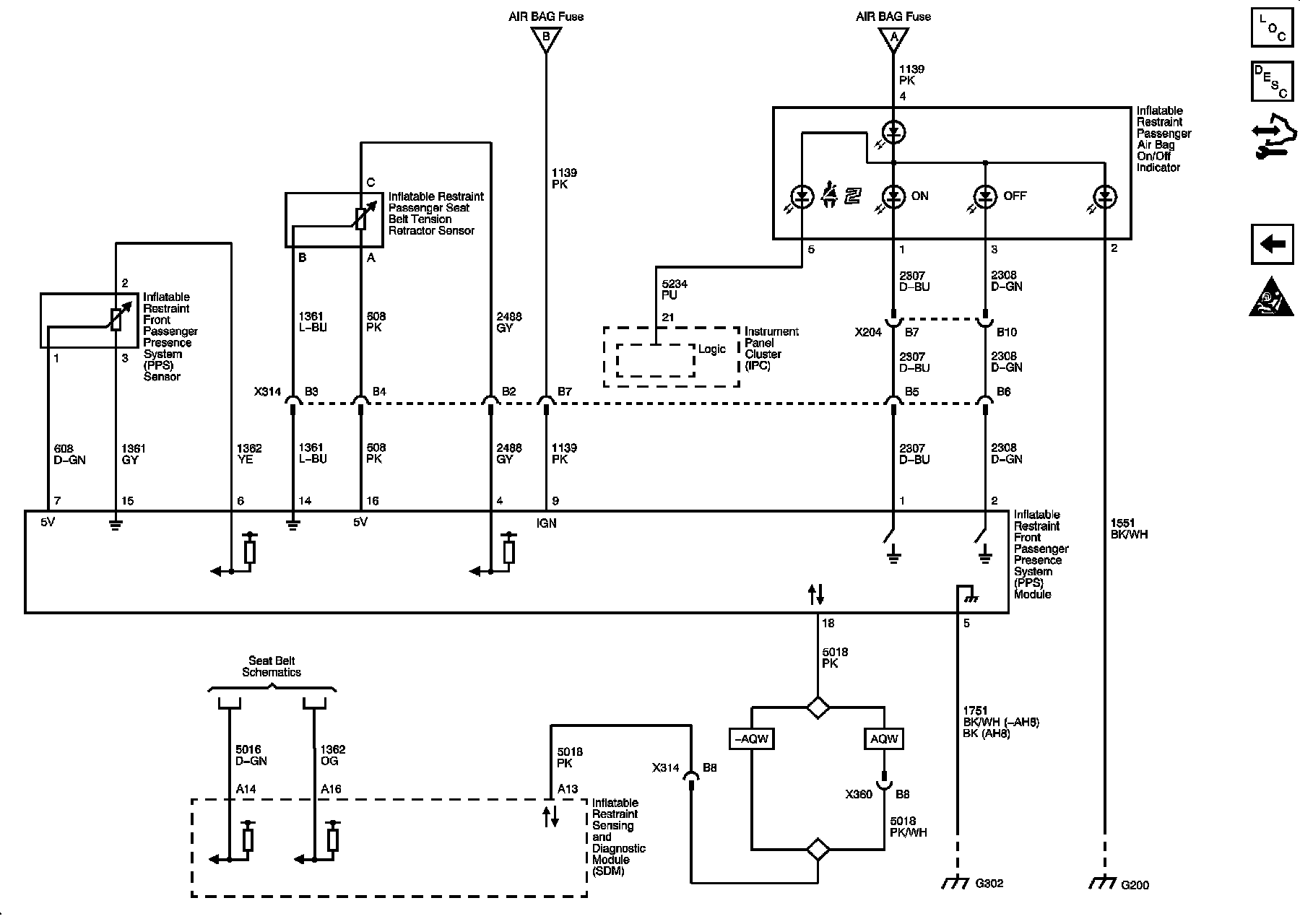

Occupant Sensing (AQW)
