Sliding Door Diagrams

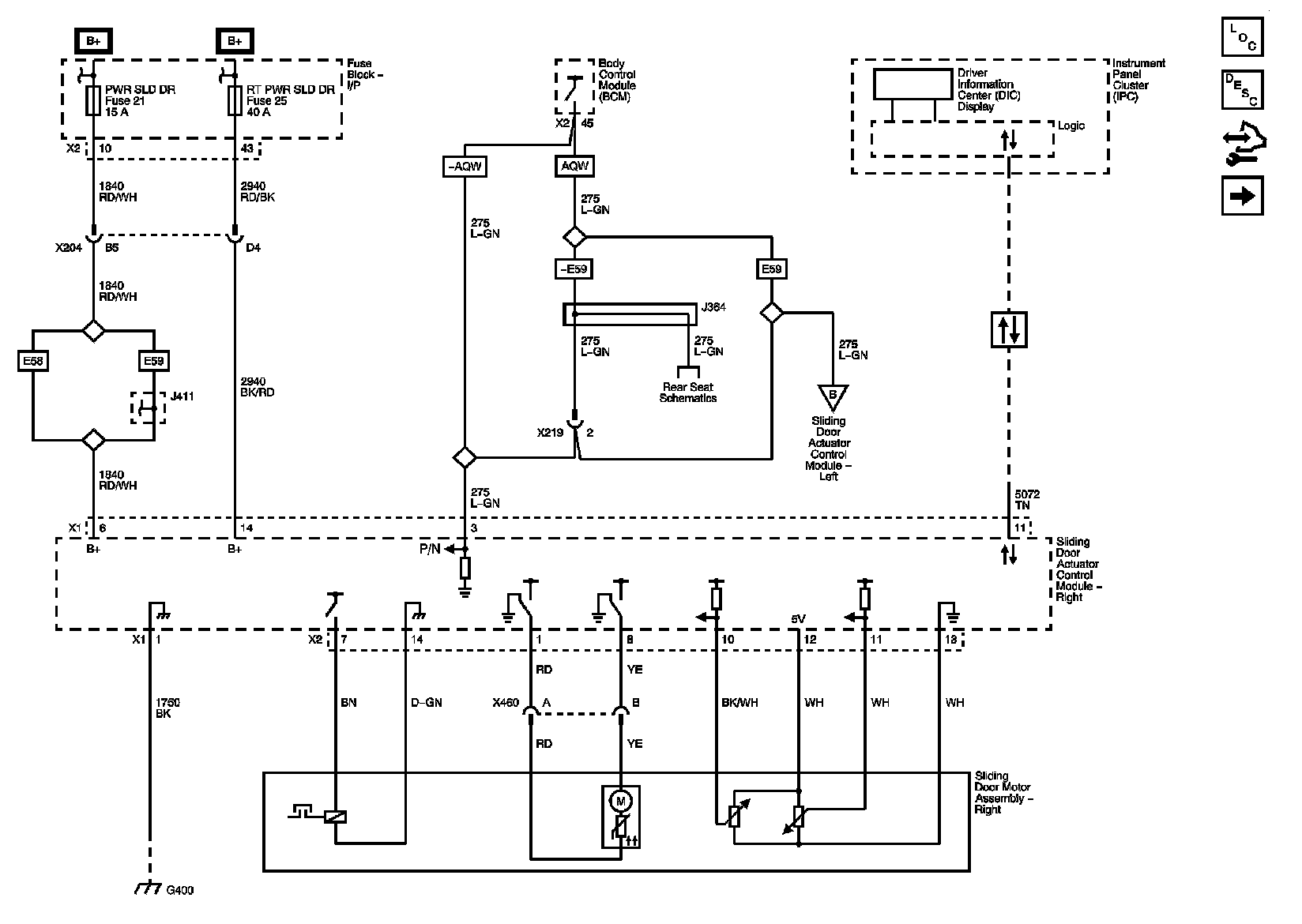

Right Door Motor

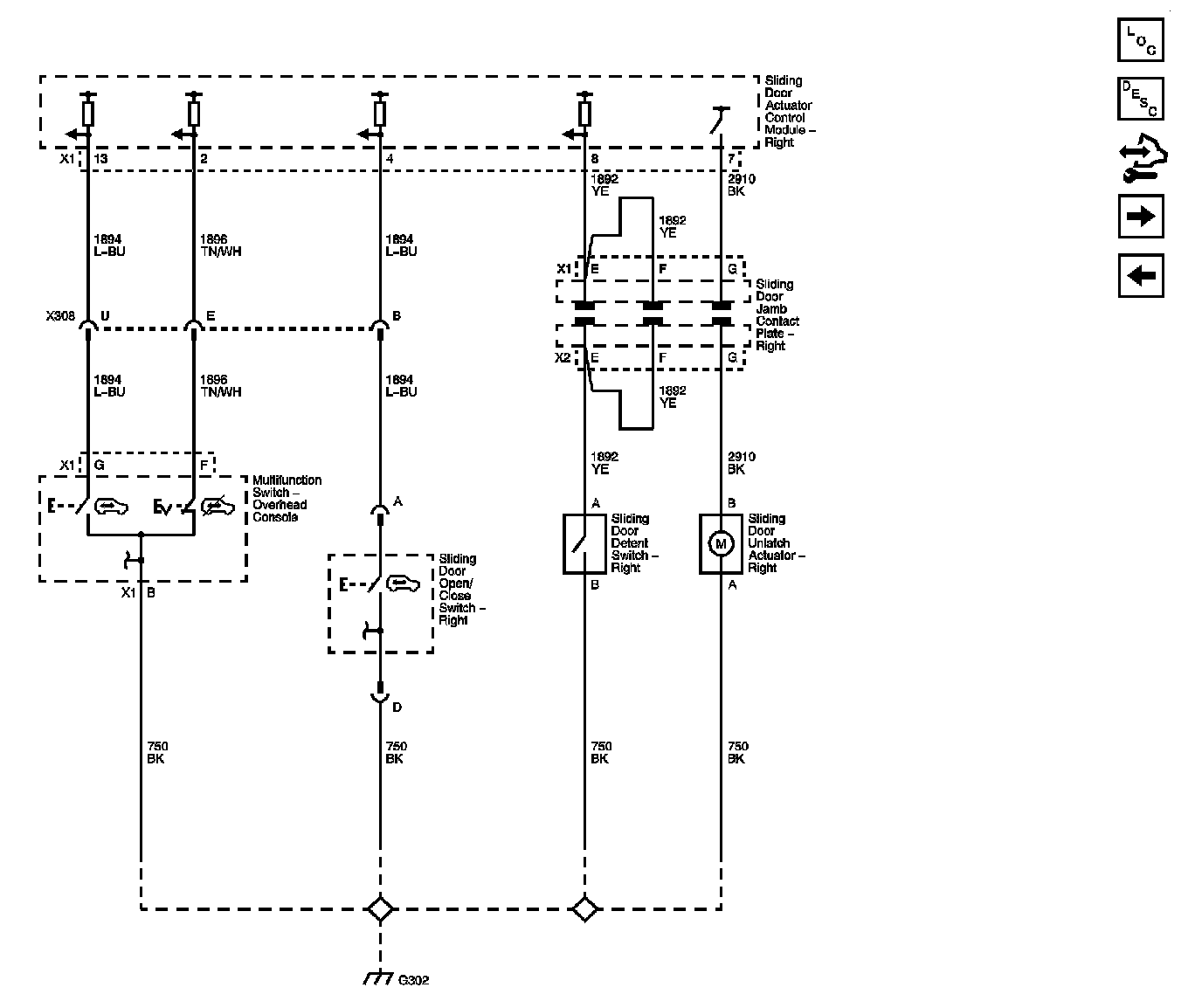

Right Door Controls






Left Door Motor






Left Door Controls
