System Diagram
Engine Controls Schematics
Module Power, Ground, Serial Data, and MIL

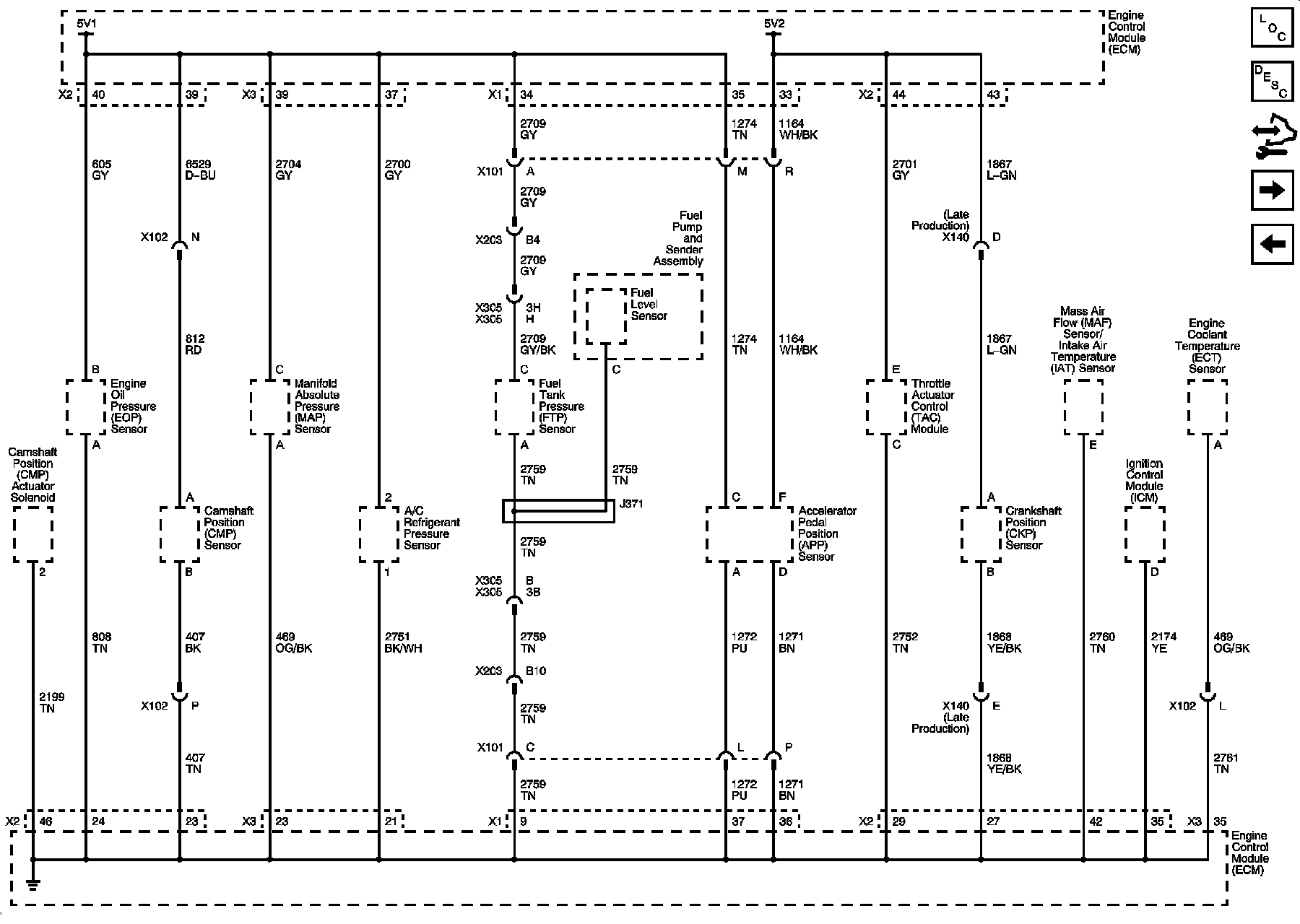

Engine Data Sensors - 5-Volt and Low Reference

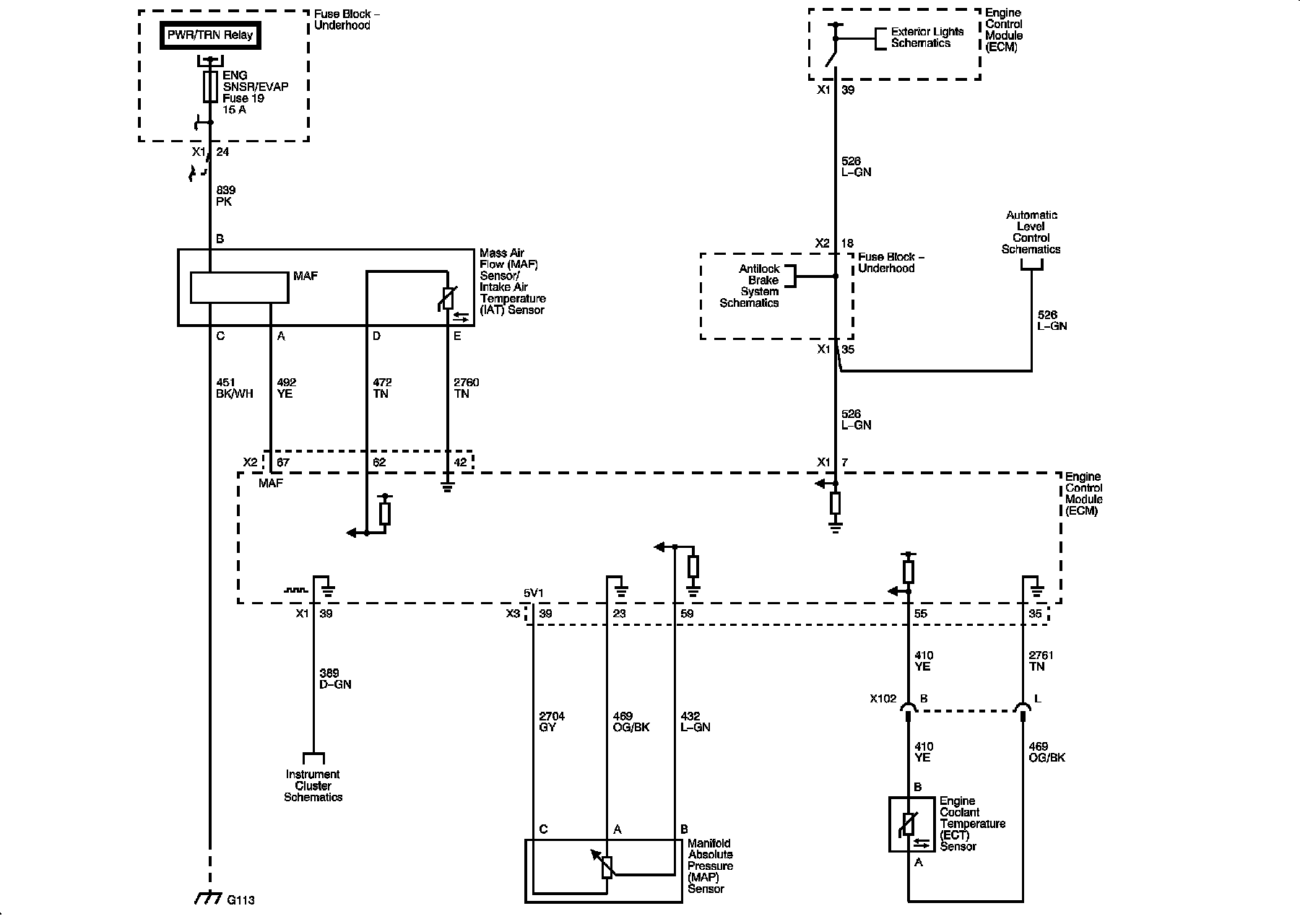

Engine Data Sensors - Pressure, Temperature, Extended Brake Travel, and VSS
Engine Data Sensors - Oxygen Sensors
Engine Data Sensors - Throttle Actuator Controls
Ignition Controls and Camshaft Control

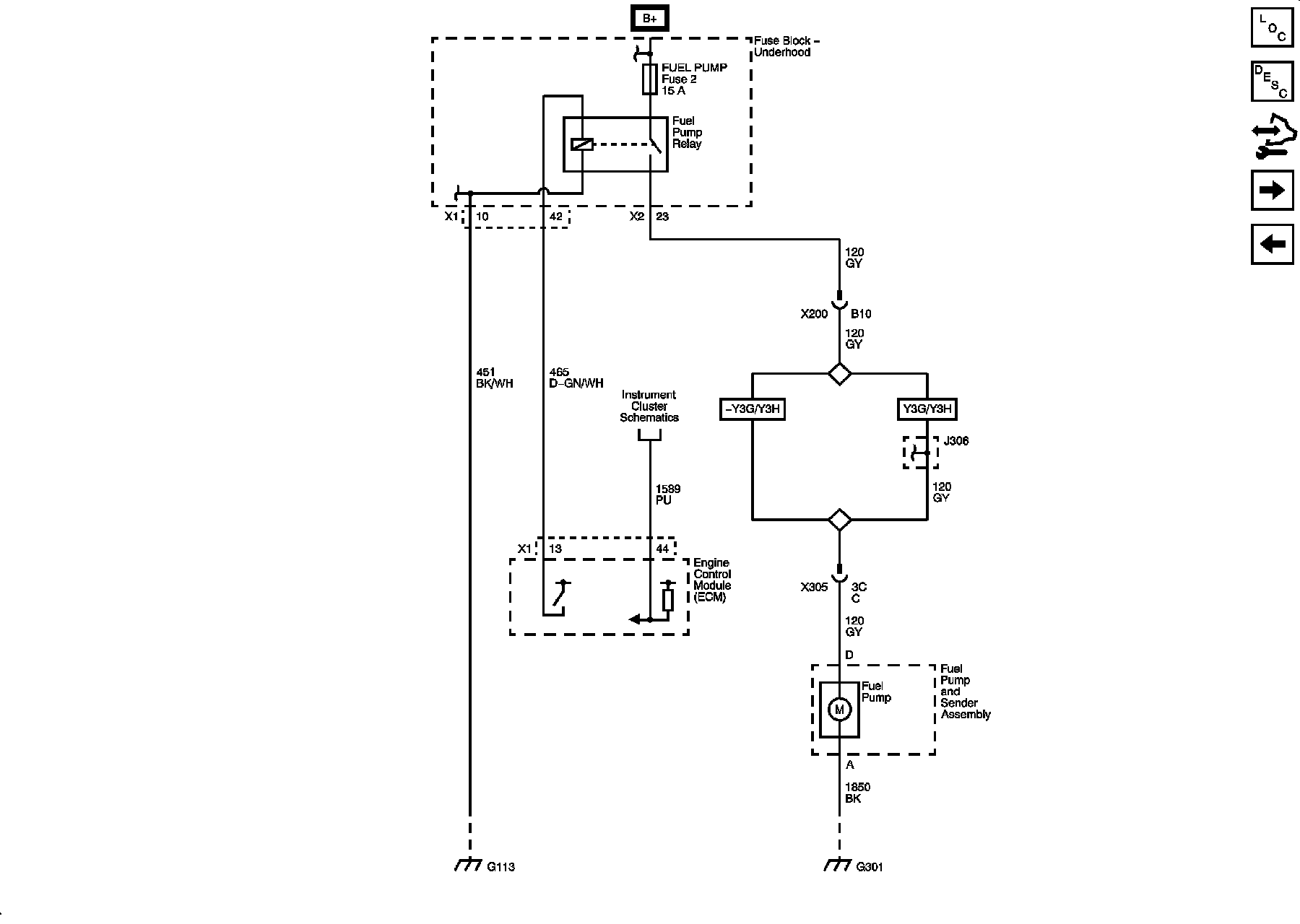

Fuel Controls - Fuel Pump Controls

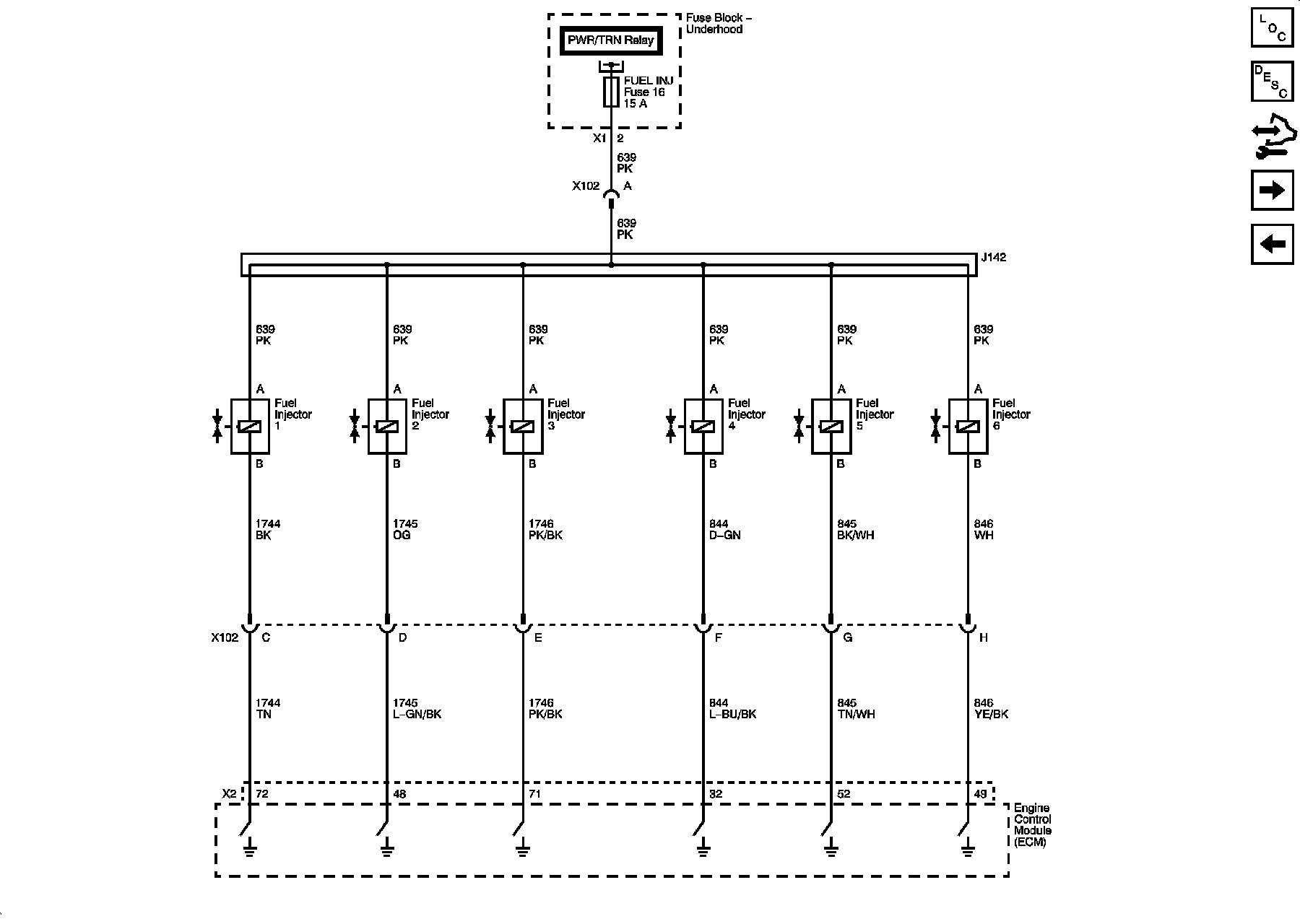

Fuel Controls - Fuel Injectors

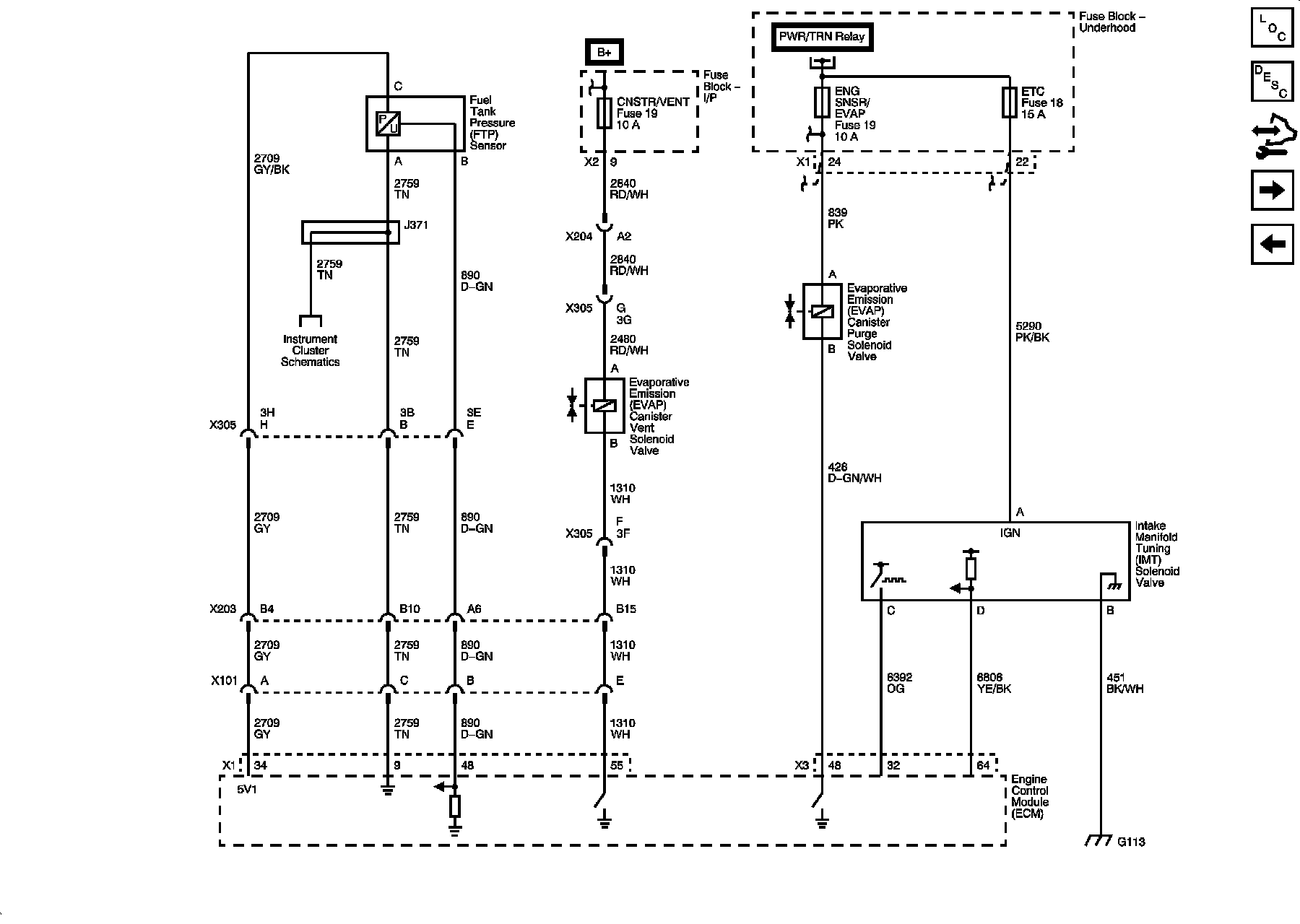

Fuel Controls - EVAP Controls and Manifold Tuning
Controlled/Monitored Subsystem References
