Body Harness Components

Harness Routing Views

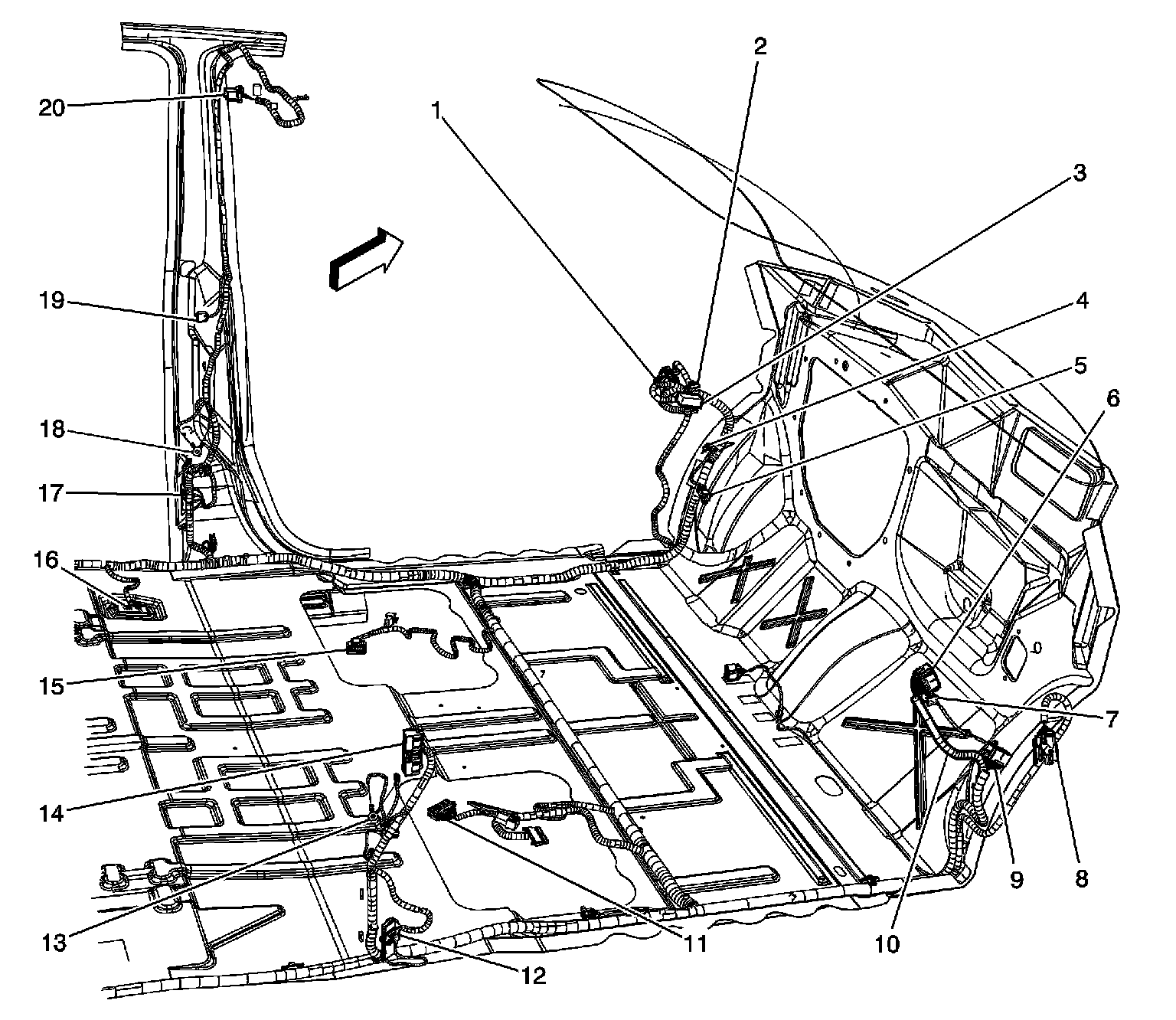

Body Harness Components 1 of 3




1 - X301 Driver Door Harness to Body Harness
2 - X203 Body Harness to Instrument Panel Harness
3 - Body Control Module (BCM) X2
4 - Park Brake Switch
5 - Inflatable Restraint Steering Wheel Module Coil X1
6 - X200 Body Harness to Instrument Panel Harness
7 - X254 Inflatable Restraint Instrument Panel Module Jumper Harness to Body Harness
8 - X302 Passenger Door Harness to Body Harness
9 - X204 Body Harness to I/P Harness
10 - J306 (Y3G or Y3H)
11 - X314 Body Harness to Passenger Seat Harness
12 - Door Contact Plate - Right X1
13 - G302
14 - X308 Body Harness to Headliner Harness
15 - X313 Body Harness to Driver Seat Harness
16 - X305 Fuel Tank Harness and Rear Cross-Car Jumper Harness to Body Harness
17 - Door Contact Plate - Left X1
18 - G301
19 - Sliding Door Open/Close Switch - Left (E59) Connector
20 - Digital Video Disc (DVD) Player X1 (U56)

Body Harness Components 2 of 3




1 - X479 Body Harness to Tail Lamp Harness
2 - G401
3 - X405 Body Harness to Automatic Level Control Jumper Harness (G67)
4 - Auxiliary HVAC Connectors
5 - Sliding Door Jamb Switch - Right
6 - Rear Object Sensor Control Module (UD7)
7 - Rear Parking Assist (RPA) Diagnostic Connector (UD7)
8 - Right Sliding Door Module (RSDM) (E58)
9 - X440 RPA Harness (UD7) to Body Harness
10 - X426 Body Harness to Accessory Power Outlet Jumper Harness (KC7)
11 - X480 Body Harness to Right Tail Lamp Harness
12 - G400
13 - X420 RPA Display Jumper Harness (UD7) to Body Harness
14 - X400 Liftgate Harness to Body Harness
15 - X402 Liftgate Harness to Body Harness
