Headliner Harness Components

Harness Routing Views

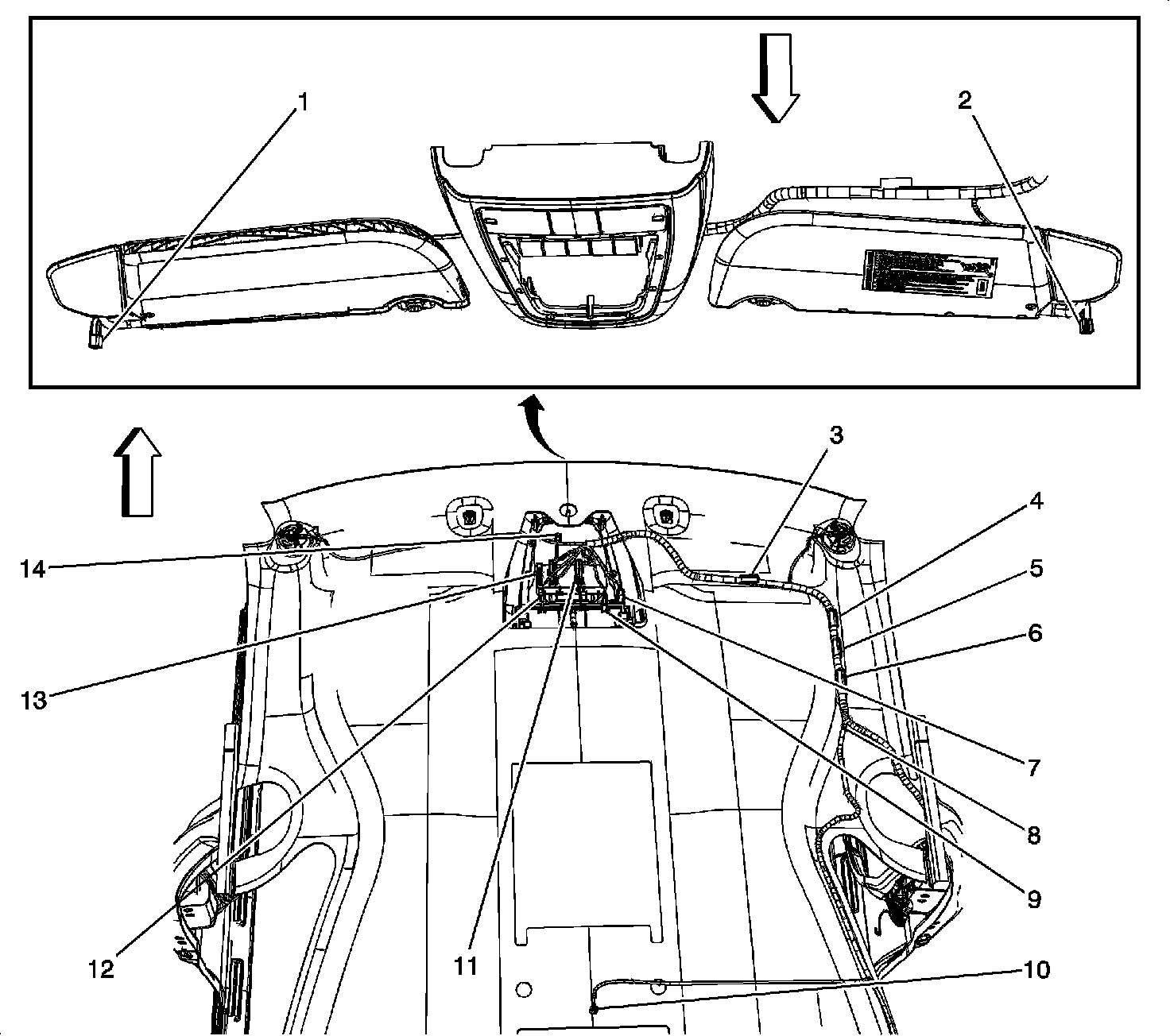

Headliner Harness Components 1 of 2




1 - Vanity Mirror Lamp - Left (DH6) Connector
2 - Vanity Mirror Lamp - Right (DH6) Connector
3 - J388
4 - J386
5 - J384
6 - J382
7 - Onstar Button Assembly (UE1)
8 - J380
9 - Cellular Microphone (UE1)
10 - Courtesy/Reading Lamp - Center Connector
11 - Multifunction Overhead Console Switch X2
12 - Multifunction Overhead Console Switch X1
13 - Garage Door Opener (UG1)
14 - Courtesy/Reading Lamp - Front Connector

Headliner Harness Components 2 of 2




1 - Right B-Pillar
2 - Sliding Door Open/Close Switch - Right (E58) Connector
3 - X308 Body Harness to Headliner Harness
4 - G302
5 - Courtesy/Reading Lamp - Center
6 - Cargo Lamp
