Air Conditioning (A/C) Diagnostics - Pressure Zone A

Air Conditioning (A/C) Diagnostics - Pressure Zone A

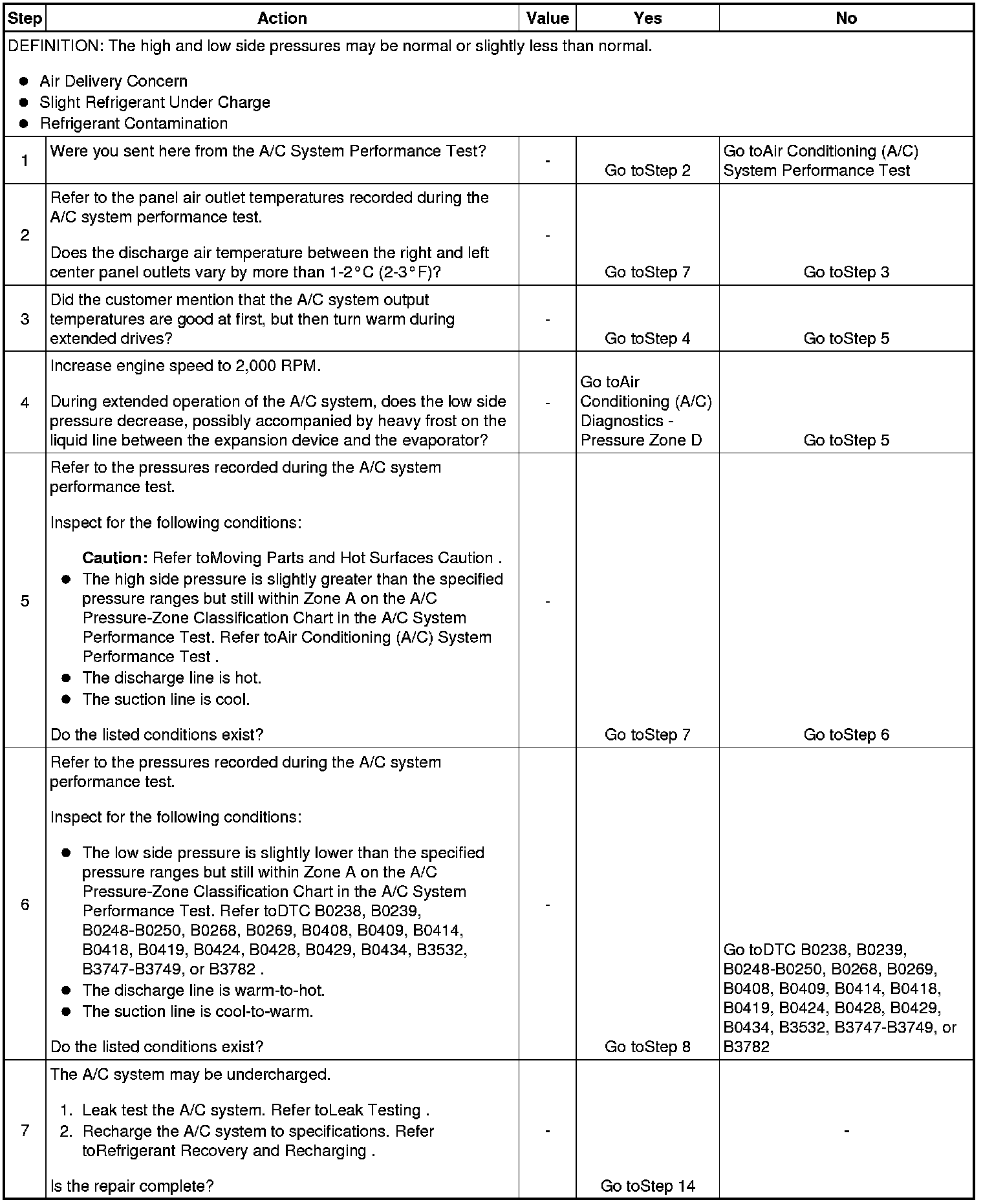

Step 1-7:

Step 8-13:

Step 14-15:
