Horn: Service and Repair

Horn Replacement

Removal Procedure

1. Remove the headlamps. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement (Service and Repair).




2. Disconnect the horn electrical connector.

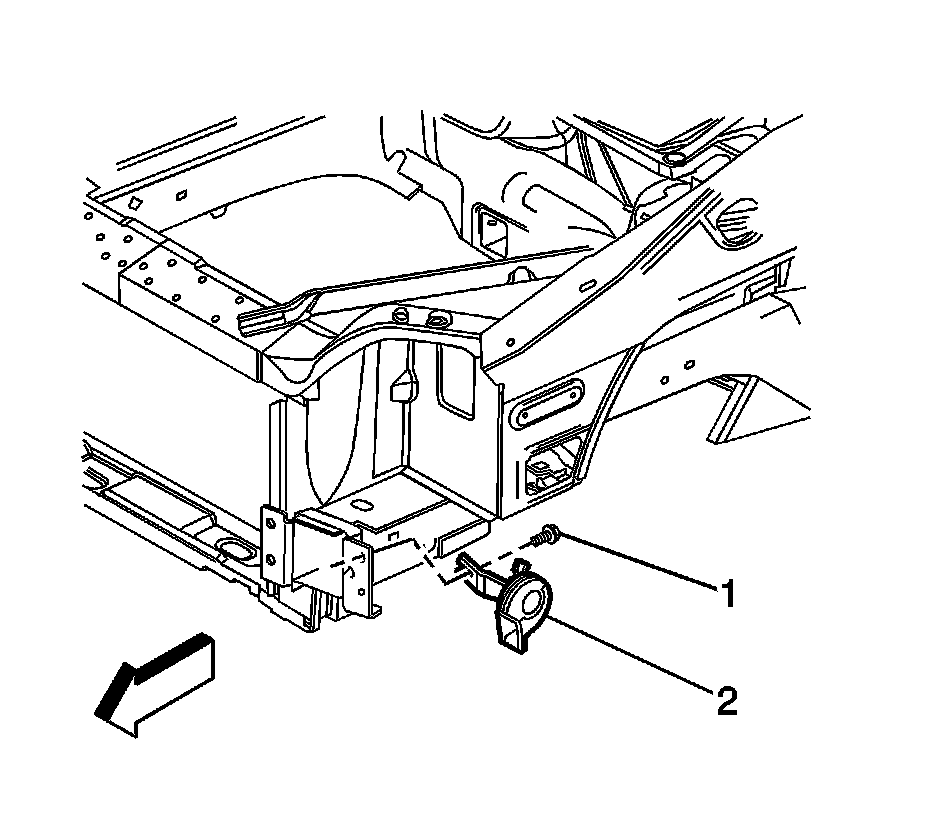

3. Remove the horn bracket bolt (1) to impact bar.
4. Remove the horn (2) from the front impact bar.

Installation Procedure




1. Position the horn (2) to the front impact bar.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the horn bracket bolt (1).

Tighten the bolt to 15 N.m (11 lb ft).

3. Connect the horn electrical connector.
4. Install the headlamps. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement (Service and Repair).
